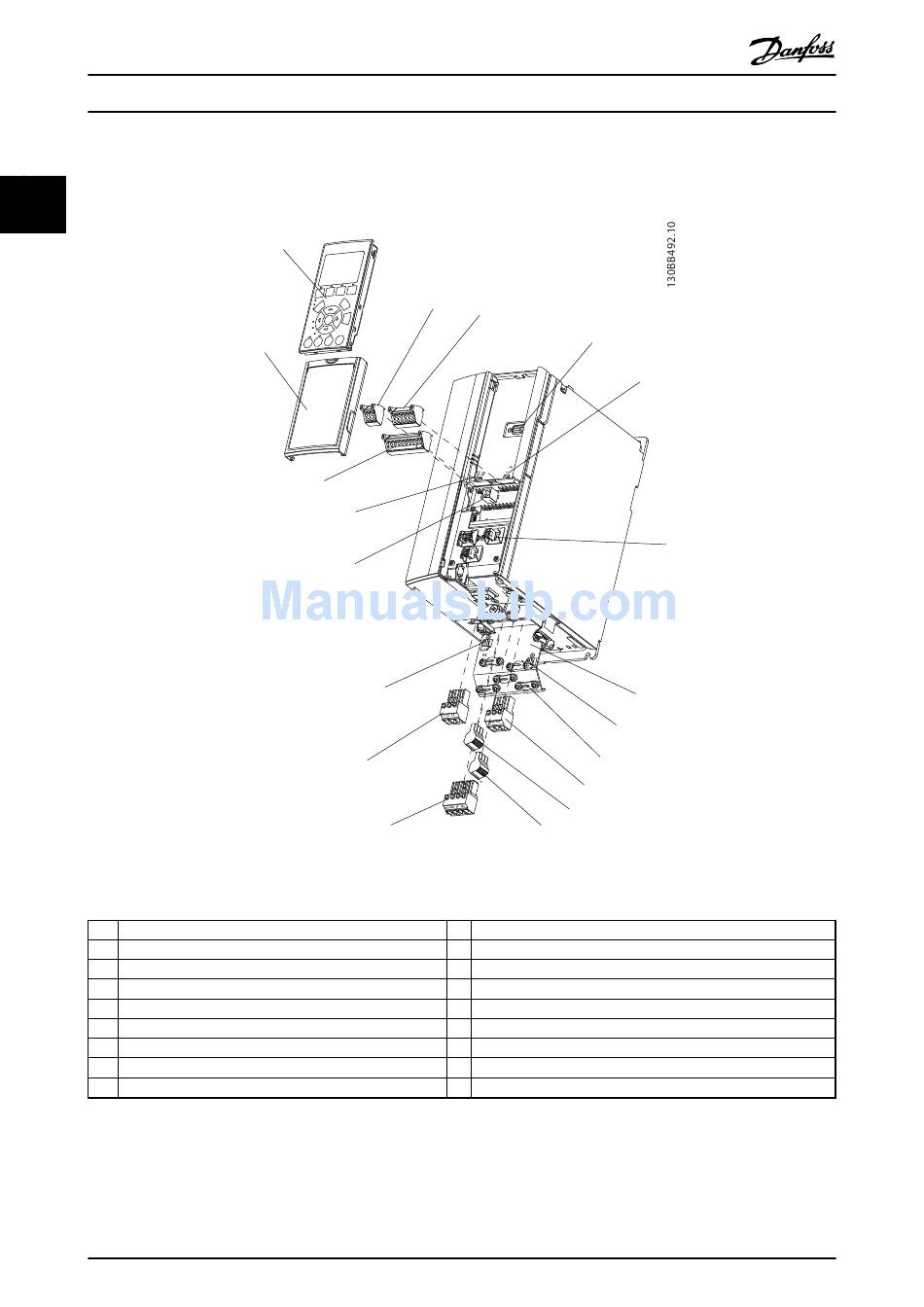

Illustration 1.1 Exploded View A Size
1 LCP
2 RS-485 serial bus connector (+68, -69)
3 Analog I/O connector
4 LCP input plug
5 Analog switches (A53), (A54)
6 Cable strain relief / PE ground
7 Decoupling plate
8 Grounding clamp (PE)
9 Shielded cable grounding clamp and strain relief
Table 1.1
4
®
VLT AQUA Drive
Operating Instructions
1
18
17
16
15
8
14
13
®
MG.20.M8.02 - VLT
2
3
4
10
11
12
10 Motor output terminals 96 (U), 97 (V), 98 (W)
11 Relay 1 (01, 02, 03)
12 Relay 2 (04, 05, 06)
13 Brake (-81, +82) and load sharing (-88, +89) terminals
14 Mains input terminals 91 (L1), 92 (L2), 93 (L3)
15 USB connector
16 Serial bus terminal switch
17 Digital I/O and 24 V power supply
18 Control cable cover plate
