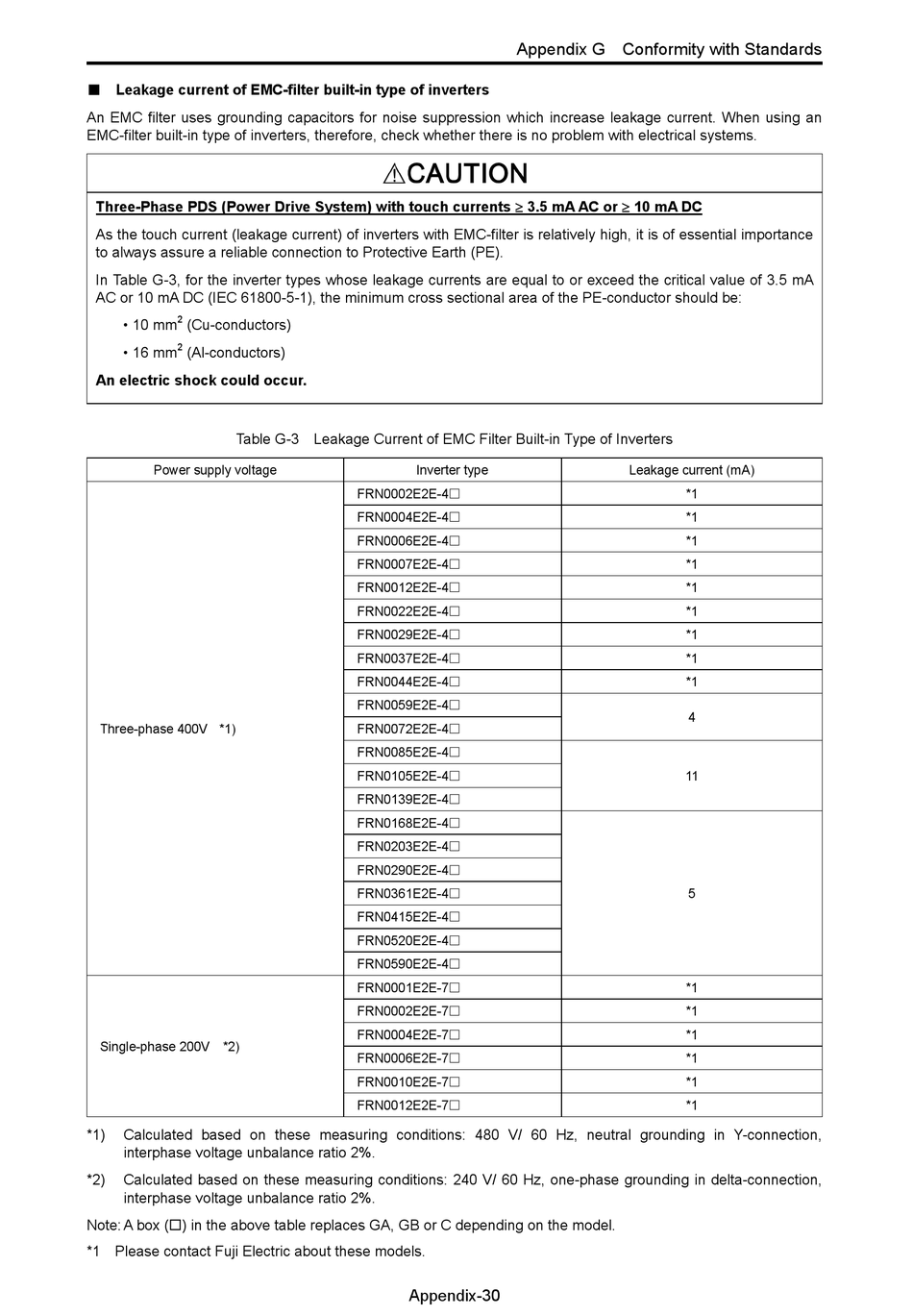

Fuji Electric FRENIC-Ace series User Manual page 770

■ Leakage current of EMC-filter built-in type of inverters
An EMC filter uses grounding capacitors for noise suppression which increase leakage current. When using an
EMC-filter built-in type of inverters, therefore, check whether there is no problem with electrical systems.
Three-Phase PDS (Power Drive System) with touch currents ≥ 3.5 mA AC or ≥ 10 mA DC
As the touch current (leakage current) of inverters with EMC-filter is relatively high, it is of essential importance
to always assure a reliable connection to Protective Earth (PE).
In Table G-3, for the inverter types whose leakage currents are equal to or exceed the critical value of 3.5 mA
AC or 10 mA DC (IEC 61800-5-1), the minimum cross sectional area of the PE-conductor should be:
2
• 10 mm (Cu-conductors)
2
• 16 mm (Al-conductors)
An electric shock could occur.
Table G-3 Leakage Current of EMC Filter Built-in Type of Inverters
Power supply voltage
Three-phase 400V *1)
Single-phase 200V *2)
*1) Calculated based on these measuring conditions: 480 V/ 60 Hz, neutral grounding in Y-connection,
interphase voltage unbalance ratio 2%.
*2) Calculated based on these measuring conditions: 240 V/ 60 Hz, one-phase grounding in delta-connection,
interphase voltage unbalance ratio 2%.
Note: A box () in the above table replaces GA, GB or C depending on the model.
*1 Please contact Fuji Electric about these models.
Appendix G Conformity with Standards
Inverter type
FRN0002E2E-4
FRN0004E2E-4
FRN0006E2E-4
FRN0007E2E-4
FRN0012E2E-4
FRN0022E2E-4
FRN0029E2E-4
FRN0037E2E-4
FRN0044E2E-4
FRN0059E2E-4
FRN0072E2E-4
FRN0085E2E-4
FRN0105E2E-4
FRN0139E2E-4
FRN0168E2E-4
FRN0203E2E-4
FRN0290E2E-4
FRN0361E2E-4
FRN0415E2E-4
FRN0520E2E-4
FRN0590E2E-4
FRN0001E2E-7
FRN0002E2E-7
FRN0004E2E-7
FRN0006E2E-7
FRN0010E2E-7
FRN0012E2E-7
Appendix-30
Leakage current (mA)
*1
*1
*1
*1
*1
*1
*1
*1
*1
4
11
5
*1
*1
*1
*1
*1
*1
