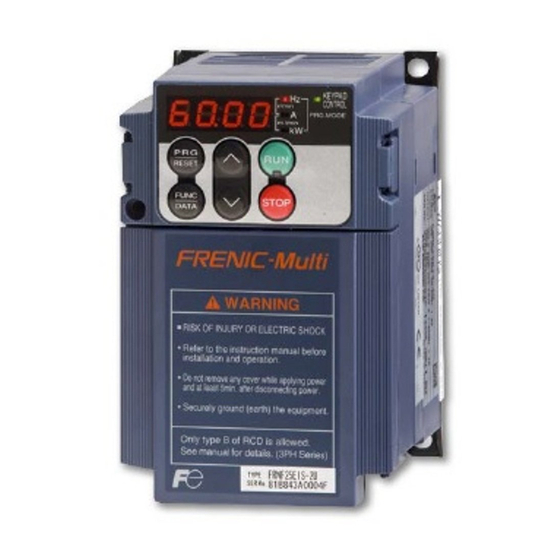

Fuji Electric FRENIC-Multi Instruction Manual

Fuji Electric FRENIC-Multi Instruction Manual

Supplement to functional safety inverter
Hide thumbs Also See for FRENIC-Multi:

Advertisement

セーフティ対応インバータ追補版
Supplement to Functional Safety Inverter
本取扱説明書は, セーフティ対応インバータ FRENIC-Multi (形式:-JSF1□) 用の追補冊子であり,
FRENIC-Multi 取扱説明書:INR-SI47-1058□に対しての追加,変更箇所のみを記載しています。
その他の説明については,FRENIC-Multi 取扱説明書:INR-SI47-1058□をご参照ください。
本冊子は、セーフティ対応インバータ FRENIC-Multi(形式:-JSF1□)のためのオリジナルの
取扱説明書です。
This manual, a supplement to the FRENIC-Multi Instruction Manual (INR-SI47-1094□), contains
descriptions that exclusively apply to the functional safety inverter FRENIC-Multi (Inverter type:
FRN□□□E1□-□JSF1□). For other descriptions, refer to the FRENIC-Multi Instruction Manual
(INR-SI47-1094□).
This manual is the original instruction manual for the functional safety inverter FRENIC-Multi
(Inverter type: FRN□□□E1□-□JSF1□).
セーフティ対応インバータ FRENIC-Multi(形式:-JSF1□)は,欧州の安全規格 EN61800-5-2 SIL2
と EN ISO13849-1 PL=d Cat.3 に適合できます (セーフトルクオフ : STO) 。 欧州の安全規格 EN61800-5-2
SIL2 と EN ISO13849-1 PL=d Cat.3 に適合するためには,本取扱説明書,FRENIC-Multi 取扱説明書:
INR-SI47-1058□の 10.3 章「EMC 規格の適合について」および 10.5 章「欧州での低電圧指令の適
合について」を併せてご参照ください。
The functional safety inverter FRENIC-Multi (Inverter type: FRN□□□E1□-□JSF1□) is compliant with
European Safety Standard: EN61800-5-2 SIL2 and EN ISO13849-1 PL=d Cat. 3 (Safe Torque
off:STO). To comply with the requirements, refer to the original manual, Chapter 10, Section 10.3
"Compliance with EMC Standards" and Section 10.5 "Compliance with the Low Voltage Directive in
the EU" in conjunction with this manual.
セーフティ対応インバータ FRENIC-Multi
Fuji Electric Co., Ltd.
取扱説明書 / Instruction Manual
Functional Safety Inverter FRENIC-Multi
FRN□□□E1□-□JSF1□
INR-SI47-1489b-JE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRENIC-Multi and is the answer not in the manual?

Questions and answers

Summary of Contents for Fuji Electric FRENIC-Multi

  • Page 1 FRENIC-Multi (Inverter type: FRN□□□E1□-□JSF1□). For other descriptions, refer to the FRENIC-Multi Instruction Manual (INR-SI47-1094□). This manual is the original instruction manual for the functional safety inverter FRENIC-Multi (Inverter type: FRN□□□E1□-□JSF1□). セーフティ対応インバータ FRENIC-Multi(形式:-JSF1□)は,欧州の安全規格 EN61800-5-2 SIL2 と...
  • Page 2 標準品の FRENIC-Multi からの変更点を以下に示します。 The following are the changes from the FRENIC-Multi for standard products. 標準品 セーフティ対応品 Standard products Functional Safety products 形式 形式 FRN□□□E1□-□□ FRN□□□E1□-□JSF1□ Type Type 端子名称 端子名称 機能/Function 機能/Function Symbol Symbol イネーブル入力1 SOURCE 入力固定 ⇒ [EN1] Enable input 1 Exclusive to SOURCE mode デジタル入力5...
  • Page 3 欧州での低電圧指令への適合について CE マーク付きのインバータは,以下の事項に従って設置することにより,欧州での低電圧指令 2006/95/EC に適合します。 1. 接地端子 G を必ず接地し, 漏電遮断器 * RCD (Residual-current-operated protective device) /ELCB(Earth Leakage Circuit Breaker)だけで感電保護を行わないでください。接地線は, 電源線以上のサイズの電線を使用してください。 * 過電流保護機能付き 2. インバータ破損に伴う高電圧や事故の危険性から保護するため,電源側には以下の表に従 った仕様のヒューズを設置してください。 ・遮断容量 10kA 以上, 定格電圧 500V 以上 標準適用 インバータ ヒューズ定格 電源系列 モータ(kW) 形式 FRN0.1E1■-2JSF1 3(IEC60269-2) FRN0.2E1■-2JSF1 6(IEC60269-2) FRN0.4E1■-2JSF1 10(IEC60269-2)
  • Page 4 欧州での低電圧指令への適合について(続き) 5. 人が活電部に触れて感電するのを防止するために,インバータ,交流リアクトル(ACR)ま たは直流リアクトル(DCR),入力フィルタまたは出力フィルタを IP2X 以上の盤内に設置 してください。盤に人が容易に触れられる場合は,盤の上面を IP4X 以上としてください。 6. 漏電遮断器(RCD/ELCB)を直接または間接接触に対する感電保護のために使用する場合, 3相 200V および3相 400V は,必ず,タイプBの漏電遮断器(RCD/ELCB)をインバータの 入力側(1次側)に設置してください。単相 200V のインバータについてはタイプAの漏電 遮断器を使用してください。漏電遮断器を使用しない場合は,インバータを周囲から二重 絶縁または強化絶縁するか,トランスで電源と絶縁してください。 この製品は保護接地導体に直流電流が流れる可能性があります。残留電流デバイス(RCD) または漏電流監視デバイス(RCM)が、直接または間接的な接触の場合の保護のために使用 されている場合は、RCD または RCM のタイプ B のみが、この製品の電源側に使用すること を許可されています。 保護接地導体の最小サイズは、4 ページの 15 項に記載の値を使用してください。 7. EMC フィルタが内蔵されていないインバータを欧州での EMC 指令に適合させるためには, インバータの外部に適切な EMC フィルタを接続し,適切な方法で設置してください。イン バータ設置後の機械全体が...
  • Page 5 欧州での低電圧指令への適合について(続き) 14. インバータは、以下のように絶縁されています。保護クラスは、クラス 1 機器です。 過電圧カテゴリ 電源回路と FRN0.1 to 3.7E1■-2JSF1 強化絶縁 制御回路間 FRN0.1 to 2.2E1■-7JSF1□ 基礎絶縁 * (入出力低 FRN0.4 to 3.7E1■-4JSF1 電圧回路を 基礎絶縁 * FRN0.4 to 4.0E1■-4JSF1E 含む) FRN5.5 to 15E1■-2JSF1 強化絶縁 強化絶縁 FRN5.5 to 15E1■-4JSF1□ 電源回路と FRN0.1 to 3.7E1■-2JSF1 保護接地間...
  • Page 6 欧州での低電圧指令への適合について(続き) IEC60364-5-52 に記載の電線を使用してください。 2 推 奨 電線サ イ ズ (mm 配 線 用遮 断 器 ( MCCB) 主 電源 入 力 *2 直流 また は [L1/R,L2/S,L3/T] リ ア ク 漏 電遮 断 器 標準 [L1/L, L2/N] イン ト ル・ 電 (...
  • Page 7 第1章 ご使用の前に 1.1 現品の確認 TYPE : インバータ形式 第2章 据付けと配線 2.3 配線 2.3.2 端子配置図とねじ仕様 (3) 制御回路端子(欧州安全規格 EN ISO13849-1 PL=d 対応形)...
  • Page 8 2.3.6 制御回路端子の配線 セーフティ対応インバータ FRENIC-Multi シリーズには,デジタル入力端子 X5 はありません。 機能コード E05(端子 X5(機能選択))には“1007”が設定されており,変更できません。 表 2.10 制御回路端子の機能説明 (補足) 端子 区分 端子名称 機能説明 記号 イネーブル (1) 端子 EN1-PLC 間または端子 EN2-PLC 間が OFF の時, インバータの出 力トランジスタの動作を停止する(セーフトルクオフ:STO) 。 入力 (2) 端子 EN1,EN2 の入力モードはソース固定です。 シンクへ切り換える ことはできません。 (3) EN1 または EN2 のどちらか一方だけの入力が OFF の場合はアラーム...
  • Page 9 第3章 タッチパネルから操作する 3.4.5 入出力信号状態をチェックする 「I/O チェック」 制御回路端子の入出力表示 制御回路端子の入出力信号状態は,端子台の入出力状況を「LED 各セグメントの点灯/消灯による 表示」と「16 進数表示」の2通りで表示します。 LED 各セグメントの点灯/消灯による表示 表 3.17 と下図に示すように,LED1 のセグメント a~g は,デジタル入力端子(FWD,REV,X1~X4, EN1, EN2)が ON の時点灯し,OFF の時に消灯します。LED3 のセグメント a,b は,出力端子 Y1, Y2-CMY 間が閉じた時に点灯し,開いた時に消灯します。LED4 のセグメント a は端子 30A/B/C 表示 用です。端子 30C が端子 30A と短絡した時に LED4 のセグメント a が点灯し,開放した時に消灯し ます。...
  • Page 10 表 3.18 7 セグメント LED による 16 進数表示 LED 番号 LED4 LED3 LED2 LED1 ビット 入力端子 (RST) (XR) (XF) REV FWD 30A/ 出力端子 2進数 16 進数 モニタ ―: 対応制御端子なし * (XF),(XR),(RST)は通信用です。下記の 通信時制御信号の入出力表示を参照してください。 通信時制御信号の入出力表示 通信時制御信号の入出力表示は,RS-485 および各種オプションの通信から指令される入力(通信 専用機能コード S06 による)を「LED 各セグメントの点灯/消灯による表示」と「16 進数表示」の 2通りで表示します。...
  • Page 11 第5章 機能コード 5.1 機能コード一覧表 E コード:Extension Terminal Functions(端子機能) 機能 キザ 運転 工場 単 データ 関連 コー 名 称 設定可能範囲 ミ 中 出荷 位 コピー ページ ド 幅 変更 設定値 端子 X5 (1007): フリーラン指令『BX』 - - × ○ 1007 5-35 端子 Y1 (機能選択) (1101): イネーブル回路異常『DECF』...
  • Page 12 第6章 故障かな?と思ったら… 6.3 アラームコードの表示がある場合 ■アラームコード (追加) アラーム アラーム名称 現象・チェックと対策 コード (1) インタフェース基板の接触不良 インタフェース基板が本体にしっかりと取り付けられていることを 確認する。 (電源再投入によりアラームは解除されます) (2) イネーブル回路論理異常 セーフティスイッチなどからの出力が一致していることを確認す イネーブル る。 (EN1/EN2 = High/High or Low/Low) 回路故障 (電源再投入によりアラームは解除されます) (3) イネーブル回路(安全停止回路)の故障(単一故障)を検出した。 インバータの異常のため,弊社までご連絡ください。 (アラームは解除できません) ※検出できない故障もあります (EN ISO13849-1 PL=d Cat.3 に準拠)。...
  • Page 13 第8章 仕様 8.4 端子仕様 8.4.3 外部信号運転の場合 (注1) P(+) (CM) (THR) (注4) (注2) MCCB 電源 または 主回路部 (注3) (注9) ELCB 3相 P(+) N(-) FUSE 200~240V L1/R 50/60Hz モータ または L2/S 3相 380~480V L3/T 50/60Hz L1/L 単相 200~240V L2/N 50/60Hz 接地端子 接地端子 制御回路部...
  • Page 14 接続上の注意点 注 1)直流リアクトル(DCR) (オプション)を接続する場合は,端子 P1-P(+)間の短絡バーを はずしてから接続してください。 注 2)インバータの入力側(1 次側)には配線を保護するため,各インバータに推奨された配線用 遮断器(MCCB)または漏電遮断器(ELCB) (過電流保護機能付き)を設置してください。推奨 容量以上の遮断器は使用しないでください。 注 3)MCCB または ELCB とは別に電源からインバータを切り離す場合に使用しますので,必要性に 合わせて各インバータに推奨された電磁接触器(MC)を設置してください。なお,MC やソレ ノイドなどのコイルをインバータ近くに設置する場合は,並列にサージアブソーバを接続し てください。 注 4) 「THR」機能は,端子 X1~X4,FWD または,REV(機能コード E01~E04,E98 または E99)のい ずれかにデータ”9”(外部アラーム)を割り付けることで使用できます。 注 5) 端子 12-11 間に電圧信号 (0~+10Vdc または 0~+5Vdc) を入力する代わりに, 端子 13, 12, 11 間に周波数設定器(外部ボリューム)を接続し,設定周波数を設定することができます。...
  • Page 15 第10章 規格対応について 10.2 欧州規格の適合について 当社製品に表示されている CE マークは,EMC 指令 2004/108/EC,低電圧指令 2006/95/EC, 機械指令 2006/42/EC に関するものです。 適合規格 ベーシックタイプ EMC フィルタ内蔵タイプ EN61800-3 : 2004 Immunity : Second environment 富士専用フィルタによる * EMC 指令 (Industrial) Emission : Category C3 電気安全 EN61800-5-1: 2007 機能安全 EN61800-5-2:2007 SIL 2, EN ISO 13849-1:2008 停止機能...
  • Page 16 10.3 EMC規格の適合について 10.3.3 EMCフィルタ内蔵形およびEMC対応フィルタ(オプション)の漏れ電流について (追加) 漏れ電流が AC3.5mA 以上あるいは DC10mA 以上となる場合は,2 つの接地用端子(zG)を個別に両方とも 接地するか,または下記径以上の電線で確実に保護接地してください(IEC 61800-5-1)。 ・10mm (銅線) ・16mm (アルミ線) 漏れ電流については,FRENIC-Multi シリーズ取扱説明書 INR-SI47-1058□の“10.3.3 EMC フィルタ内蔵 形および EMC 対応フィルタ(オプション)の漏れ電流について”を参照ください。 感電のおそれあり 10.6 機能安全規格の適合について 10.6.1 一般 本インバータは端子EN1(イネーブル入力1)-端子PLC間,または端子EN2(イネーブル入力2)-端子PLC間 の接続をOFFにすることによって, インバータの出力トランジスタをハードウェア回路により停止し, モー タをフリーラン停止させます。この機能はEN60204-1に規定されているCat.0(制御されない停止)の安全 停止機能であり,機能安全規格の安全基準を満たしています。 従来,機能安全規格を満たす安全システムを構築する場合,インバータの外部に安全遮断装置が必要でし たが,本機能を使用することで外部の安全遮断装置は不要となります。 本インバータの出力遮断機能は,IEC61800-5-2 に定義されているセーフトルクオフ(STO)機...
  • Page 17 従来のインバータ 適合の安全遮断装置 電源 イネーブル入力 EN ISO13849-1 PL=d Cat. 3 以上 適合のセーフティスイッチなど リセット 非常停止 ボタン 図 10.6 従来のインバータの場合 FRENIC-Multi(FRN E1 - JSF1 ) EN ISO13849-1 PL=d Cat. 3 以上 出力トランジスタ 適合のセーフティリレーユニットなど 電源 リセット ゲート駆動回路 非常停止 ボタン *トランジスタ出力端子([Y1]-[CMY], 『DECF』(機能コードデータ=1101)など, 10.6.6 項参照。 )...
  • Page 18 10.6.2 機能安全規格への対応についての注意 1) 端子 EN1(イネーブル入力 1)および EN2(イネーブル入力 2)の配線方法 ・ 端子 EN1 および端子 EN2 と端子 PLC は,安全停止機能に関する配線を接続する端子です。これらの配線 が短絡しないよう十分に注意して配線作業を行ってください。 ・ 安全停止機能は,端子 EN1 または端子 EN2 に電流が流れなくなる事で動作します。端子 EN1 および端子 EN2 と PLC 間の ON/OFF は EN ISO13849-1 PL=d Cat.3 以上に適合したセーフティリレーなどのセーフテ ィコンポーネンツを使用して確実に遮断出来るようにしてください。 ・ 端子 EN1 および端子 EN2 と PLC と外部のセーフティコンポーネンツ間の配線は, 機械メーカ殿の責任に おいて,短絡などが発生しないという安全性の保証が必要となります。...
  • Page 19 10.6.3 EN ISO13849-1 PL=dについて 欧州規格 EN ISO13849-1 PL=d は機械装置の基本安全規格で,安全に対する必要用件に応じて Cat.(安全 カテゴリ)分類されています。Cat.3 は「単一故障で安全機能を損なわないよう冗長性を持たせた設計が されている」ことを意味します。Cat.と安全要求(要約)の関係は表 10.4 を参照してください。 (詳細は EN ISO13849-1 PL=d 本文を参照してください。 ) 表 10.4 Cat. 要求事項(要約) システムの挙動 SRP/CS及び/又は保護設備, 並びにその構成部 障害発生が,安全機能の喪失をもたらすこ 品は,予期した影響に耐え得るように,関連 とがある。 する規格に従って設計,製造,選択,組立, 組み合わされなければならない。基本的安全 原理を使用しなければならない。 Cat.Bの要求事項を適用する。 十分に吟味され 障害発生が,安全機能の喪失をもたらすこ た構成部品及び十分に吟味された安全原理を とがあるが,発生確率は,Cat.B より低い。 用いなければならない。...
  • Page 20 10.6.4 セーフトルクオフ時のインバータ出力状態 本インバータは, 非常停止ボタンが ON され, EN1, EN2 入力が OFF されることでセーフトルクオフ (STO) 状態になります。 図 10.8 に停止中に非常停止ボタンを OFF とした時のインバータ出力状態のタイムチャートを示します。 非常停止ボタンが OFF され, EN1, EN2 入力が ON されることで, インバータは運転可能状態となります。 停止 停止 運転指令 運転 非常停止 ボタン EN1,EN2入力 セーフトルクオフ 運転指令 運転指令 セーフトルクオフ インバータ出力 運転状態 (STO) 待ち...
  • Page 21 10.6.5 論理不一致によるECFアラームの発生とインバータの出力状態 図 10.10 に EN1 と EN2 の入力タイミングのずれにより発生する ECF アラームとインバータの出力状態 のタイムチャートを示します。通常,非常停止ボタンが ON され,EN1,EN2 入力が OFF されることで, インバータはセーフトルクオフ(STO)状態になります。このとき,EN1 と EN2 の入力タイミングのずれ が 50 ms 以内ならアラームは出ませんが,これ以上ずれて論理が変更されると論理不一致と判断し,ECF アラームを出力します。本アラームは電源の再起動により解除されます。 電源OFF 電源ON 運転 停止 運転指令 非常停止 ボタン EN1入力 EN2入力 50 ms 50 ms なし あり...
  • Page 22 タイムチャートを図 10.12 に示します。デジタル入力端子に自己保持(HLD)機能を設定し,機能コード E01 を 6(自己保持選択 HLD)に設定することで,[X1]端子に自己保持(HLD)機能が設定されます。自 己保持(HLD)が ON の状態で,FWD が ON すると FWD が OFF しても HLD によりインバータは運転状態を保 持します。この状態で非常停止ボタンが ON された場合,インバータは強制的にフリーラン停止します。 その後,非常停止ボタンが OFF されてもインバータは運転を再開しません。運転を始めるには,もう一 度,FWD を ON する必要があります。 FRENIC-Multi (FRN E1 - JSF1 ) 出力トランジスタ [L1/R] 電源 [L2/S] [L3/T]...
  • Page 23 セーフティ対応インバータ 高性能・コンパクト形インバータ 取扱説明書 初 版 2010 年 3 月 第 3 版 2012 年 6 月 富士電機株式会社 この取扱説明書の一部または全部を無断で複製・転載することはお断りします。 ● この説明書の内容は将来予告なしに変更することがあります。 ● , , , , 本書の内容については 万全を期して作成いたしましたが 万一ご不審の点や誤り 記載もれなど ● , お気づきの点がありましたら ご連絡ください。 , 運用した結果の影響については 上項にかかわらず責任を負いかねますのでご了承ください。 ●...
  • Page 25 Conformity to the Low Voltage Directive in the EU If installed according to the guidelines given below, inverters marked with CE or TÜV are considered as compliant with the Low Voltage Directive 2006/95/EC. 1. The ground terminal G should always be connected to the ground. Do not use only a residual-current-operated protective device (RCD)/earth leakage circuit breaker (ELCB)* as the sole method of electric shock protection.
  • Page 26 4. The inverter should be used in an environment that does not exceed Pollution Degree 2 requirements. If the environment conforms to Pollution Degree 3 or 4, install the inverter in an enclosure of IP54 or higher. 5. Install the inverter, AC or DC reactor, input or output filter in an enclosure with minimum degree of protection of IP2X (Top surface of enclosure shall be minimum IP4X when it can be easily accessed), to prevent human body from touching directly to live parts of these equipment.
  • Page 27 Conformity to the Low Voltage Directive in the EU (Continued) 13. The inverter should be used to the following conditions of the power supply.
  • Page 28 Conformity to the Low Voltage Directive in the EU (Continued) 14. The inverters are insulated below. The protective class is Class 1 equipment. OVERVOLTAGE CATEGORY Between FRN0.1 to 3.7E1■-2JSF1 Reinforced Power insulation FRN0.1 to 2.2E1■-7JSF1□ circuit and Basic insulation * Control FRN0.4 to 3.7E1■-4JSF1 Basic insulation *...
  • Page 29 Conformity to the Low Voltage Directive in the EU (Continued) 15. Use wires listed in IEC60364-5-52. R ecomm ended wire size (m m M ain circuit D C R *2 [P 1, Applied R ated curre nt (A) power input Co ntrol [L1/R, L2/S, L3/T] motor...
  • Page 30: Chapter 1 Before Using The Inverter

    Chapter 1 BEFORE USING THE INVERTER 1.1 Acceptance Inspection Chapter 2 MOUNTING AND WIRING OF THE INVERTER 2.3 Wiring 2.3.2 Terminal arrangement diagram and screw specifications (3) The control circuit terminals (Compliance with EN ISO13849-1 PL=d Type)
  • Page 31 2.3.6 Wiring for control circuit terminals Functional Safety Inverter of the FRENIC-Multi series, there is not digital input terminal [X5]. Function codes E05 (Terminal [X5] function) is set to “1007” in default setting, and it cannot be changed. Table 2.10 Symbols, Names and Functions of the Control Circuit Terminals...
  • Page 32: Chapter 3 Operation Using The Keypad

    Chapter 3 OPERATION USING THE KEYPAD 3.4.5 Checking I/O signal status -- Menu #4 "I/O Checking" – Displaying control I/O signal terminals The status of control I/O signal terminals may be displayed with ON/OFF of the LED segment or in hexadecimal display.
  • Page 33 "0." Allocated bit data is displayed on the LED monitor as four hexadecimal digits ( each). With the FRENIC-Multi, digital input terminals [FWD] and [REV] are assigned to bit 0 and bit 1, respectively. Terminals [X1] through [X4] and [EN] are assigned to bits 2 through 6. The bit is set to "1"...
  • Page 34: Chapter 5 Function Codes

    Chapter 5 FUNCTION CODES 5.1 Function Code Tables E codes: Extension Terminal Functions Change Incre- Data Default Refer to Code Name Data setting range Unit when ment copying setting page: running Terminal [X5] *1 7 (1007): Free-run command ( BX) 1007 5-35 Terminal [Y1] Function...
  • Page 35 5.2 Overview of Function Codes E20, E21 Terminal [Y1] and [Y2] Function Terminal [30A/B/C] Function (Relay output) Function code data Functions assigned Symbol Active ON Active OFF 1101 Enable circuit failure detected DECF 1102 Enable input OFF EN OFF DECF Enable circuit failure detected -- (Function code data = 101) *1 Configure a feedback circuit of the Enable input function as needed to feed back the transistor output of...
  • Page 36: Troubleshooting

    (3) A single enable circuit failure is detected. The inverter needs to be repaired. The "Reset alarm" terminal command RST cannot reset this alarm. Contact your Fuji Electric representative. *Some failures cannot be detected. (Conforming to EN ISO13849-1 PL=d Cat.3)
  • Page 37: Running The Inverter By Terminal Commands

    Chapter 8 SPECIFICATIONS 8.4 Terminal Specifications 8.4.3 Running the inverter by terminal commands (Note 1) P( +) (CM) (Note 4) (THR) (Note 2) MCCB Power Supply (Note 3) Main circuit (Note 9) ELCB three-phase P( +) N( -) FUSE 200 to 240V L1/R 50/60Hz Motor...
  • Page 38 (Note 1) When connecting an optional DCR, remove the jumper bar from the terminals [P1] and [P (+)]. (Note 2) Install a recommended MCCB or RCD/ ELCB (with overcurrent protection) in the primary circuit of the inverter to protect wiring. At this time, ensure that the circuit breaker capacity is equivalent to or lower than the recommended capacity.
  • Page 39: Chapter 10 Compliance With Standards

    CE marking but have no built-in EMC filter becomes compliant with these EMC Directives. CAUTION The EMC filter built-in type of the FRENIC-Multi inverters is categorized as "Category C3" of the EN61800-3. It is not designed for use in a domestic environment. It may interfere with the operations of home appliances or office equipment due to noise emitted from it.
  • Page 40: Compliance With Emc Standards

    10.6 Compliance with Functional Safety Standard 10.6.1 General In FRENIC-Multi series of inverters, opening the hardware circuit between terminals [EN1]-[PLC] or between terminals [EN2]-[PLC] stops the output transistor, coasting the motor to a stop. (EN: Enable input) This is the Safe Torque Off (STO) prescribed in EN60204-1, Category 0 (Uncontrolled stop) and compliant with Functional Safety Standard.
  • Page 41 Safety switch complying with EN ISO13849-1 PL=d Cat. 3 or higher Reset Emergency stop button Figure 10.6 Conventional Inverters FRENIC-Multi (FRN E1 - JSF1 ) Safety relay unit complying with Motor Output transistor EN ISO13849-1 PL=d Cat. 3 or higher...
  • Page 42 10.6.2 Notes for compliance to Functional Safety Standard (1) Wiring for terminals [EN1] (Enable input 1) and [EN2] (Enable input 2) - [EN1]/[EN2] and [PLC] are terminals prepared for connection of safety related wires; therefore, careful wiring should be performed to ensure that no short-circuit(s) can occur to these terminals.
  • Page 43 (2) Note for Safe Torque Off (STO) - When configuring the product safety system with this Safe Torque Off (STO) function, make a risk assessment of not only the external equipment and wiring connected to terminals [EN1] and [EN2] (Enable input 1 and Enable input 2) but also the whole system including other equipment, devices and wiring against the product safety system required by the machinery manufacturer under the manufacturer's responsibility in order to confirm that the whole system conforms to the product safety system required by the machinery...
  • Page 44 10.6.3 EN ISO13849-1 PL=d European Standard EN ISO13849-1 PL=d (Safety of machinery–Safety related parts of control systems) prescribes the basic safety requirements for machinery categorized according to the requirement level. Category 3 represents the requirements that the machinery shall be designed with redundancy so that a single fault does not lead to the loss of the safety function.
  • Page 45 10.6.4 Inverter output state when Safe Torque Off (STO) is activated Turning the emergency stop button ON turns EN1 and EN2 OFF, bringing the inverter into the Safe Torque Off (STO) state. Figure 10.8 shows the timing scheme to apply when the emergency stop button is turned OFF with the inverter being stopped.
  • Page 46 10.6.5 alarm (caused by logic discrepancy) and inverter output state Figure 10.10 shows the timing scheme to apply when EN1 and EN2 inputs are not aligned so that an alarm occurs. Turning the emergency stop button ON turns EN1 and EN2 inputs OFF, which usually brings the inverter into the Safe Torque Off (STO) state.
  • Page 47 HLD. Turning the emergency stop button ON under the condition causes the motor to coast to a stop. After that, turning the emergency stop button OFF no longer starts the inverter to run. To run the inverter, turn the FWD ON again. FRENIC-Multi (FRN E1 - JSF1 ) Output transistor...
  • Page 48 In no event will Fuji Electric Co., Ltd. be liable for any direct or indirect damages resulting from the application of the information in this manual.
  • Page 49 富士電機株式会社 Fuji Electric Co., Ltd. パワエレ事業本部 ドライブ事業部 〒141-0032 東京都品川区大崎一丁目 11 番 2 号 Gate City Ohsaki, East Tower, 11-2, (ゲートシティ大崎イーストタワー) Osaki 1-chome, URL http://www. .co.jp/ fujielectric Shinagawa-ku, Tokyo, 141-0032, Japan Phone: +81 3 6717 0617 Fax: +81 3 6717 0585 発行...
