2. To fasten the Intercom:

•

Operations Guide

For wall mounting, use the two 8-32 X 1/4" FLAT HEAD PHILLIPS MACHINE SCREW

and the one 10-24 X 5/16" PAN HEAD PHILLIPS MACHINE SCREW to secure the

Intercom.

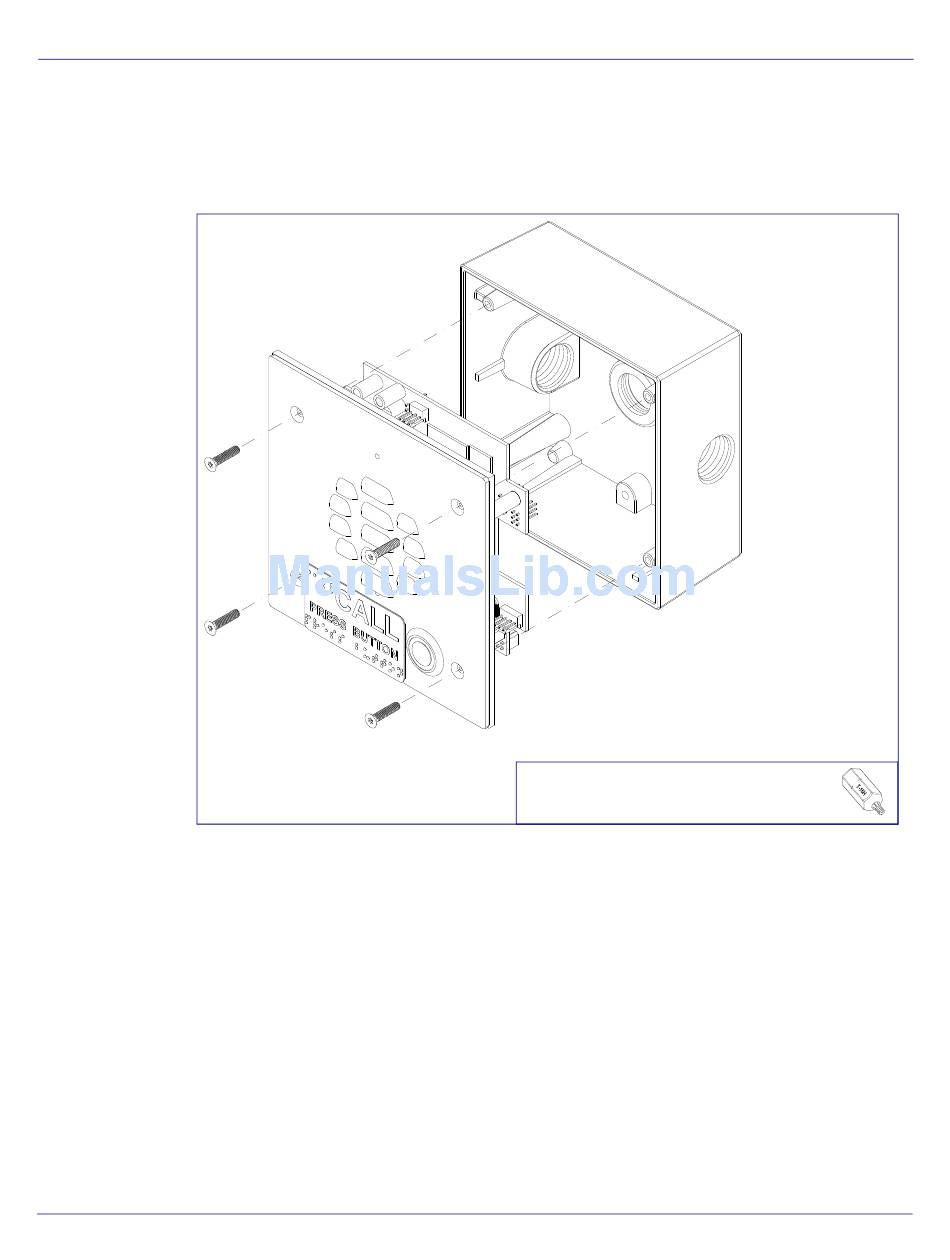

Figure 5-2. VoIP Intercom Assembly

Security Torx Screw (4x)

Face Plate

and

PCB Assembly

(1) Tamper-resistant Torx Bit (T-15H)

(Requires 1/4-inch Driver Torx Bit Socket)

930242M

Mount the Intercom

2 Gang Box
