WisyCom MTP41 User Manual page 9

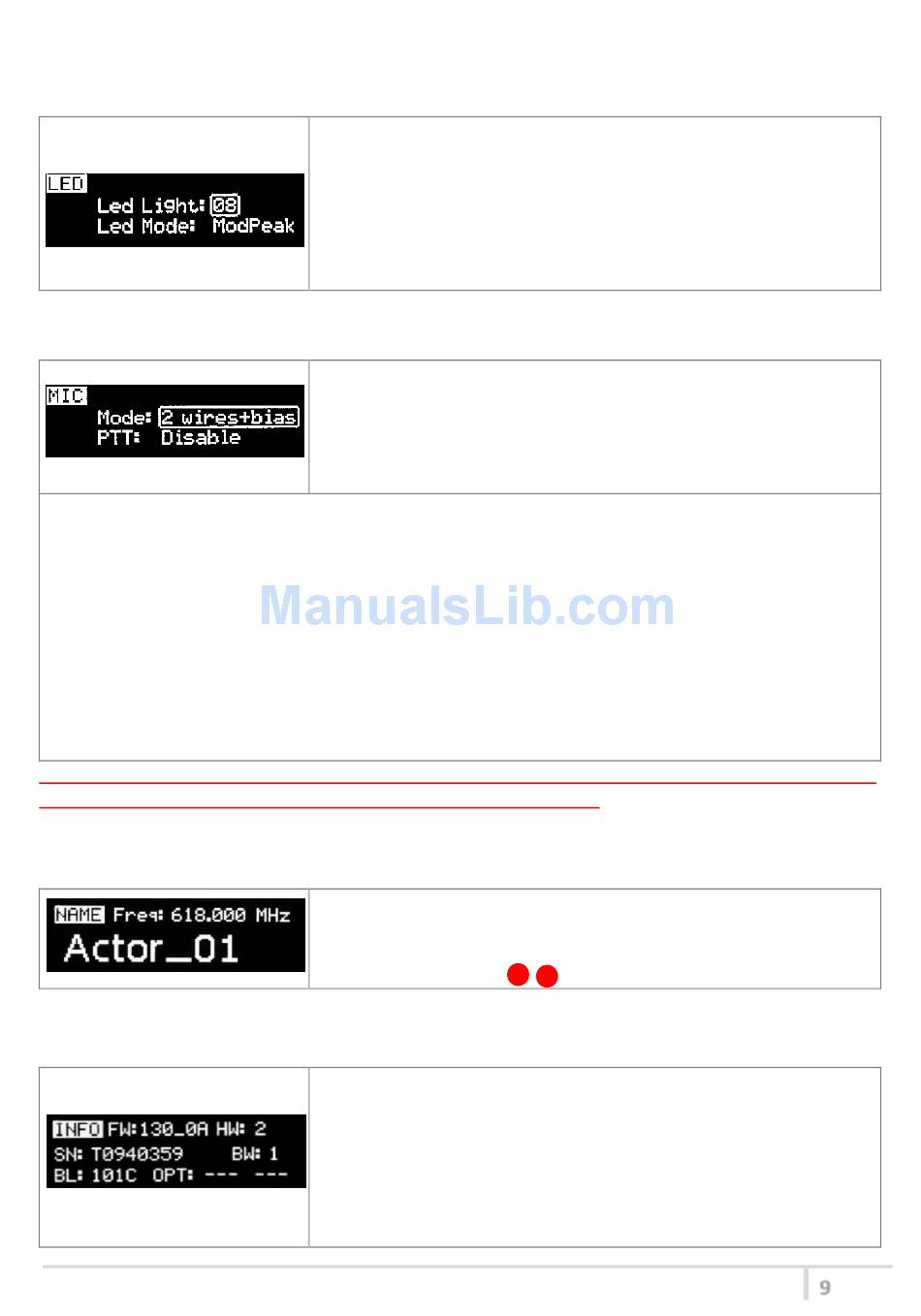

<LED> menu
This menu can be entered by scrolling selector.
<MIC> menu
This menu can be entered by scrolling selector.
PTT setting defines how and what information the transmitter has to send in normal use or when
the PTT button is pushed:
- Disable: when the PTT button is pushed, nothing happen. (the transmitter sends AF+Tone
squelch)
- Normal: when the PTT button is pushed, the transmitter send a different RF signal. According to
the receiver configuration the audio can be enabled/disable on LINE (and/or COM).
- Muting: the transmitter doesn't send the audio. The voice is cut, it doesn't enter to the
microphone
- No Data: the transmitter sends neither tone squelch nor battery data.
Use the selector to change values (<+/->) and <click> to confirm.
NOTE: For DPA option (2 pin microdot audio connector), even if the MIC mode menu allows to set one
of the 5 MIC modes, only 2 wires or 2 wires+bias mode are possible.
<NAME> menu
This menu can be entered by scrolling selector.
<INFO> menu
This menu can be entered by scrolling selector.
Led Light allows to change the brightness of the front led (0÷16) .
Led Mode:
- ModPeak: allows to enable modulation peak LED on front led
(become RED when audio get close to saturation)
- none: allows to disable modulation peak LED on front led
- PTT: allows to enable RED color on front led when PTT button is
pushed.
Mode: Following Mic mode can be setup (for LEMO option)
-2 wires: (PTT is possible) for external audio input
-2 wires + bias: (PTT is possible) for most 2 wires MIC
-3 wires: (no PTT) for most 3 wires MIC
In this menu it's possible to see the frequency set on the device
and the name of the transmitter.
It's possible to enter on this menu also pressing at the same time
the CH/GAIN buttons (
In this menu it's possible to see:
-
FW version
-
HW version
-
Serial number
-
Bandwidth
-
Bootloader version
-
Option
MTP41 User Manual
B + C )
9
