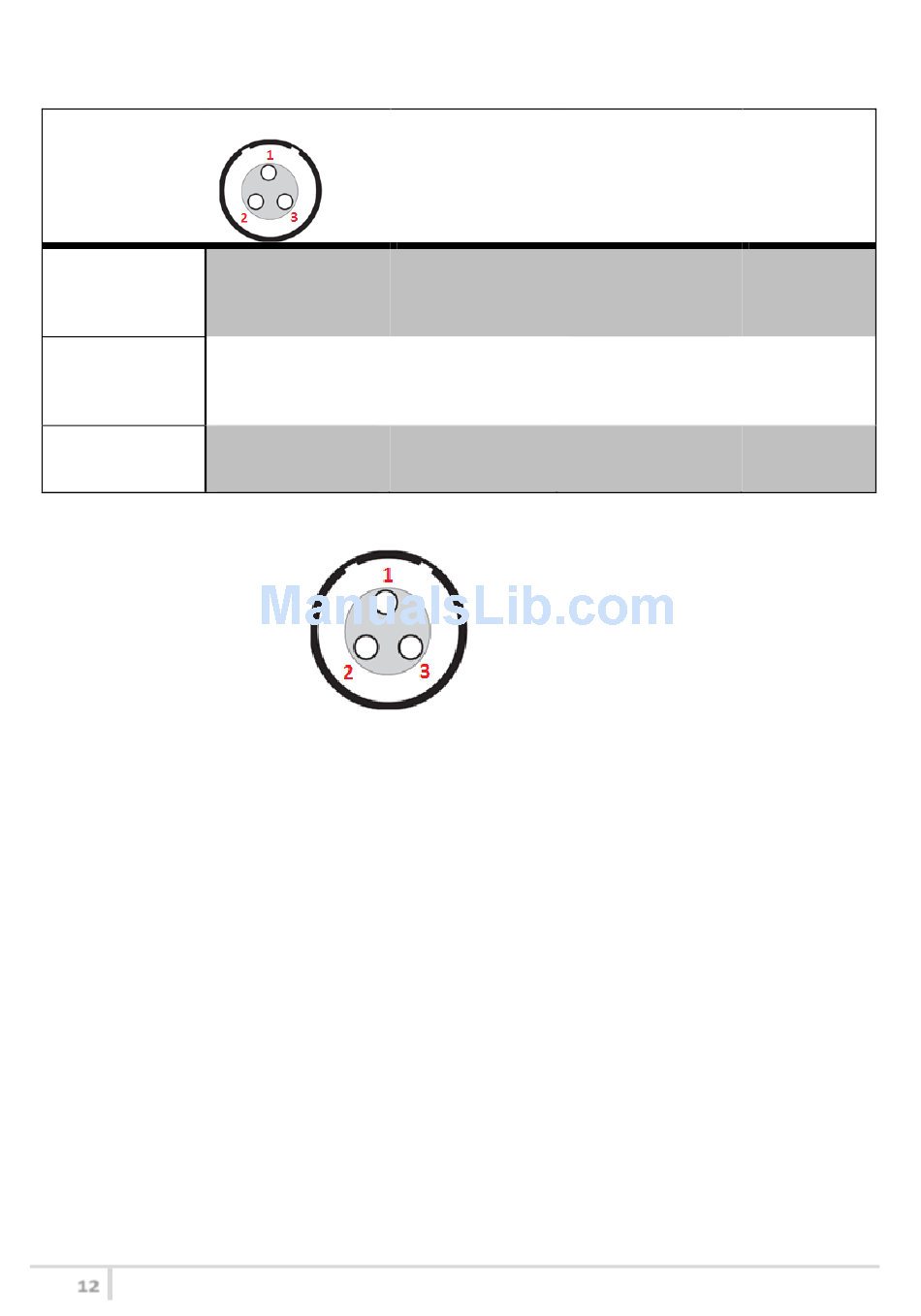

MIC Mode setting (only for LEMO option):
MIC Mode:
'2 wires':
'2 wires + bias':
'3 wires':
3 PIN LEMO CONNECTOR
(use FVB.00.003.NLN on Mic)
12
Pin out
1=GND
3=AF
1=GND
3=AF+5.5V
1=GND
2=5.5V
3=AF
Gain PTT
Disable
Normal
-60/40 dB
Muting
No data
Disable
Normal
-60/40 dB
Muting
No data
Disable
-60/40 dB
No data
Led Mode
None
Mod. Peak
PTT
None
Mod. peak
PTT
None
Mod. peak
