EV-ADF4355-2SD1Z User Guide
GETTING STARTED
SOFTWARE INSTALLATION PROCEDURES
See the
ADF4355-2
product page for the
control software. For the software installation procedure, see
the
PLL Software Installation
EV-ADF4355-2SD1Z
Guide.

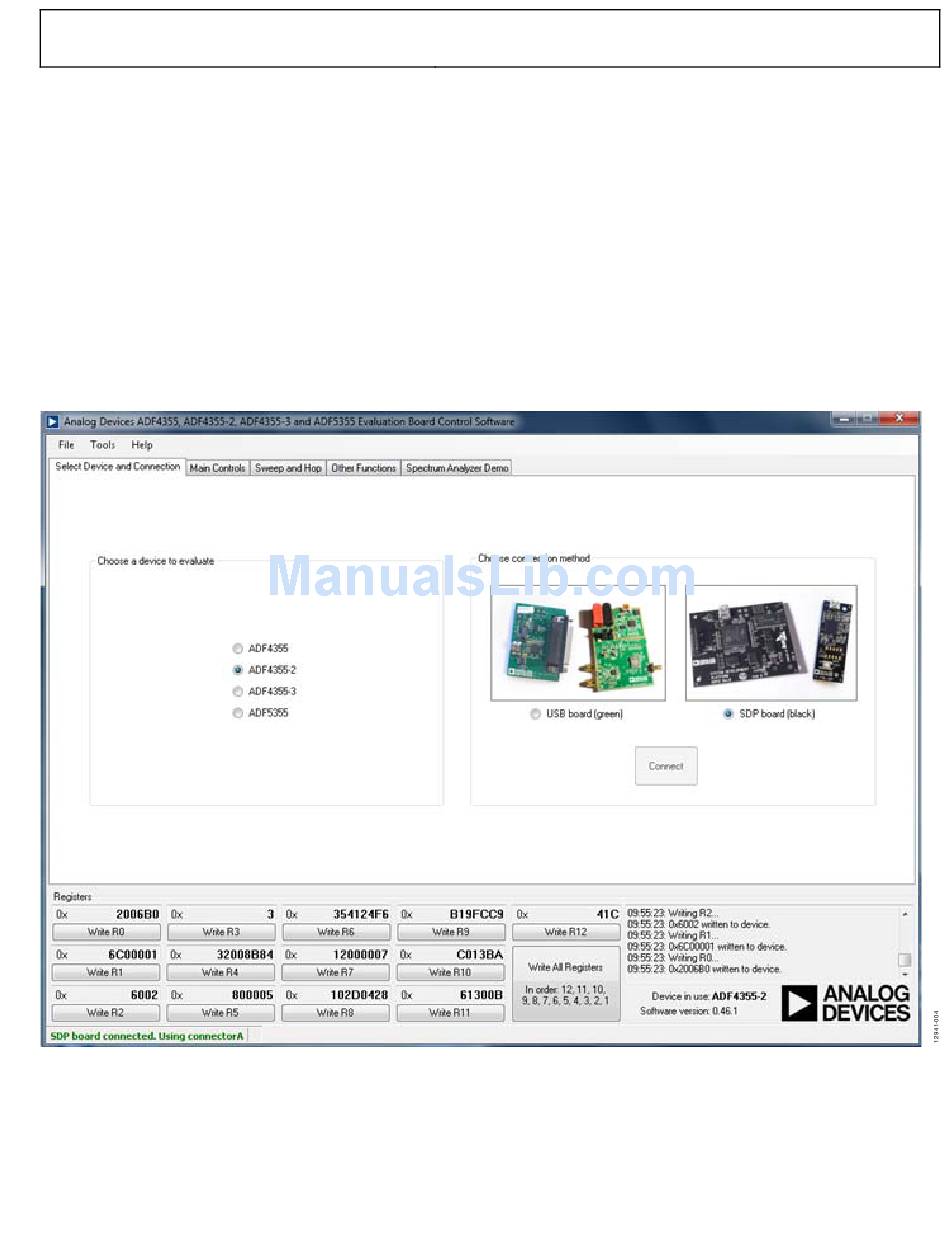

Figure 2. Software Front Panel Display—Select Device and Connection
EVALUATION BOARD SETUP PROCEDURES
To run the software,
1.
Click the ADF4355-2 file on the desktop or from the Start
menu.
2.
On the Select Device and Connection tab, choose
ADF4355-2 and SDP board (black), and then click
Connect (see Figure 2).
3.
When connecting the board, allow 5 sec to 10 sec for the
label on the status bar to change.
Under the File menu, the current settings can be saved to, and
loaded from, a text file.
