256-position spi compatible dual digital potentiometer

Advertisement

Evaluation Board User Manual

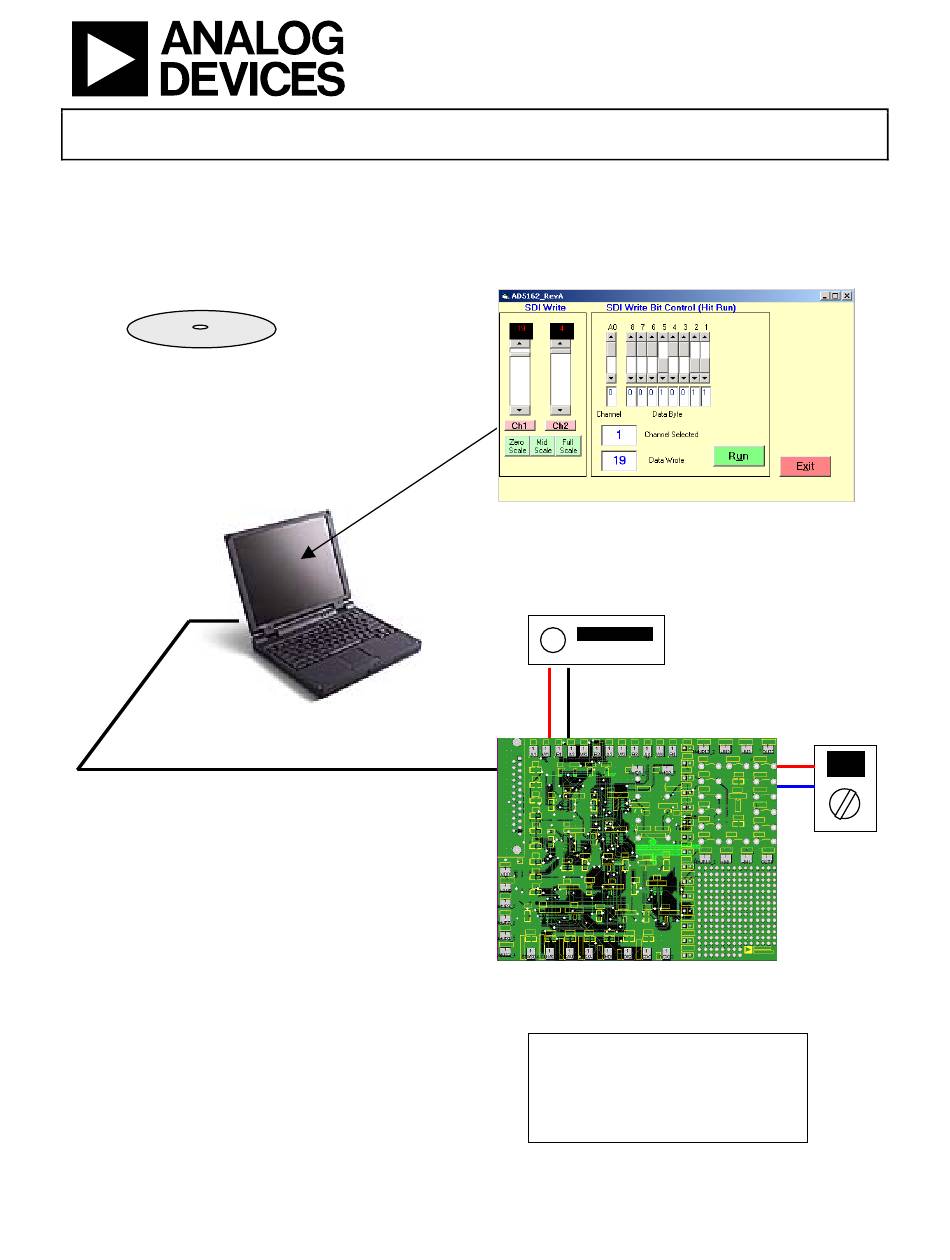

5 Steps To Setup The Evaluation Board...

1. Install AD5162 Software
2. Configure Board and Connect to Parallel Port with
Provided Parallel Cable
Figure 1. Evaluation Kit Setup
Rev B 11/03/03
256-Position SPI Compatible
Dual Digital Potentiometer
3. Open AD5162 RevA.exe
+5V
GND
No Programming
Skills Required!
1
AD5162
4. Provide Power
SupplyOr
Power from Parallel Port
W
B
5. Measure Result
Use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD5162 and is the answer not in the manual?

Questions and answers

Summary of Contents for Analog Devices AD5162

  • Page 1 256-Position SPI Compatible Dual Digital Potentiometer AD5162 Evaluation Board User Manual 5 Steps To Setup The Evaluation Board… 1. Install AD5162 Software 3. Open AD5162 RevA.exe 4. Provide Power SupplyOr Power from Parallel Port 2. Configure Board and Connect to Parallel Port with Provided Parallel Cable 5.
  • Page 2 This evaluation board provides the user with a simple and quick solution to evaluate digital potentiometers from Analog Devices. Only one digital pot can be placed on the board at a time. For the user’s convenience, a general purpose opamp, 2.5V voltage reference, and two power MOSFETs are included and can be configured in a variety of flexible configurations.
  • Page 3 256-Position SPI Compatible Dual Digital Potentiometer AD5162 Evaluation Board User Manual ADR03 2.5V Reference VREF DGND Temp Trim CLK/SCL SDI/SDA DGND CS/AD0 CS/AD0 CS/AD0 SPI/I2C CLK/SCL SDI/SDA DGND Vout SDO/NC AD5247 SDI/SDA CLK/SCL SDI/SDA CLK/SCL ADR03 AD5160 0.1u AD5161 0.1u...
  • Page 4 Configuring other Components Two Channel Opamp - AD822 Positive Supply To use the same VDD as the AD5162, connect JP6. To use a separate positive supply, connect JP7 and apply positive supply(no more than +15V) to the VCC pad. Negative Supply To use GND, simply connect JP8.
  • Page 5 2.5V Voltage Reference – ADR03 By connecting JP5, the voltage reference is connected to the A-terminal of channel-1 of the AD5162. You don’t need to worry about applying VDD because it is hardwired from the same source that is powering the AD5162.
  • Page 6 256-Position SPI Compatible Dual Digital Potentiometer AD5162 Evaluation Board User Manual AD5162 Parallel Port Connection (Information for Visual Basic Program Developers Only) SHDN VDD DIS RES/AD1 CS/AD0 CLK/SCL SDI/SDA DGND SDO/O1 SDA_Read http://www.doc.ic.ac.uk/~ih/doc/par/ 8 output pins accessed via the DATA Port portID = Val("&H"...
