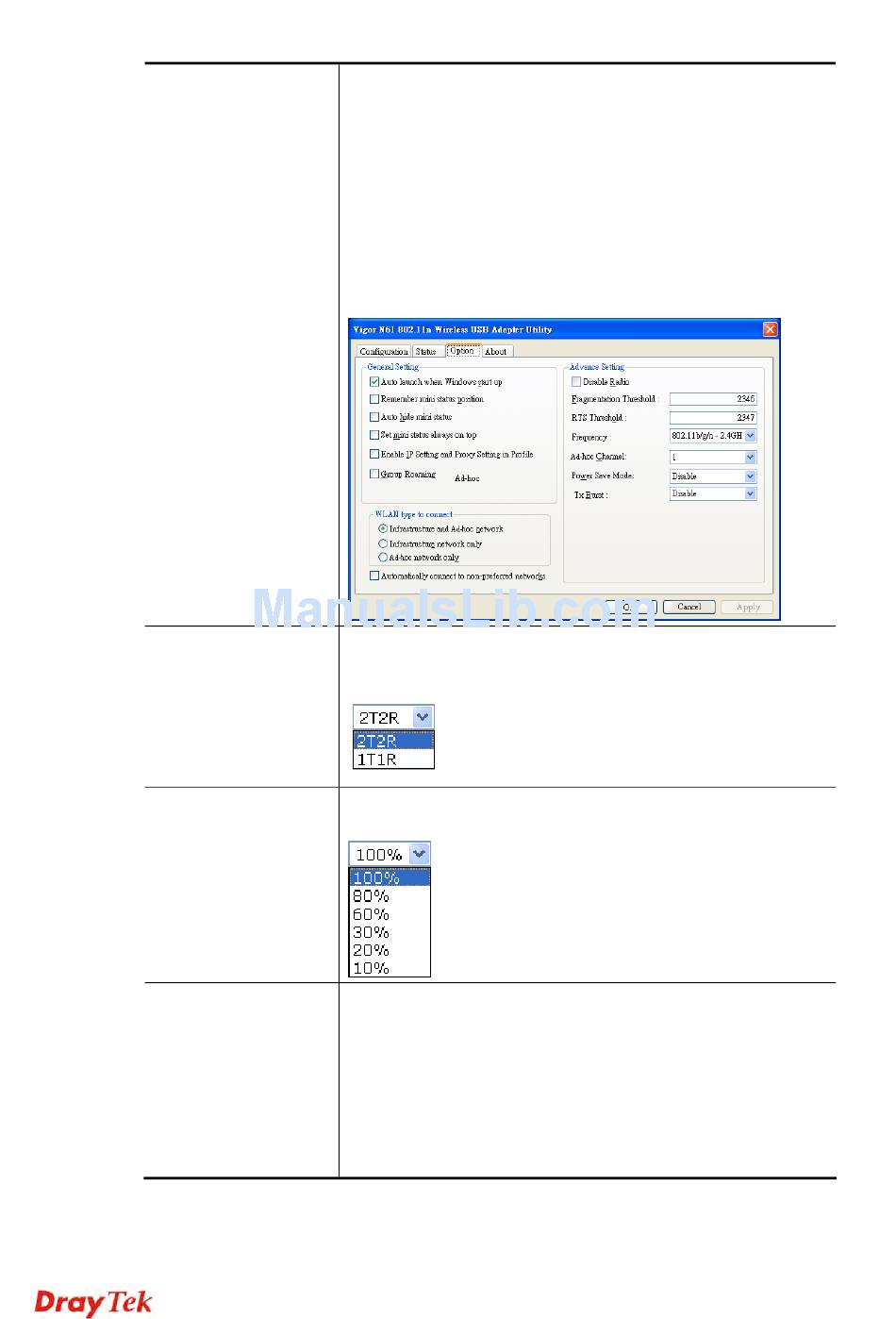

Packet-OVERDRIVE This feature can enhance the performance in data transmission
Antenna
Tx Power
Channel Width
After finishing this web page configuration, please click OK to save the settings.
about 40%* more (by checking Tx Burst). It is active only
when both sides of Access Point and Station (in wireless
client) invoke this function at the same time. That is, the
wireless client must support this feature and invoke the
function, too.
Note: Vigor N61 wireless adapter supports this function.
Therefore, you can use and install it into your PC for matching
with Packet-OVERDRIVE (refer to the following picture of
Vigor N61 wireless utility window, choose Enable for
TxBURST on the tab of Option).
VigorAP 910C can be attached with two antennas to have good
data transmission via wireless connection. However, if you
have only one antenna attached, please choose 1T1R.
The default setting is the maximum (100%). Lower down the
value may degrade range and throughput of wireless.
Auto 20/40 MHZ– the device will use 20Mhz or 40Mhz for
data transmission and receiving according to the station
capability. Such channel can increase the performance for data
transit.
20 MHZ- the device will use 20Mhz for data transmission and
receiving between the AP and the stations.
40 MHZ- the device will use 40Mhz for data transmission and
receiving between the AP and the stations.
