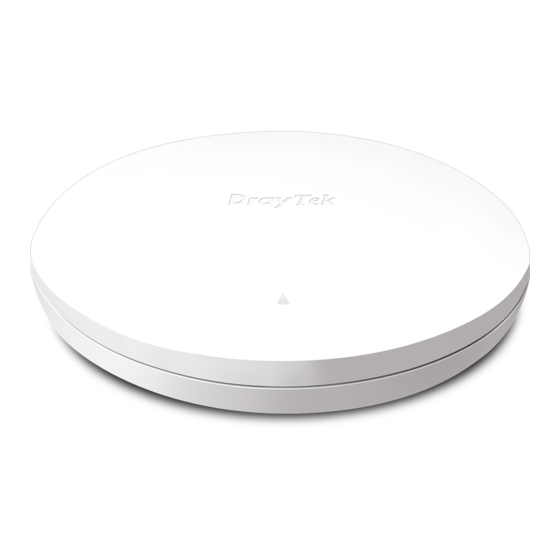

- Page 1 VigorAP 962C 802.11ax Ceiling-mount Access Point Quick Start Guide Version: 1.0 Firmware Version: V1.5.4 (For future update, please visit DrayTek web site) Date: June 12, 2024...
- Page 2 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks Microsoft is a registered trademark of Microsoft Corp.
- Page 3 Declaration of Conformity Hereby, DrayTek Corporation declares that the equipment type VigorAP 962C is in compliance with Radio Equipment Directive 2014/53/EU, Low Voltage Directive 2014/35/EU and RoHS 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: https://fw.draytek.com.tw/VigorAP%20962C/Document/CE/...
- Page 4 UK PSTI STATEMENT OF COMPLIANCE We, DrayTek Corp., office at No.26, Fushing Rd., Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan, declare under our sole responsibility that the product The full text of the PSTI Declaration of Conformity is available at the following internet address: https://fw.draytek.com.tw/UK/PSTI/...
- Page 5 Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 6 86.96% 86.2% 85.21% efficiency Efficiency at low 79.3% 83.7% 77.5% 79.1% 80.1% load 10% No-load power 0.06W 0.07W 0.10W 0.10W 0.1W consumption *The external power supply used for each product will be model dependent. For more update, please visit www.draytek.com.
-
Page 7: Table Of Contents
1. Package Content ....................8 2. Panel Explanation....................9 3. Installation......................10 3.1 Ceiling-mount Installation (from A to C)..................10 3.2 Wall-mount Installation (from A to C)..................10 4. Connection and Configuration ................11 4.1 Notifications for Hardware Connection..................11 4.2 Web Configurations........................12 5. -
Page 8: Package Content
Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. Main Unit Mount brackets Fixings and Screws Quick Start Guide RJ-45 Cable (Ethernet) -
Page 9: Panel Explanation
Status Explanation Orange LED The system is in boot-loader mode. Blinking The system is in TFTP mode. Blue LED Blinking The system is in AP mode and work normally. Red LED Blinking System error. VigorAP is turned off or not functioning. Interface Explanation Ethernet Port... -
Page 10: Installation
VigorAP can be installed under certain locations: wooden ceiling, plasterboard ceilings, and wall. -
Page 11: Connection And Configuration
Connect VigorAP to Vigor router (via LAN port) with Ethernet cable. Connect VigorAP to the PoE switch (via LAN port) with an Ethernet cable for getting the power from the switch directly. While connecting with a PoE switch, the power adapter is not necessary but optional. -
Page 12: Web Configurations
You may either simply set up your computer to get IP dynamically from the router or set up the IP address of the computer to be in the same subnet as the IP address of VigorAP 962C. If there is no DHCP server on the network, then VigorAP ... - Page 13 4. After clicking Apply, the Main Screen will pop up. When the homepage appears, view the configuration and modify the settings if you want.
- Page 14 Method 2: Use a mobile phone to scan the QR code named with DrayTek Wireless App to download DrayTek Wireless APP. After opening the DrayTek website, use the scroll bar to locate the Wireless APP. Based on the mobile phone type (Android or iOS) you have, select the one you need to download the APP.
-
Page 15: Customer Service
If the device cannot work correctly after trying many efforts, please contact your dealer/DrayTek for further help right away. For any questions, please feel free to send e-mail to “support@draytek.com”. Web registration is preferred. You can register your Vigor router via https://myvigor.draytek.com.
