1.
Place the bracket under the plasterboard ceiling and fasten two turnbuckles firmly (as
shown in Figure below, Step 1).
2.
Make the screws pass through the bracket and insert into the turnbuckles (as shown in
Figure below, Step 2). Fasten them to offer more powerful supporting force.
3.
When the bracket is in place, fasten two screws firmly (as shown in Figure below, Step
3) on the bottom of VigorAP.
4.
Make the device just below the bracket. Put the screws installed in Step 3 on the screw
holes of the bracket (as shown in Figure below, Step 4).
5.
Gently rotate the device to make screws slide into the notches of the bracket and move
forward till it is firmly fixed.

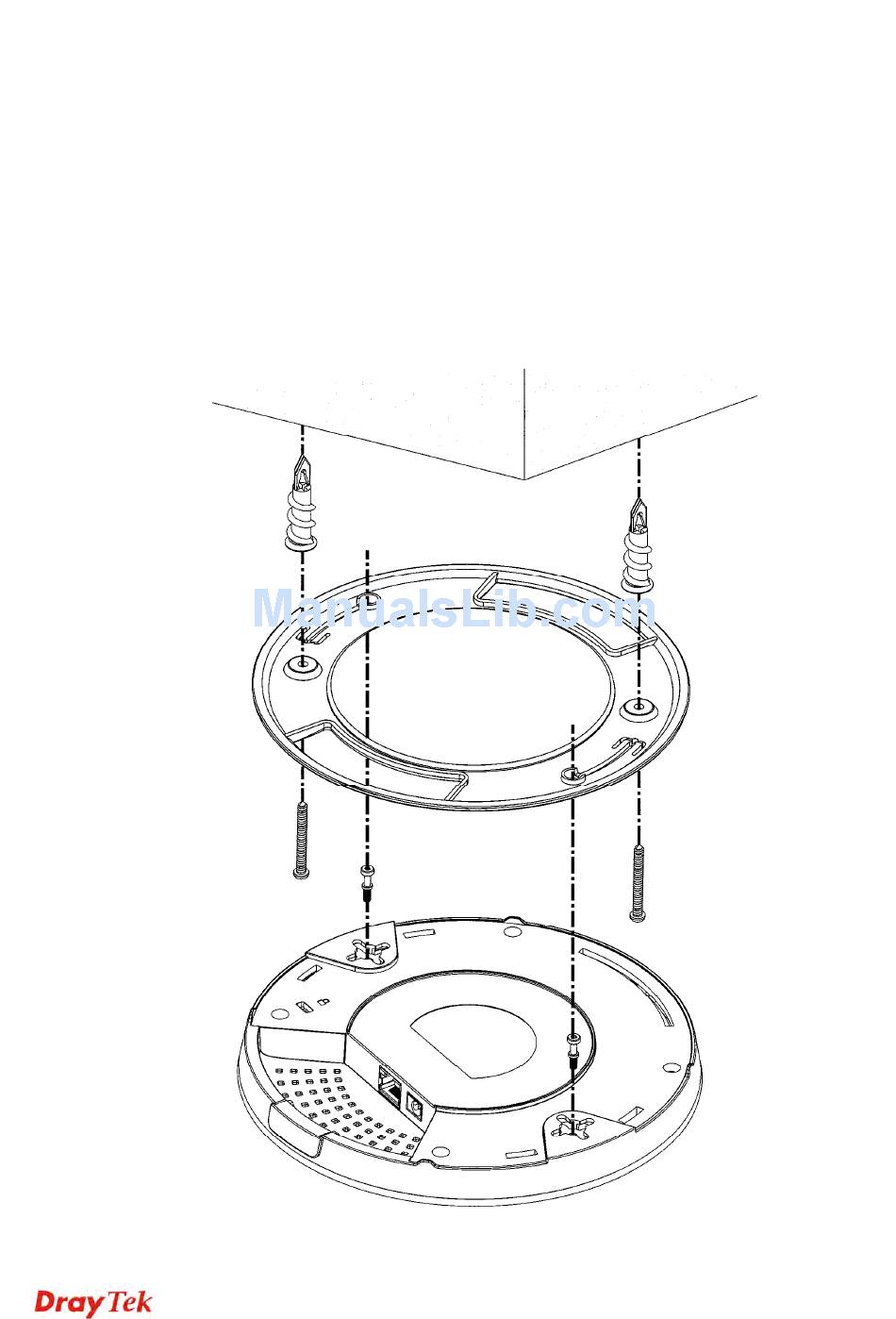

Step 1
