Connecting To Pc Directly - Draytek VigorAP 910C User Manual

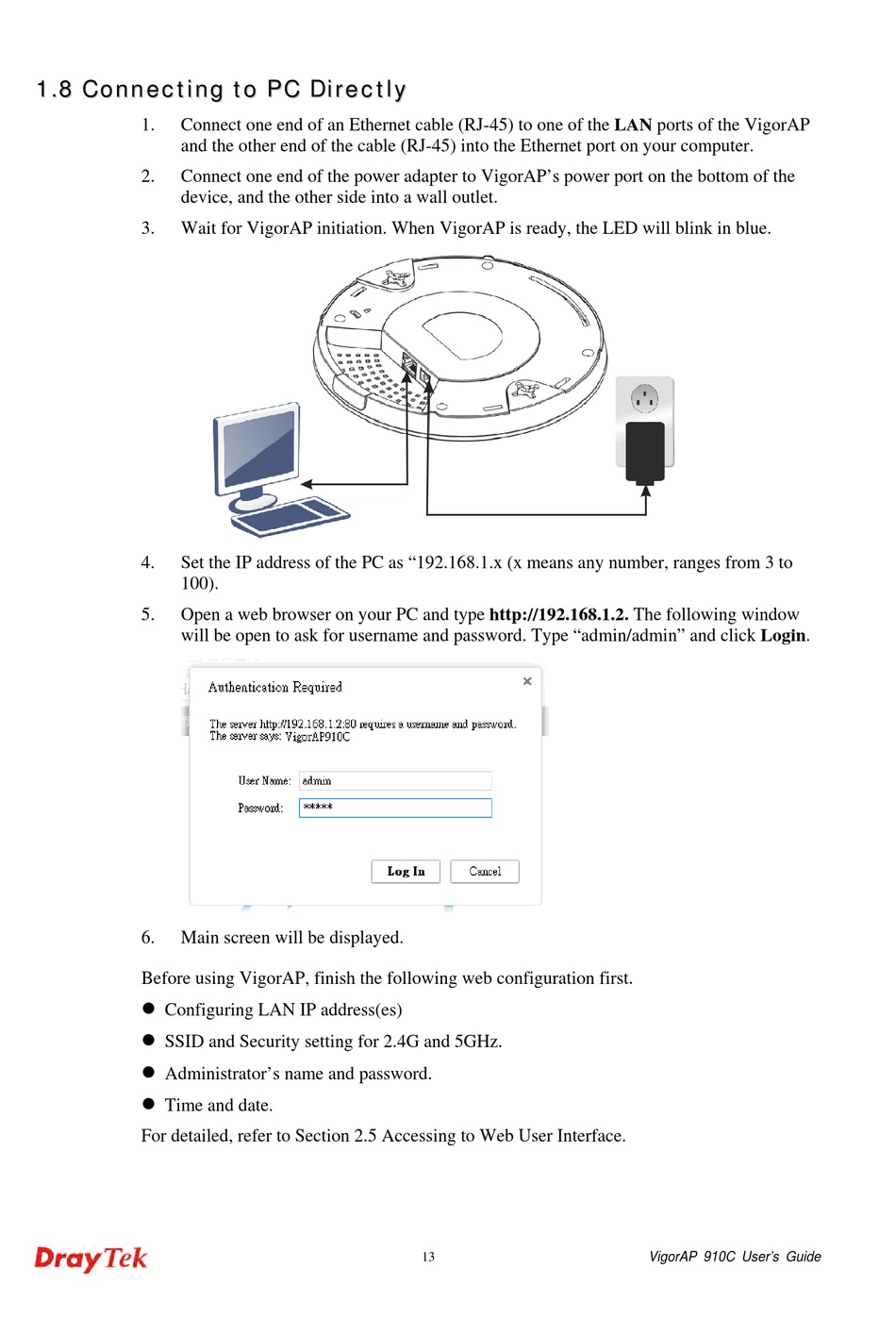

1 . 8 C o n n e c t i n
1 . 8 C o n n e c t i n
1. Connect one end of an Ethernet cable (RJ-45) to one of the LAN ports of the VigorAP
and the other end of the cable (RJ-45) into the Ethernet port on your computer.
2. Connect one end of the power adapter to VigorAP's power port on the bottom of the
device, and the other side into a wall outlet.
3. Wait for VigorAP initiation. When VigorAP is ready, the LED will blink in blue.
4. Set the IP address of the PC as "192.168.1.x (x means any number, ranges from 3 to
100).
5. Open a web browser on your PC and type http://192.168.1.2. The following window
will be open to ask for username and password. Type "admin/admin" and click Login.
6. Main screen will be displayed.
Before using VigorAP, finish the following web configuration first.

Configuring LAN IP address(es)

SSID and Security setting for 2.4G and 5GHz.

Administrator's name and password.

Time and date.
For detailed, refer to Section 2.5 Accessing to Web User Interface.
g t o P C D i r e c
g t o P C D i r e c
t l y
t l y
13
VigorAP 910C User's Guide
