You cannot screw into ceiling tiles as they are weak and not suitable for bearing loads. Your
VigorAP is supplied with mounts (T-Rail brackets) which attach directly to the metal grid
('T-Rail') of your suspended ceiling.
1.
Choose one set of T-Rail mounting kits from the bundled package.
2.

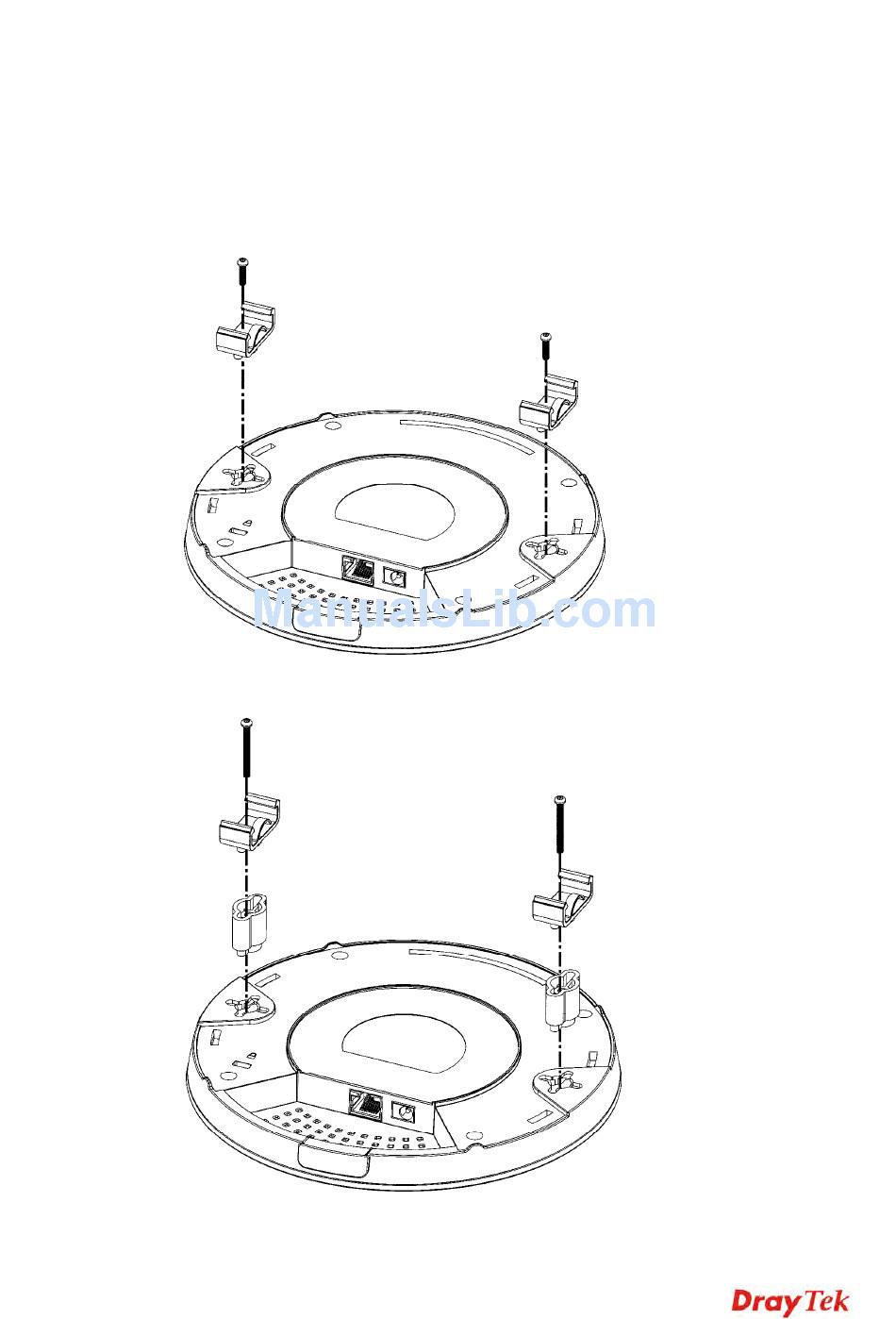

Put the T-Rail brackets on the holes of the bottom side of the device. Fasten them with
suitable screws.
3.
If a larger gap is required between the ceiling and the VigorAP, use the extension
pieces to extend the height of the brackets.
