2.2 Identification of System Components

5
4
3

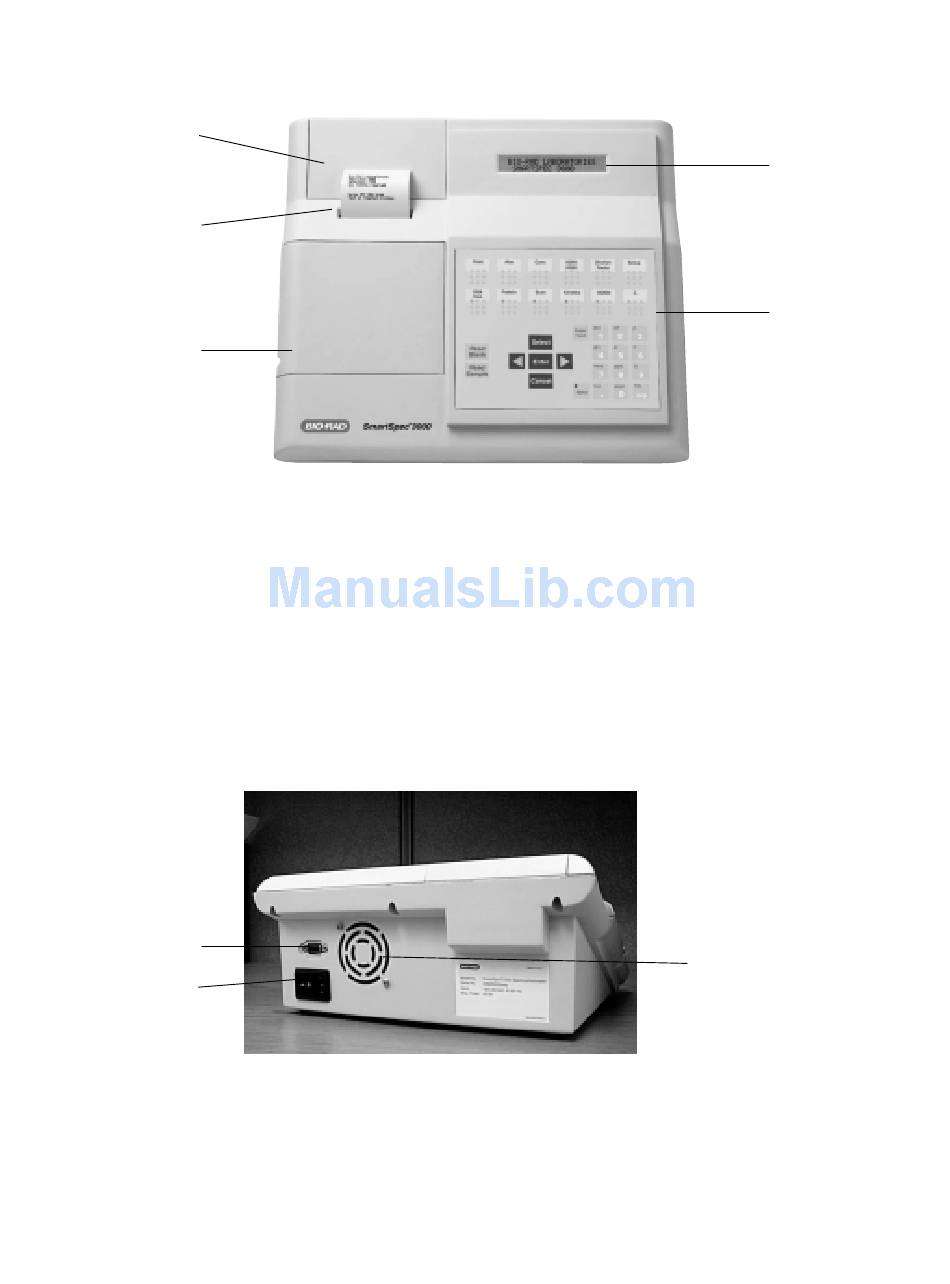

Fig. 1. View of the SmartSpec 3000 Spectrophotometer.
Instrument
1. Keypad interface
2. Display
3. Sample compartment door
4. Integrated thermal printer
5. Printer paper compartment
door
8
7
Fig. 2. Rear view of the SmartSpec 3000 Spectrophotometer.
6. Fan Guard
7. Universal Power Input Module Appropriate power cord is connected to the power
and ON/OFF Switch
8. Serial Output Port
Change menu and select options by pressing these
buttons. Press a single button to perform action
described on the menu display.
2 x 24 alphanumeric backlit LCD display. Displays
various menus and options available.
Lift door to insert cuvette into the cuvette chamber.
Built-in alphanumeric/graphic printer. Press print
button to record results immediately.
Remove door to install new roll of printer paper
Exhaust air leaves cabinet through this opening.
input module. Instrument power switch.
RS-232 connection to serial printer or computer.
2
2
1
6
