Evaluation Board User Guide

EVALUATION BOARD SOFTWARE

INTEGER-N SOFTWARE DESCRIPTION

The Integer-N software is provided on the CD-ROM included
in the evaluation board package.
Installing the Software
To load the software, open the Integer-N Software folder,
double-click setup.exe, and then follow the on-screen instructions
from the installation wizard. The software is installed into the
default directory C:\Program Files\Analog Devices\ADF_Rev3.x\.
Using the Software
To run the software,
1. Ensure that the evaluation board is turned on and that the
interface cable is connected.
2. From the C:\Program Files\Analog Devices\ADF_Rev3.x\
directory, double-click ADF_Rev3_x.exe.

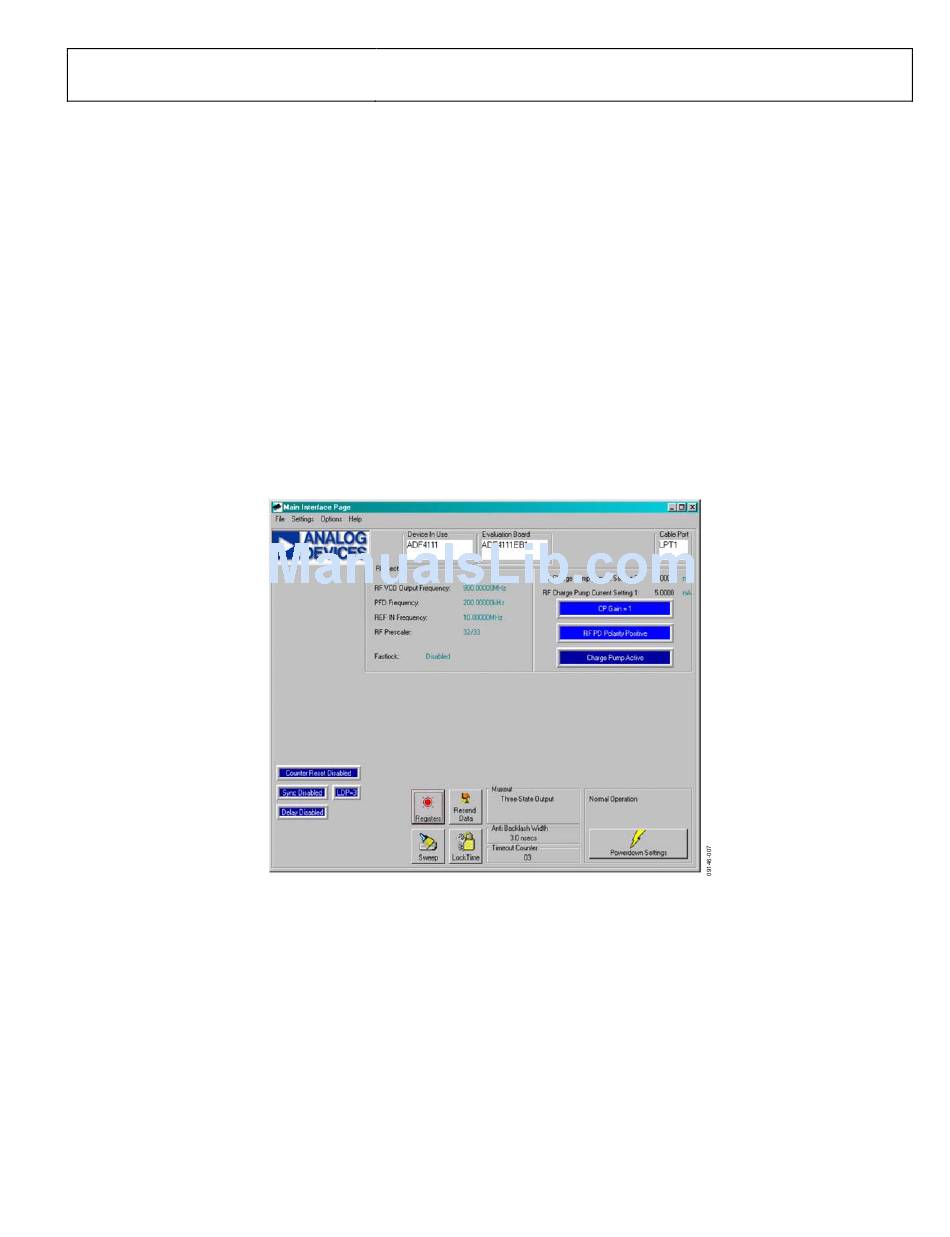

Figure 5. Main Interface Page Window
www.BDTIC.com/ADI
Rev. 0 | Page 5 of 12
3. A dialog box appears asking which device is to be evaluated.
Select the appropriate device, and click OK. The Main
Interface Page window appears (see Figure 5).
4. Click REF IN Frequency, and the Reference Frequency
window appears. Type the reference frequency into the
appropriate box, and click OK.
5. Click RF VCO Output Frequency, and the Output
Frequency window appears. Type the RF output frequency
and PFD reference frequency into the appropriate boxes,
and click OK.
6. Click RF Charge Pump Current Setting 2 or RF Charge
Pump Current Setting 1, and the Current Setting window
appears. Set the charge pump current setting to the value
used for the loop filter, and click OK.
7. Click RF PD Polarity to set the RF PD polarity bit.
The data is then set up, and other features can be examined.
UG-161
