AutoView 200 Installer/User Guide
B: FLASH
Upgrading
To upgrade the FLASH code on your AutoView 200, you will first need to
obtain the latest FLASH firmware revision from Cybex. It is available
through Cybex Technical Support.

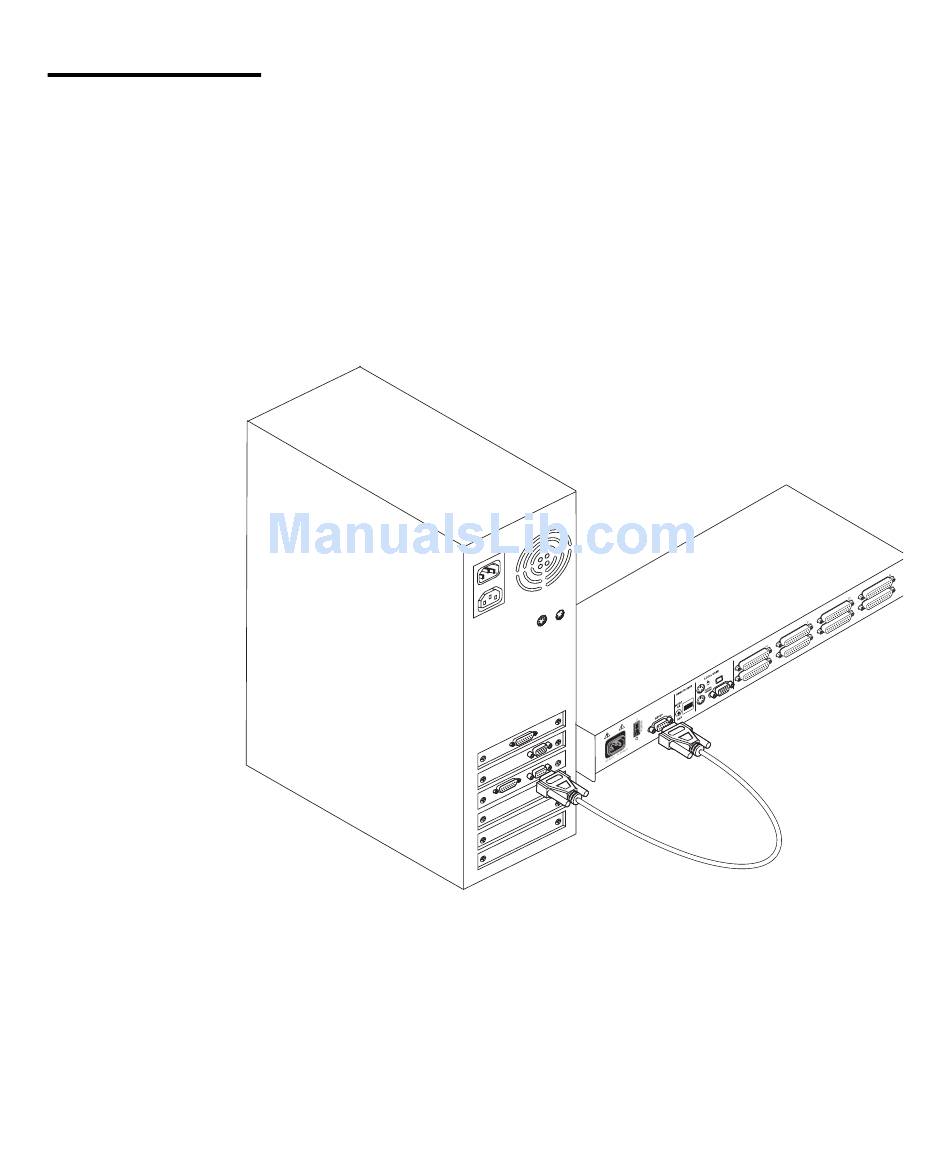

Next you will need a serial cable (available at most electronics stores) to
connect a PC to your AutoView 200. Simply connect the serial cable
between the SETUP port on your AutoView 200 to the serial port on the PC.
You will then need some form of terminal software on your attached PC so
that the computer can communicate with the AutoView 200. There are
several that are commercially available. Select one that you are comfortable
with and be sure that it can communicate at 38,400 baud.
32
