CYBEX AutoView 400 Quick Installation Manual

AutoView 400 AutoView 400 AutoView 400

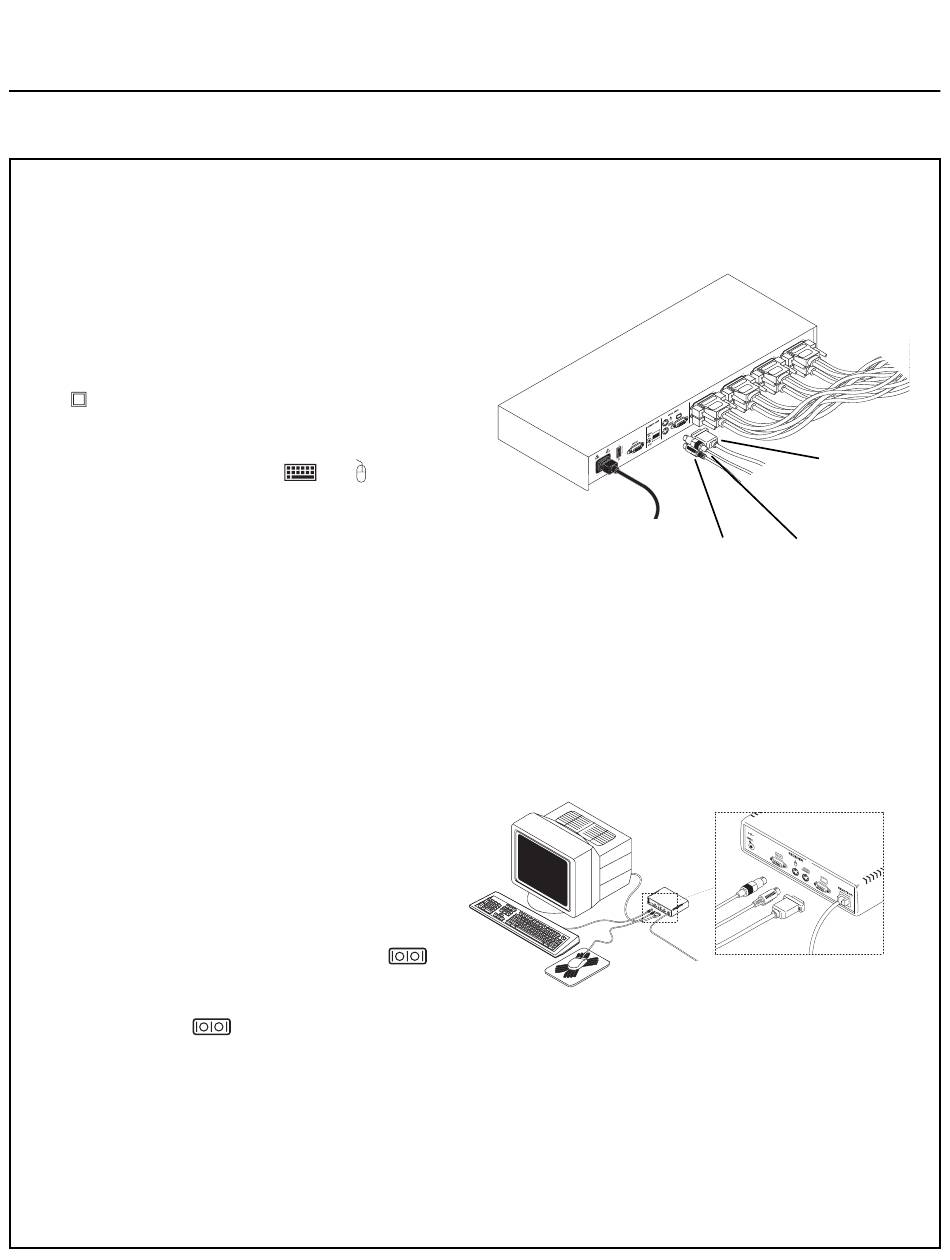

AutoView 400 AutoView 400
The following instructions will allow you to set up your AutoView 400 easily. Should you require
further assistance, please consult your Installer/User Guide.
1. Power down all computers that will be part of your AutoView 400 system.
Connecting your Local Peripherals
2. Locate your keyboard, video monitor and mouse.
3. Plug your VGA monitor cable into the port labeled
on the back of your AutoView 400. Either plug
your Sun connector into the port labeled "SUN" or
plug your PS/2 keyboard cable and your PS/2 mouse
cable into the ports labeled
Connecting your Remote Peripherals
4. Plug a standard Category 5 Unshielded Twisted Pair cable (up to 500 feet) into the RJ-45 style modular jack
on the rear of the AutoView 400. Cybex C5T or Cybex P5T cable is strongly recommended to achieve best
performance and maximum distance. If you use a different Category 5 cable, make sure it is terminated to
the EIA (TIA) 568 B standard, commonly used for 10BaseT Ethernet.
5. Route the Category 5 cable to the location where you intend to place the secondary monitor, keyboard and mouse.
6. If you are using Remote
PS/2 peripherals
(Please see your installer/user guide for instruc-
tions on installing remote SUN peripherals.)
Place the LongView Receiver near the monitor and
connect your monitor, keyboard and mouse to the
connectors on the rear of the Receiver just as you
would connect them to your PC. Make sure you
connect your monitor's power supply to appropri-
ate electrical outlets. (Please note that the
connector on the rear of the Receiver is not used
in an AutoView 400 configuration. Do not connect
anything to the
7. Connect the Category 5 cable to the modular jack on the rear of the Receiver.
8. Connect the circular power plug from the wall mount power supply to the power port on the LongView Re-
ceiver. Then plug the power supply into a convenient electrical outlet. Verify that the Receiver's POWER light is
now lit.
Quick Installation Guide
and respectively.
connector on the rear of the Receiver.)
VGA VIDEO
PS/2 KEYBOARD PS/2 MOUSE
