Design and function

MIG/MAG welding

5.3 MIG/MAG welding
5.3.1

Assemble the wire guide

The Euro torch connector is factory-fitted with a guide tube for welding torches with steel liner. Conver-
sion is necessary if a welding torch with a steel liner is used!
• Operate welding torches with a liner > with a guide tube!
• Operate welding torches with a steel liner > with a capillary tube!
Depending on the wire electrode diameter or type, either a steel liner or liner with the correct inner
diameter must be inserted in the torch!
Recommendation:
• Use a steel liner when welding hard, unalloyed wire electrodes (steel).
• Use a chrome nickel liner when welding hard, high-alloy wire electrodes (CrNi).
• Use a plastic or teflon liner when welding or brazing soft wire electrodes, high-alloy wire electrodes or
aluminium materials.
Preparation for connecting welding torches with a spiral guide:

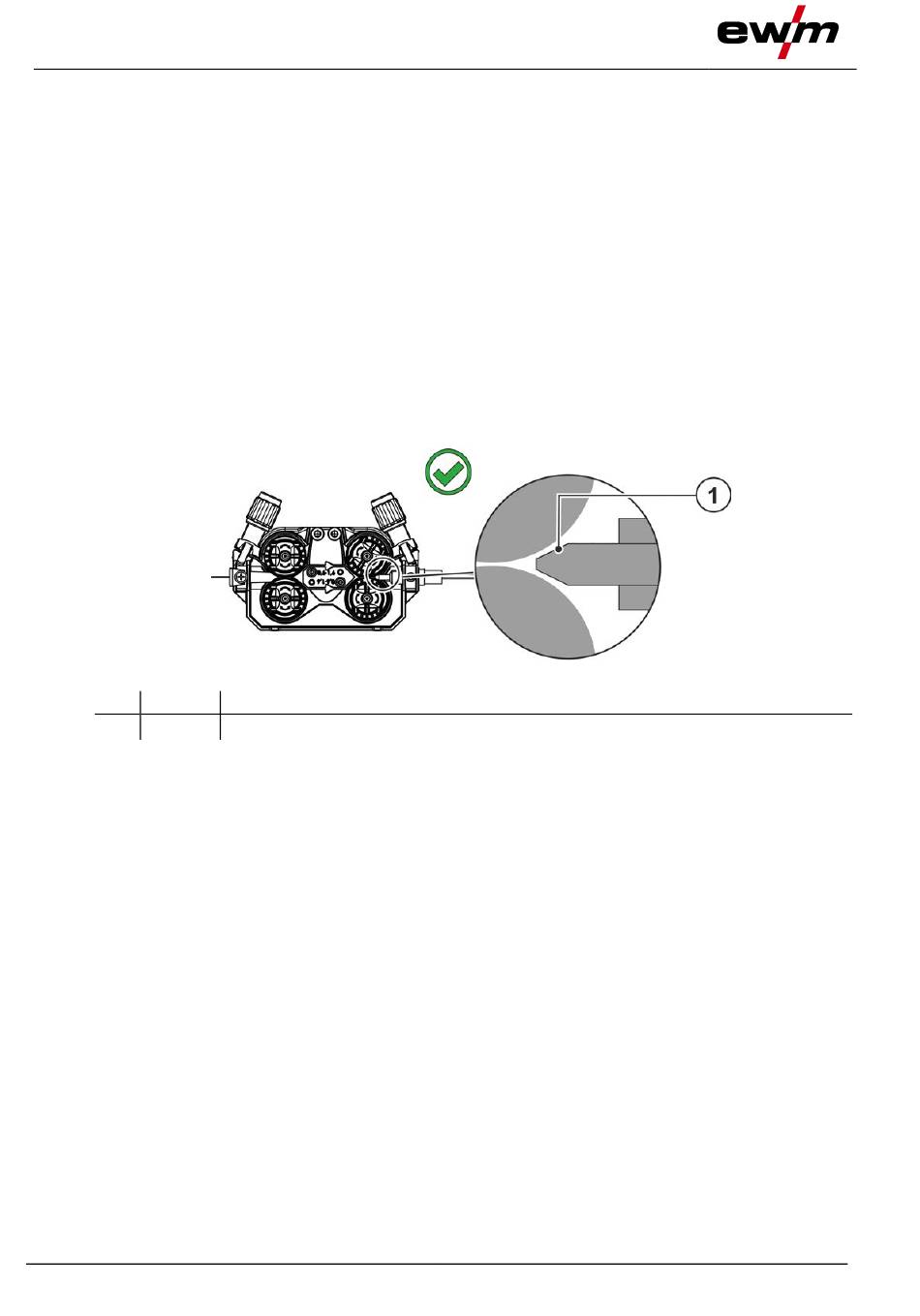

• Check that the capillary tube is correctly positioned in relation to the central connector!
Item Symbol
1
26
Description 0
Capillary tube > see 10 chapter
Figure 5-9
