2.2.2.2 Singlewire-enabled Speaker with Line Out
In Figure
connected directly to an auxiliary amplifier to drive additional horns or speakers. This is done
through the line-out connection.
AUX POWER (+)
(+12VDC @ 1A)
AUX POWER (-)
Operations Guide
2-8, for areas that require more speaker volume, the Singlewire-enabled Speaker can be

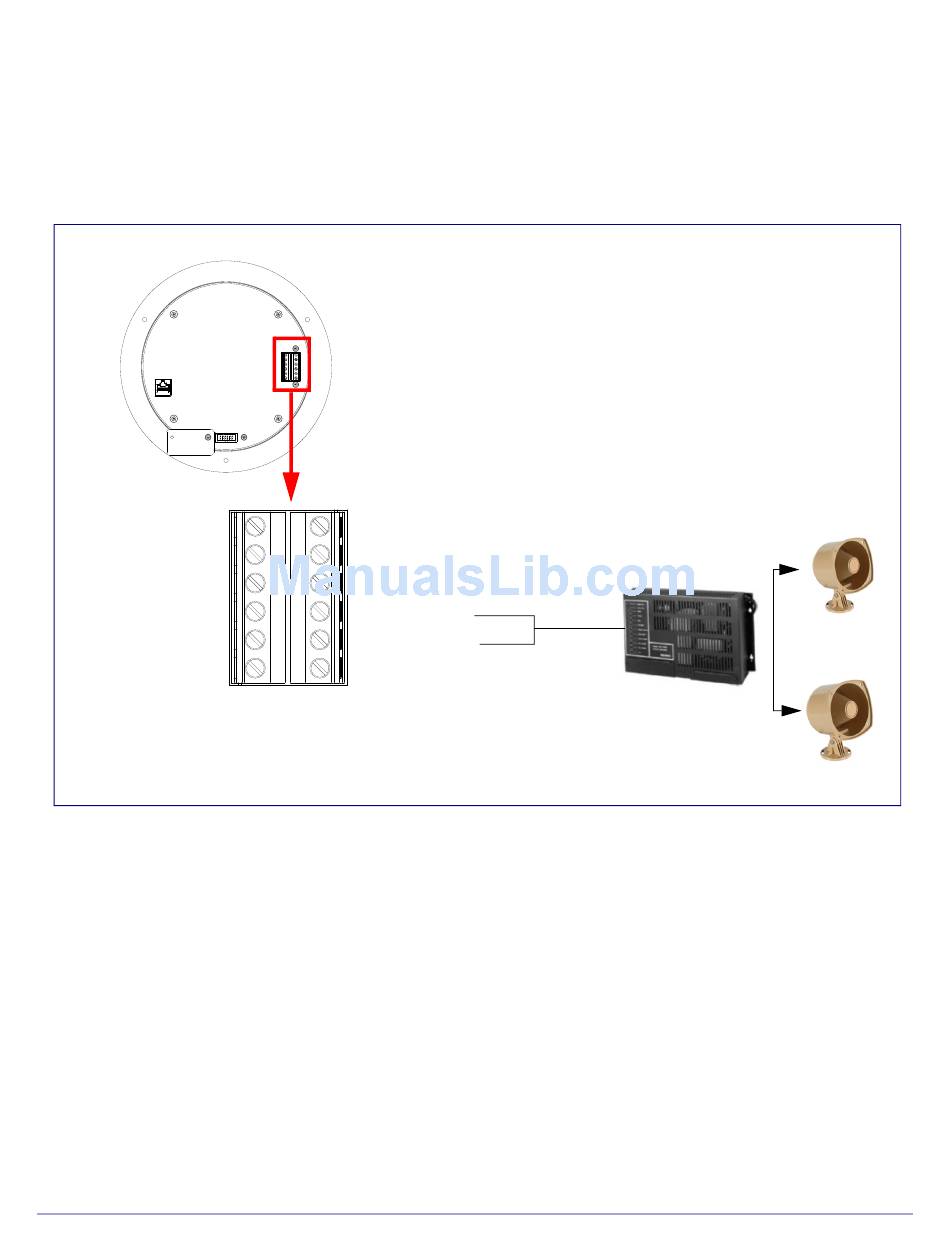

Figure 2-8. Singlewire-enabled Speaker with Line Out
Speaker
Office area in Factory
AUX SPEAKER (-)
AUX SPEAKER (+)
LINE OUT (-)
LINE OUT (+)
J9
J10
Line Out:
Output Signal Amplitudes 2.0 VPP maximum
Output Level +2dBm nominal
Total Harmonic Distortion 0.5% maximum
Output Impedance 10k ohm
930320G
Installing the Singlewire-enabled Speaker
Set Up and Test the Speaker
Amplifier
Factory Floor
