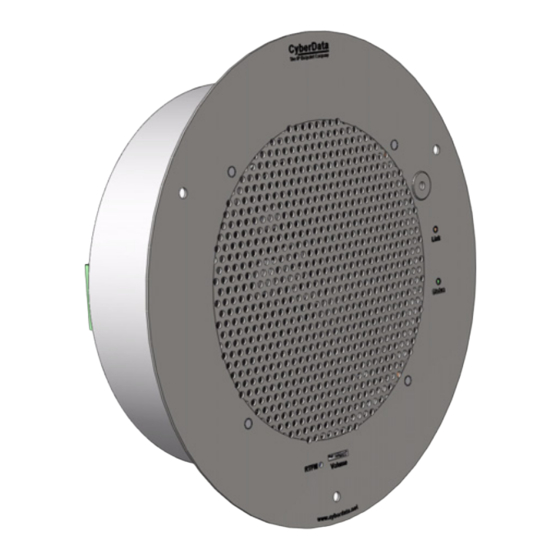

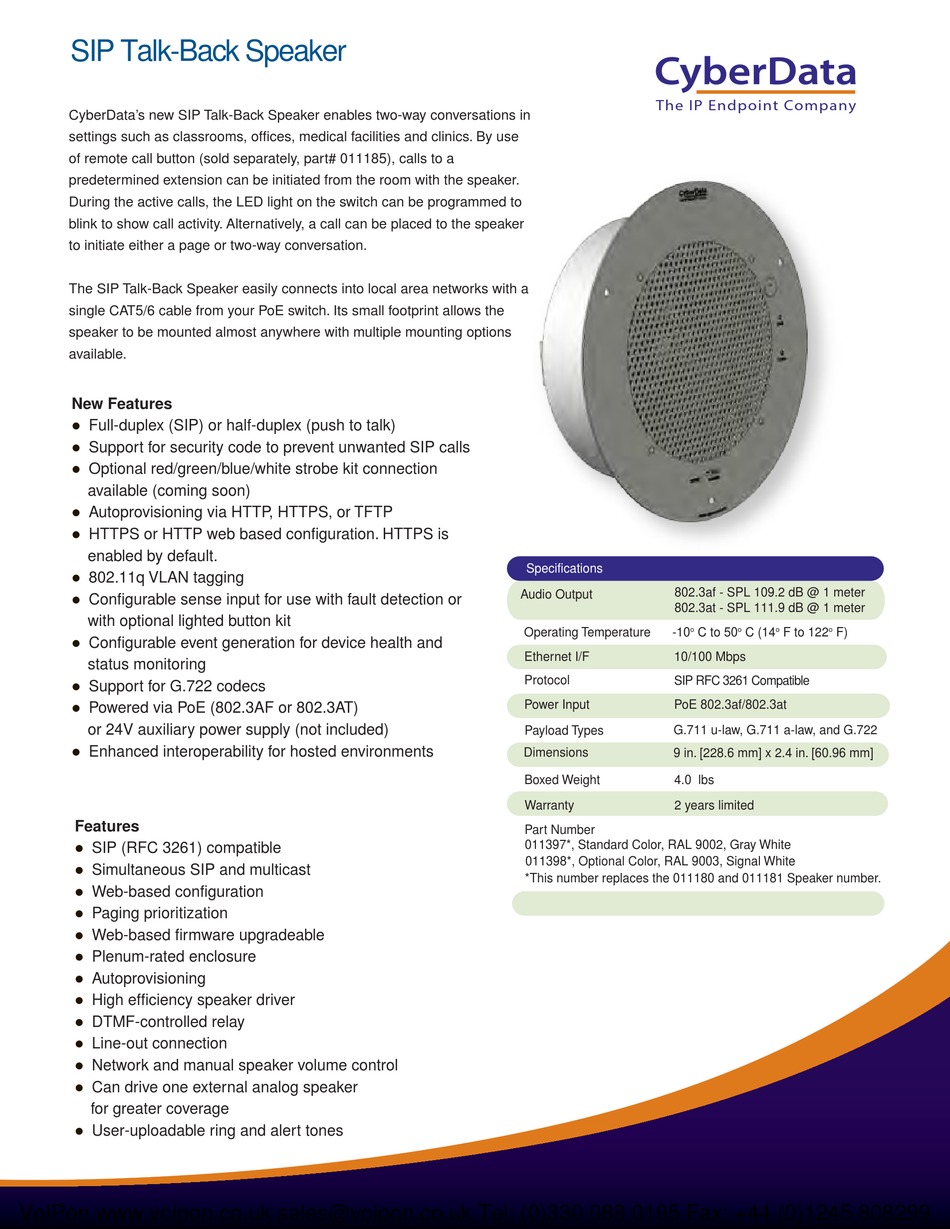

SIP Talk-Back Speaker
CyberData's new SIP Talk-Back Speaker enables two-way conversations in
settings such as classrooms, offices, medical facilities and clinics. By use
of remote call button (sold separately, part# 011185), calls to a
predetermined extension can be initiated from the room with the speaker.
During the active calls, the LED light on the switch can be programmed to
blink to show call activity. Alternatively, a call can be placed to the speaker
to initiate either a page or two-way conversation.
The SIP Talk-Back Speaker easily connects into local area networks with a
single CAT5/6 cable from your PoE switch. Its small footprint allows the
speaker to be mounted almost anywhere with multiple mounting options
available.
New Features
 Full-duplex (SIP) or half-duplex (push to talk)
 Support for security code to prevent unwanted SIP calls
 Optional red/green/blue/white strobe kit connection
available (coming soon)
 Autoprovisioning via HTTP, HTTPS, or TFTP
 HTTPS or HTTP web based configuration. HTTPS is
enabled by default.
 802.11q VLAN tagging
 Configurable sense input for use with fault detection or
with optional lighted button kit
 Configurable event generation for device health and
status monitoring
 Support for G.722 codecs
 Powered via PoE (802.3AF or 802.3AT)
or 24V auxiliary power supply (not included)
 Enhanced interoperability for hosted environments
Features
 SIP (RFC 3261) compatible
 Simultaneous SIP and multicast

Web-based configuration
 Paging prioritization
 Web-based firmware upgradeable
 Plenum-rated enclosure
 Autoprovisioning
 High efficiency speaker driver
 DTMF-controlled relay
 Line-out connection
 Network and manual speaker volume control
 Can drive one external analog speaker
for greater coverage
 User-uploadable ring and alert tones
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299
The IP Endpoint Company
Specifications
802.3af - SPL 109.2 dB @ 1 meter
Audio Output
802.3at - SPL 111.9 dB @ 1 meter
Operating Temperature -10 o C to 50
Ethernet I/F 10/100 Mbps
Protocol
SIP RFC 3261 Compatible
Power Input PoE 802.3af/802.3at
G.711 u-law, G.711 a-law, and G.722
Payload Types
Dimensions 9 in. [228.6 mm] x 2.4 in. [60.96 mm]
Boxed Weight 4.0 lbs
Warranty 2 years limited
Part Number
011397*, Standard Color, RAL 9002, Gray White
011398*, Optional Color, RAL 9003, Signal White
*This number replaces the 011180 and 011181 Speaker number.
o C (14 o F to 122 o F)
