CyberData 011121 Installation Quick Reference

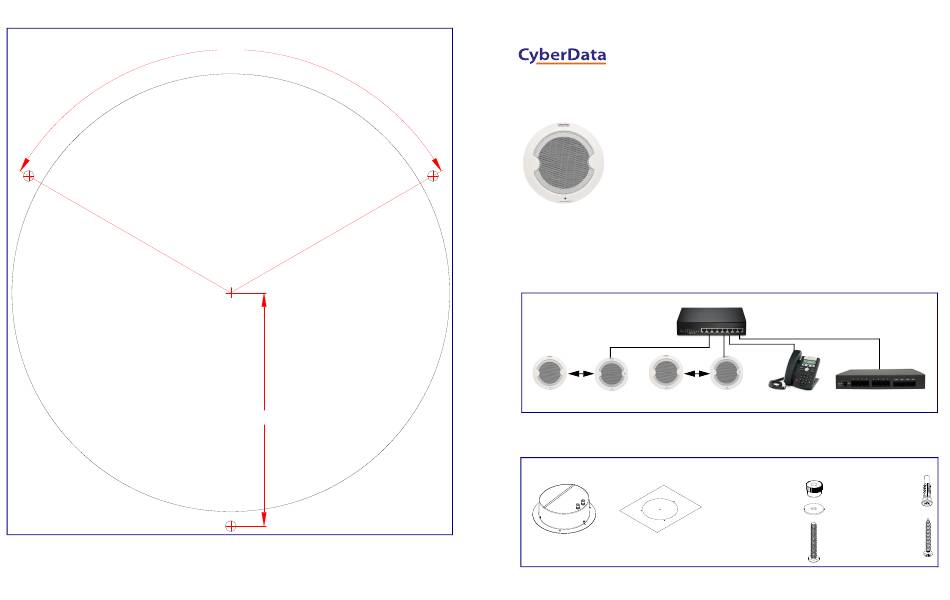

Mounting Template
Mounting Template
Speaker Hole Diameter:
Screw Hole Diameter:
Dimensions are in inches [millimeter]
Printing Instructions: Before printing this document or the mounting template, check the following:
• Make sure that the Paper Size setting of the printer is set to 11"x 17".
• Make sure that the Page Scaling setting of the printer is set to NONE (with no scaling [1:1])
• Print on 11" x 17"-sized paper.
© 2023, CyberData Corporation, ALL RIGHTS RESERVED
120°
VoIP Speaker
7.50 [190.5]
0.1875 [4.75]
4.00 [101.6]
932012B
The IP Endpoint Company
Getting Started
• Create a plan for the locations of your Speakers.
• Prior to installation, consult local building and electrical code requirements.
Typical System Installation
Auxiliary Speaker
Parts
(1) Speaker Assembly
Quick Reference Quick Reference
Installation Quick Reference

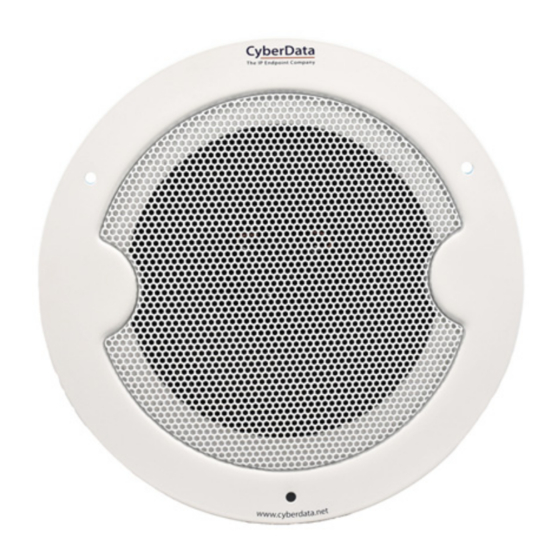

Auxiliary Analog Speaker
011121
The Auxiliary Analog Speaker is an option for the CyberData SIP or InformaCast Enabled
Speakers to extend the coverage area.
When connecting the Auxiliary Analog Speaker to the SIP or InformaCast Enabled Speaker, the
total speaker wattage is the same. However, by adding this Auxiliary Analog Speaker, additional
coverage can be realized.
The Auxiliary Analog Speaker can be mounted with the same mounting hardware options
available for the SIP or InformaCast Enabled Speakers.
802.3af/at Compliant Ethernet Switch
IP Speaker Auxiliary Speaker IP Speaker
(1) Template for Speaker (1) Drop Ceiling Mounting Kit
and Screw Holes*
(3) #8 Nylon Thumb Nuts
(3) #8 Fender Washers
(3) 8-32 x 1 1/4" Mounting
Screws
* See the last page
of this document
932012B © 2023, CyberData Corporation, ALL RIGHTS RESERVED
IP Phone IP PBX Server
(1) Drywall Mounting Kit
(3) Plastic Ribbed Anchors
(3) #6 Sheet Metal Screws
