ASSEMBLY

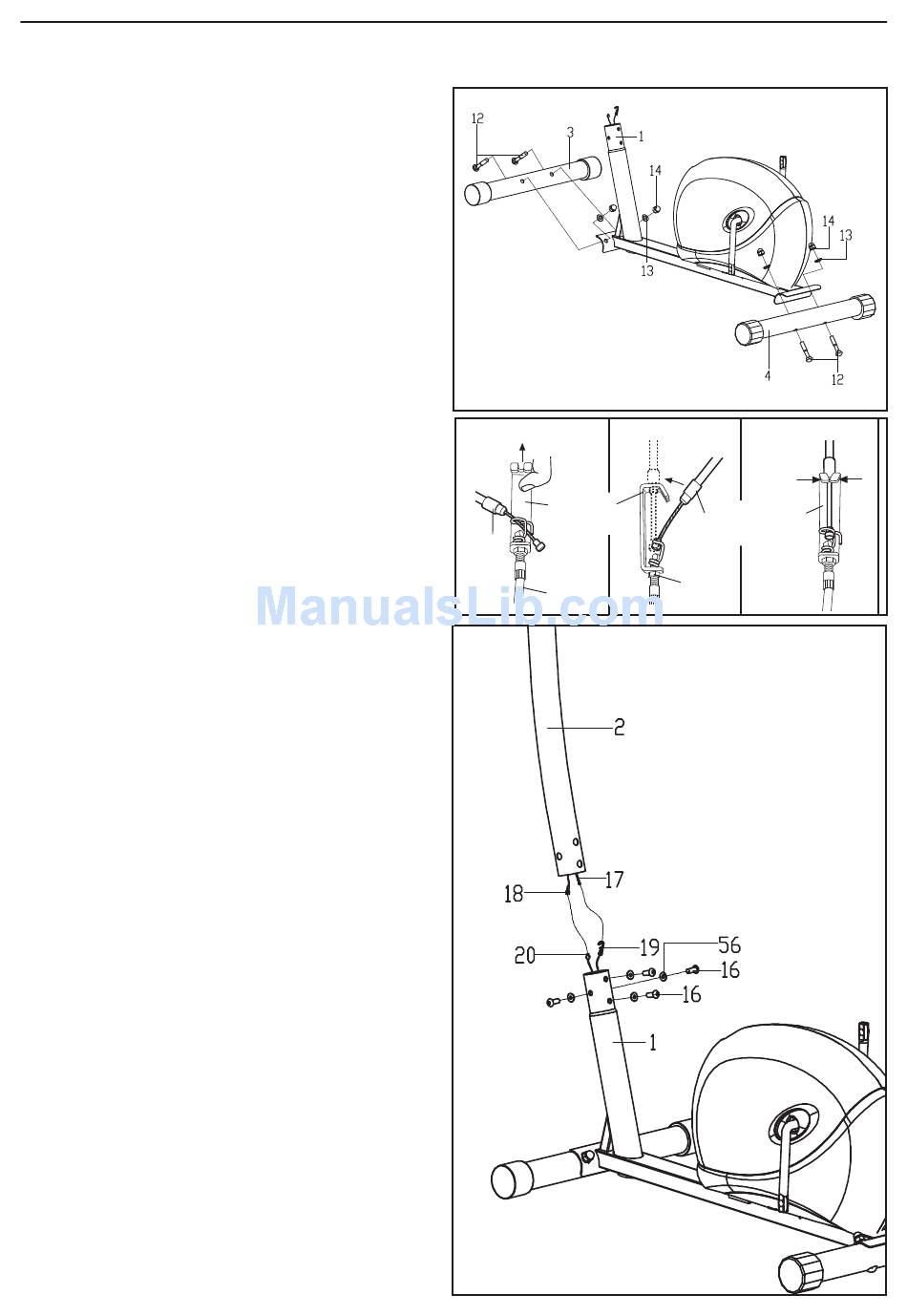

STEP 1
Fix the Front stabilizer (3) and Rear stabilizer (4)
to the Main frame (1) with Carriage bolt (12), Arc
washer (13) and Acorn nut (14)
A C
B
STEP 2
Metalic
Metalic
17 6
support
support
While another person holds the Upright (2) near
17 6
the Frame (1), connect the Extension Wire (20) to
the sensor Wire (18).
19
9
19
9
Next, connect the Resistance Cable (17) to the
Lower Cable (20) in the following way:
• See drawing A. Pull upward on the metal bracket
on the Lower Cable (19), and insert the tip of the
Resistance Cable (17) into the wire clip inside the
metal bracket as shown.
• See drawing B. Firmly pull the Resistance Cable
(17) upward and slide it into the top of the metal
bracket as shown.
• See drawing C. Using pliers, squeeze the prongs
on the upper end of the metal bracket together.
Push the Wires (20,18) and the Cables (17, 20)
downward into the Frame (1).
Tip: Do not pinch the wires and cables. Insert the
Upright (2) into the Frame (1). Attach the Upright
with three Screws (16) and three Washers (56).
4
