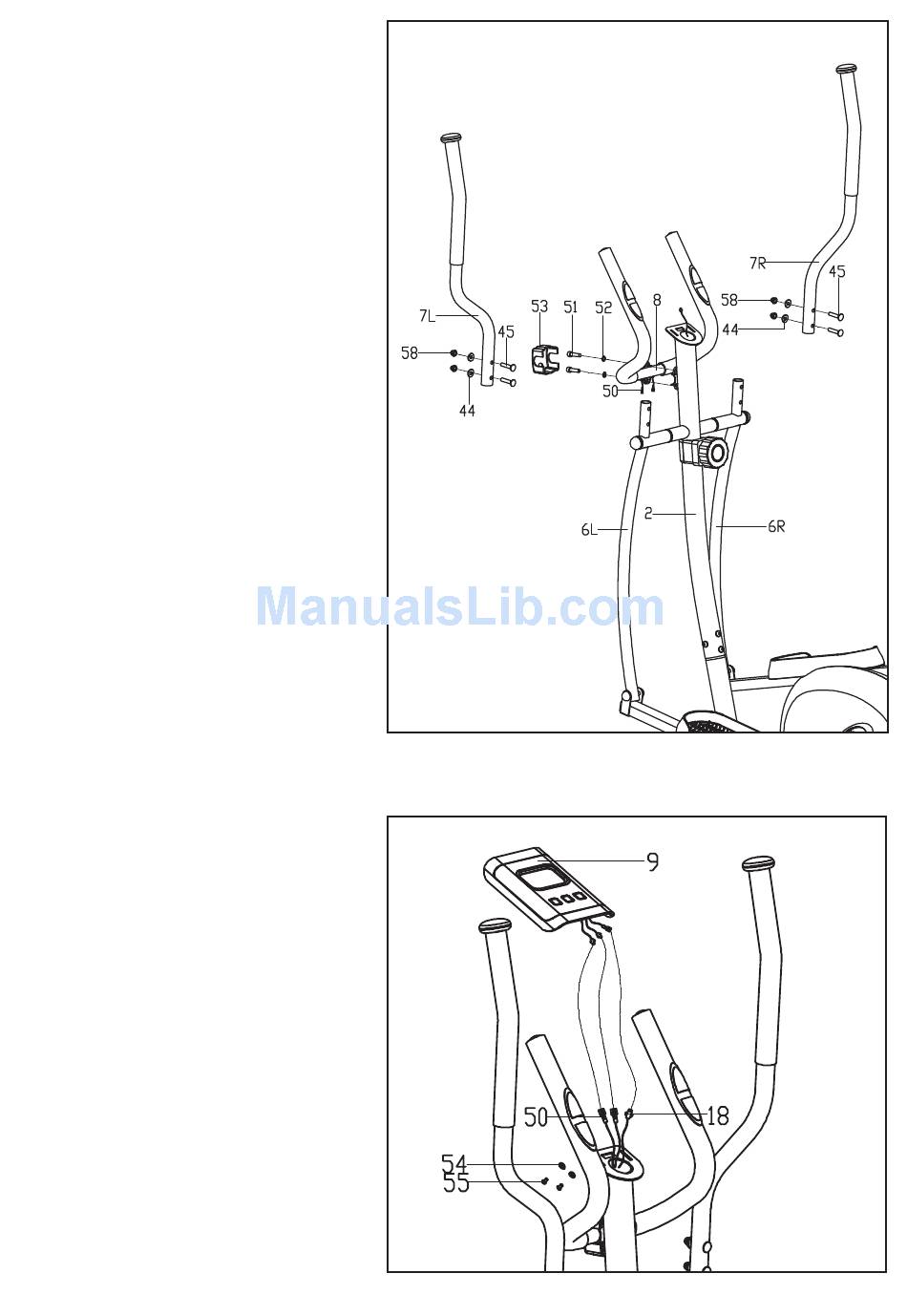

STEP 4
A: Put the Pulse sensor wire (50) through
the handlebar post (2) and then out of the
hole of the computer bracket.
Fix the armrest (8) on the handlebar post
(2) with Hex screw (51) and Spring washer
(52) and then cover the Handlebar chuck
cover (53) to the related position.
B: Attach the Handlebar (7L/R) to the Swing
bar (6L/R) using Carriage bolt (45), Arc
washer (44) and Acorn nut (58).
STEP 5
Connect the Pulse sensor wire (50) and
Extension wire (18) with the wires coming
from the Computer (9), and then fix the
Computer (9) onto the computer bracket
of the Handlebar post (2) with Cross screw
(55) and Flat washer (54).
