3. Fill the tank with at least 190 L (50 US gallons) of clean
fresh water and close the cover.
Note: You can use a cleaning/neutralizing agent in
the water as needed. On the final rinse, use only clean,
clear water.
4. Start the engine.
5. With the shift lever in the Neutral position, engage the
PTO, and set the hand throttle.
6. Ensure that the agitation control valve is in the On
position.
7. Set both the master boom switch and boom control
switches to the On position to begin spraying.
8. Allow the water in the tank to spray out though the
nozzles.
9. Check the nozzles to ensure that they are all spraying
correctly.
10. Set the master boom switch to the Off position,
disengage the PTO, and stop the engine.
11. Repeat steps 3 through 10 at least 2 more times to
ensure that the spray system is fully cleaned.
12. Clean the strainer; refer to Cleaning the Suction
Strainer (page 42).
Important: If you used wetable powder chemicals,
clean the strainer after each tank.
13. Using a garden hose, spray off the outside of the
sprayer with clean water.
14. Remove the nozzles and clean them by hand. Replace
damaged or worn nozzles.
Using the InfoCenter LCD
Display

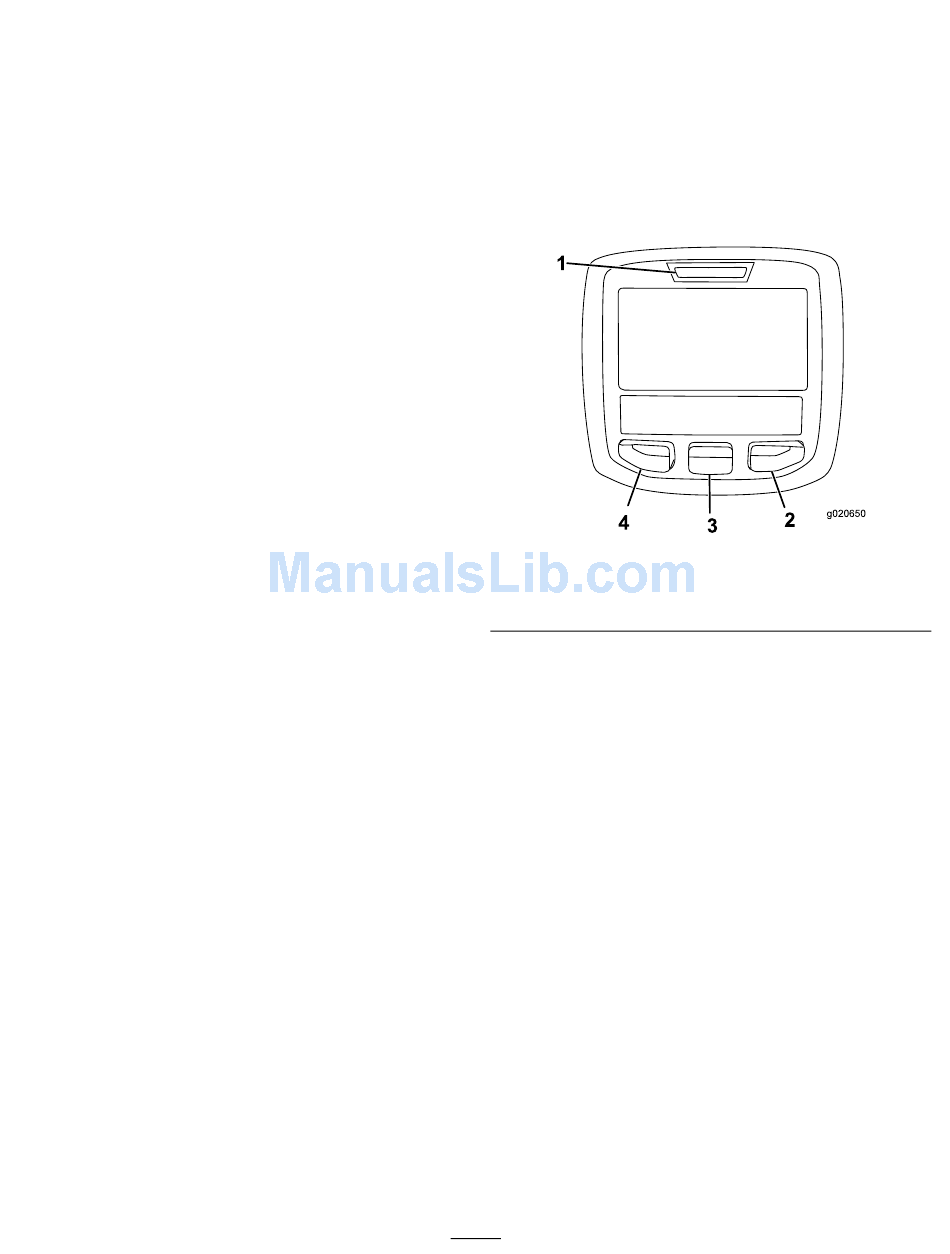

The InfoCenter LCD display shows information about your
machine, such as the operating status, various diagnostics,
and other information about the machine (Figure 37). There
is a splash screen and main information screen on the
InfoCenter. You can switch between the splash screen and
main information screen, at any time, by pressing any of
the InfoCenter buttons and then selecting the appropriate
directional arrow.
1
4
1. Indicator light
2. Right button
•
Left button, Menu access/Back button—press this
button to access the InfoCenter menus. You can also use
it to back out of any menu you are currently using.
•
Middle button—use this button to scroll down menus.
•
Right button—use this button to open a menu where a
right arrow indicated additional content.
Note: The purpose of each button may change depending
on what is required at the time. Each button is labeled with
an icon displaying its current function.
31
g020650
2
3
Figure 37
3. Middle button
4. Left button
