Camera Connection - Brickcom FB-100Ap Series Hardware User Manual

5.2 Camera Connection

Note: If there is no DHCP server on the network, the camera will operate with the IP
address 192.168.1.245. Please make sure your computer's network interface is
configured to the same subnet as the camera.

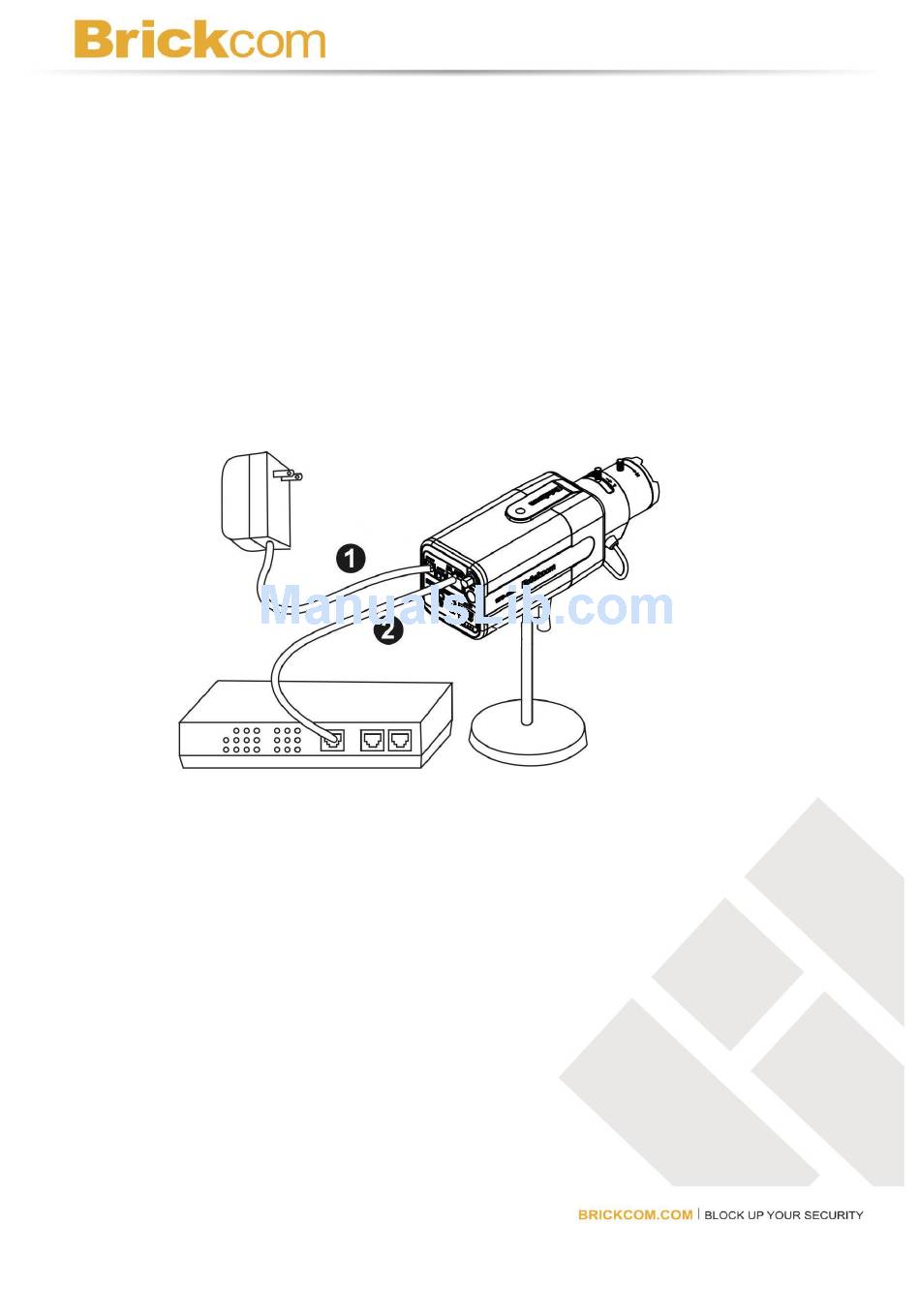

Connection to Non-PoE (Power over Ethernet) Switch or Router
1) Power the camera by plugging the power adaptor to the outlet and the DC jack to the
camera.
2) Connect the camera to the switch or router with the RJ-45 Ethernet cable.
* Upon power-on, the rear LEDs will be lit. Please refer to the LED indicators instruction
(chapter 3) on user manual for the definition of the LED colors.
15
