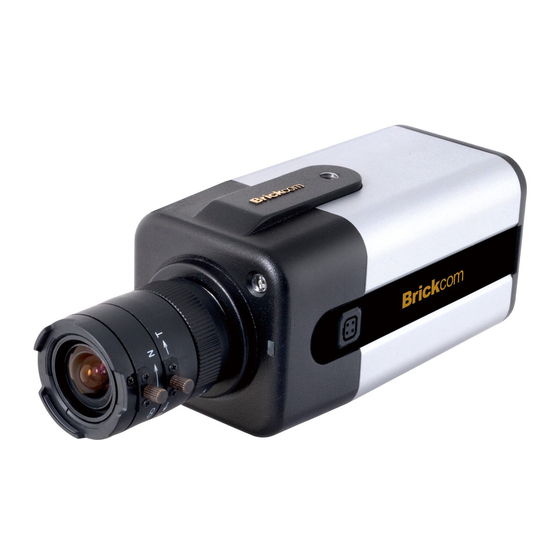

Brickcom FB-100A Series Quick Installation Manual
Megapixel day & night fixed box network camera
Hide thumbs
Also See for FB-100A Series:
- User manual (85 pages) ,
- Quick installation manual (23 pages) ,
- User manual (139 pages)
Advertisement
Quick Links
Download this manual
See also:
User Manual
Megapixel Day & Night
Fixed Box Network Camera
FB-100A Series
Quick Installation Guide
Quality Service Group
Advertisement
Related Manuals for Brickcom FB-100A Series
Summary of Contents for Brickcom FB-100A Series
-
Page 1: Quick Installation Guide
Megapixel Day & Night Fixed Box Network Camera FB-100A Series Quick Installation Guide Quality Service Group... - Page 2 Read Before You Use Power camera device immediately if it starts smoking or smells unusual. Power camera device immediately camera exposed to rain or liquid. Do not set the camera device near any heat sources. (Ex: television and oven) Keep the camera device away from direct sunlight.
- Page 3 Do not set the camera device in any wet and humid environments. Do not set the camera device on unsteady surfaces. Do not attempt to dismantle the camera device. Do not drop or hit the camera device. 10. Do not use the camera device when there is lightning.
- Page 4 1. Check Package Contents a. FB-100A b. CS mount Lens (Optional) c. Product CD d. Camera Stand e. Warranty Card f. Power Adapter g. Detachable Antenna (WFB-100A) h. Quick Guide...
- Page 5 2. Device Description <Front Panel> Light Sensor Status LED WPS LED (WFB-100A Only) Built-in Microphone <Rear Panel> Ethernet RJ45 10/100 Socket Power Connector (AC24V in) (Link/Power LED embedded) Power Connector Detachable Antenna (DC12V in) (WFB-100A Only) Auto Iris Connector WPS Button SD/SDHC (WFB-100A Only) Card Slot...
- Page 6 3. Optional for CS Mount Lens <Optional Lens> <Vari-focal Lens with Manual Iris> --- CS Mount Iris Controller Focus Controller Zoom Controller <Optional Lens> <Vari-focal Lens with Auto Iris (DC Drive)> --- CS Mount Zoom Controller Focus Controller...
- Page 7 4. Connecting the CS-Mount Lens to the Camera <Vari-focal Lens with Manual Iris> --- Optional Lens Connect the CS-mount lens to the camera by turning it clockwise onto the camera mount until it stops. If necessary, adjust the iris controller, focus controller, and zoom controller to get the best resolution.
- Page 8 <Vari-focal Lens with Auto Iris> --- Optional Lens Connect the CS-mount lens to the camera by turning it clockwise onto the camera mount until it stops. If necessary, adjust the iris controller, focus controller, and zoom controller to get the best resolution. Connect the lens cable plug (DC Iris control cable) to the camera side connector.
- Page 9 5. System Requirements Operating System: Microsoft Windows XP Home Edition SP2 Microsoft Windows XP Professional SP2 Computer: IBM PC/AT Compatible CPU: Pentium 3GHz or faster Memory: 1024 MB or more Monitor: 1024 x 768 pixels or more, 24-bit True color or better Network Interface: 10/100Mbps Network interface card must be installed Web Browser:...
- Page 10 6. Camera Connection Basic Connection (Without PoE) To attach external devices, such as sensors and alarms, connect them to the extension I/O terminal block. Connect the camera to a switch using an Ethernet cable. Connect the supplied power cable to the camera and plug it into a power outlet.
- Page 11 Power over Ethernet (PoE) Connection The FB-100A is PoE compliant, so there are two options for connecting the camera to a power and Ethernet source. The camera can either be connected to a PoE-enabled switch or a non-PoE switch. A. If using a PoE-enabled switch: Use a single Ethernet cable to connect the camera to the PoE-enabled switch.
- Page 12 1. Insert the Installation CD into the CD-ROM driver. Run Auto-run Tool directly from the CD-ROM to start the installation. When installing the Brickcom software kit for the first time, select the desired language for the interface. The available languages are listed in the scroll box. Click “Install”...
- Page 13 2. In the Install Shield Wizard dialog box, click <Next> to continue. 3. Read the End-User License Agreement and check the option “I accept the terms of the license agreement”. Click <Next> to continue.
- Page 14 4. Select the appointed folder where setup will install files to. Click <Change> to modify the installation directory. Click <Next> to continue. 5. Select either “Complete” setup type or “Custom” setup type to install the system. a. If COMPLETE SETUP TYPE is selected: i.
- Page 15 Select to create shortcuts. Click <Next> to continue. The installation information will be displayed. Click <Next> to continue.
- Page 16 b. If CUSTOM SETUP TYPE is selected: i. This option is recommended for advanced users. It can be used to install the system to a preferred directory or to select specific program feature(s). ii. Check the option “Custom”, and then click <Next>. iii.
- Page 17 Select the appointed folder where setup will install files to. Click <Change> to modify the installation directory. Click <Next> to continue. iv. Select to create shortcuts. Click <Next> to continue.
- Page 18 v. The installation information will be displayed. Click <Next> to continue. 6. Select either EasyConfig or PC-NVR Standard to launch. If the PC-NVR program is launched, please refer to the PC-NVR user manual.
- Page 19 If Custom setup type was used in software installation and an EasyConfig icon was not installed on the desktop, the program should be installed under C:\Program Files\Brickcom\EasyConfig unless the program was saved to a preferred directory. 1. Click <Start> to continue. The program will automatically search for the network camera in the intranet.
- Page 21 2. The user can either select simple mode or professional mode for the network camera IP setting. If the simple mode is selected, the easy configuration program will set up the connection automatically. If the professional mode is selected, the user will need to configure the IP manually.
- Page 22 3. There may be many Network Cameras in the local network. The user can differentiate the Network Cameras with the UPnP name. Double click on the desired Network Camera from the survey list to connect. 4. Enter the username and password of the camera. For first time use, the default username and password are “admin/admin.”...
- Page 23 5. For selecting the IP address settings, the user can either select <Settings remains the same>, <Automatically obtain an IP Address (DHCP)> or <Set IP Address configuration manually>. The DHCP setting is recommended. If the user wants to set the IP address manually, please refer to the product user manual.
- Page 25 6. If the network camera supports the EasyLink function, the following page will be displayed. Otherwise, this page will not be shown. *Click <Skip> to skip this setting. EasyLink enables network cameras to come with everything necessary to quickly add a surveillance camera to a home or small office network. To view what the camera is seeing, simply log on to mybrickcom.com, choose the device’s domain name which was created by the user, and start viewing.
- Page 26 • For Refresh Time, select a desired amount of time from the drop-down menu to confirm the connection status. • When finished, click the arrow button to continue.
- Page 27 7. When the IP address settings have been made, the screen will either display a successful or failed connection message. If the connection failed, the user can either try again or quit the installation. a. If the DHCP IP address setting was selected, the failure page will be displayed as below: b.
- Page 28 c. If the connection was successful, the user will see the message: Congratulations. The installation of the camera is complete. When this window is displayed, the user can click <X> in the top right corner of the screen to close the installation window, click <PC-NVR> to start the PC-NVR program or, click <Live View>...
