Brickcom FB-100Ap Series Hardware User Manual page 10

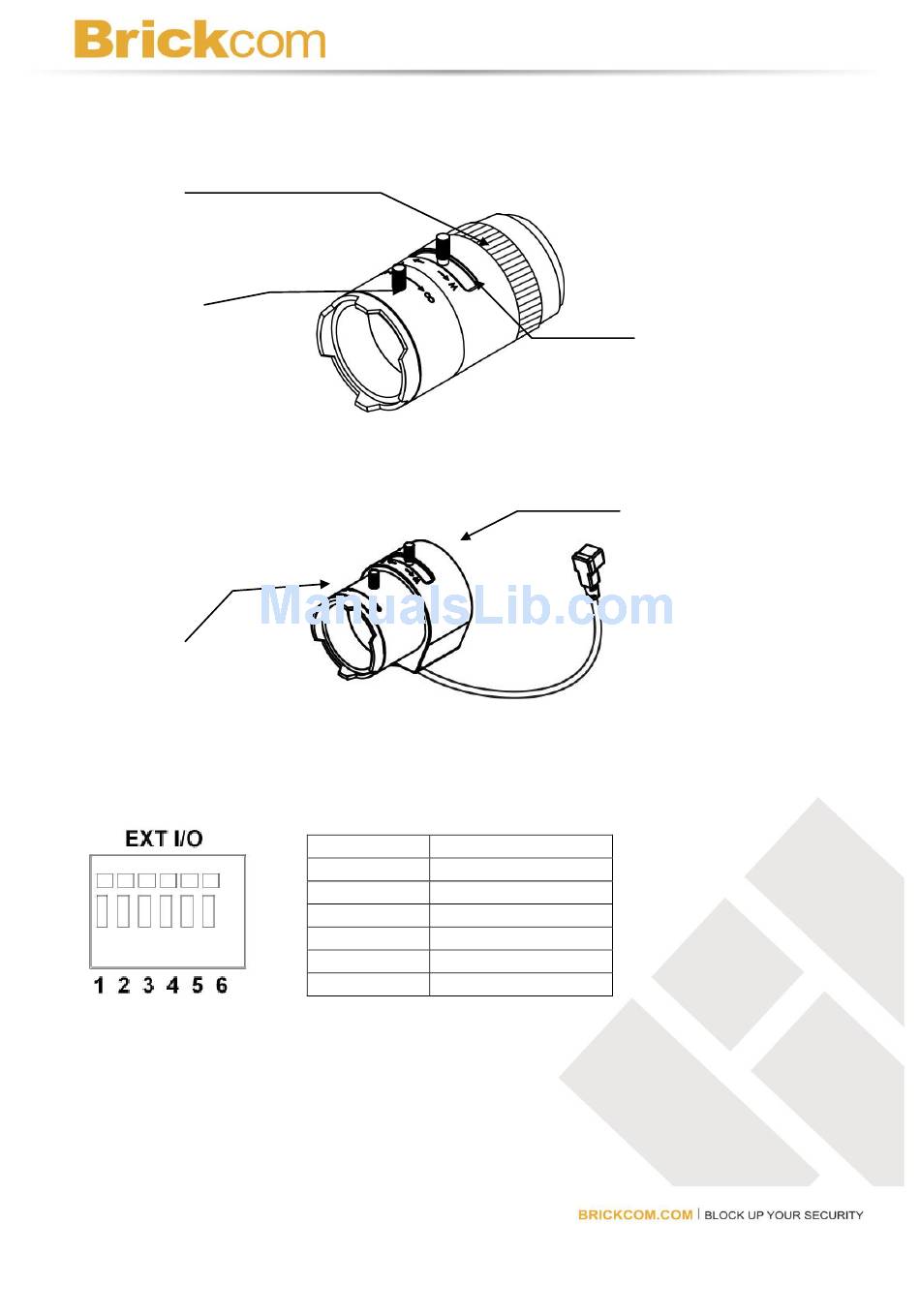

CS Mount Lens -Optional
<Vari-focal Lens with Manual Iris> --- CS Mount
Iris Controller (*)
Focus Controller
<Vari-focal Lens with Auto Iris> (DC Drive) --- CS Mount
Focus Controller
Extension I/O Terminal Block
The Network Camera provides an extension I/O terminal block which is used to connect
the camera with external input/output devices. The pin definitions are listed as below.
DI/DO Diagram
<Optional Lens>
Pin Function
1 Power +5V /12V*
2 Digital Output
3 Digital Input
4 Ground
5 RS-485 -
6 RS-485 +
*V5&V6 (WDRPro & Star & StarPlus) Series Supported
