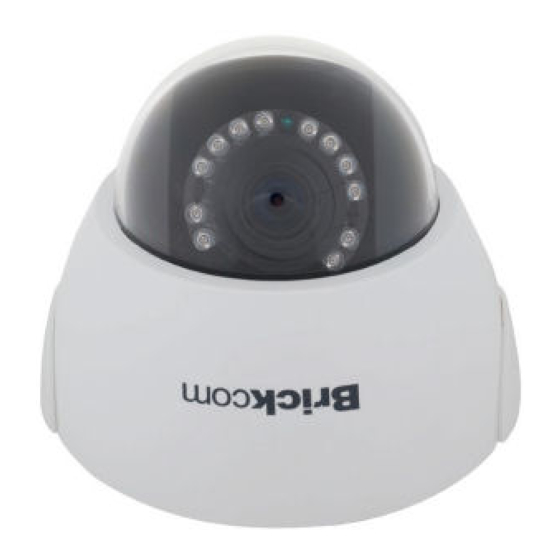

Brickcom FD-100A Series Quick Installation Manual

Megapixel day & night fixed dome network camera
Hide thumbs Also See for FD-100A Series:

Advertisement

Quick Links

Download this manual See also: User Manual
Megapixel Day & Night
Fixed Dome Network Camera
FD-100A Series

Quick Installation Guide

Quality Service Group

Advertisement

loading

Related Manuals for Brickcom FD-100A Series

Summary of Contents for Brickcom FD-100A Series

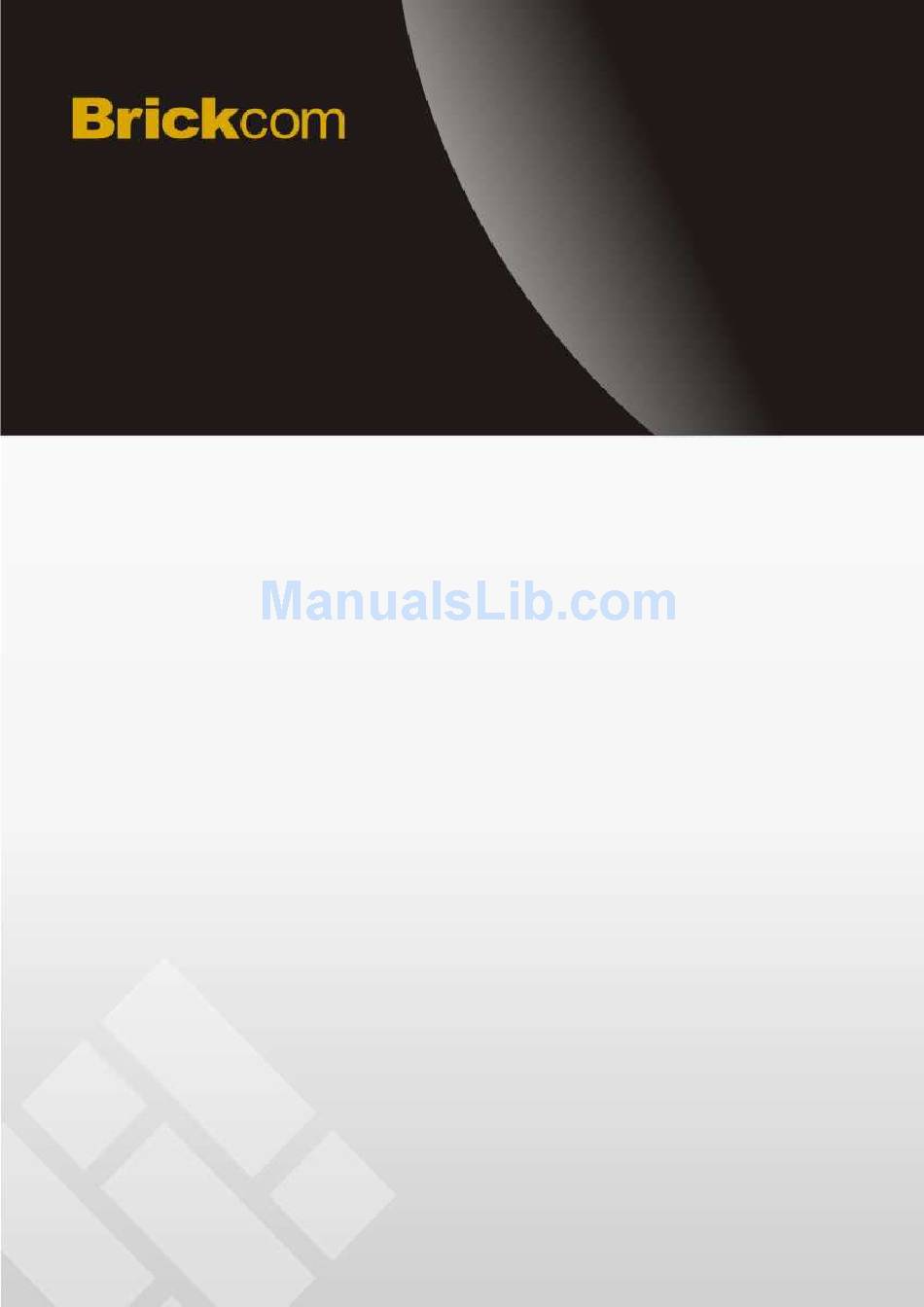

  • Page 1: Quick Installation Guide

    Megapixel Day & Night Fixed Dome Network Camera FD-100A Series Quick Installation Guide Quality Service Group...
  • Page 2 Read Before You Use 1. Power off the camera device immediately if it starts smoking or smells unusual. 2. Power off the camera device immediately if the camera is exposed to rain or liquid. 3. Do not set the camera device near any heat sources.
  • Page 3 6. Do not set the camera device in any wet and humid environments. 7. Do not set the camera device on unsteady surfaces. 8. Do not attempt to dismantle the camera device. 9. Do not drop or hit the camera device. 10.
  • Page 4 1. Check Package Contents a. FD-100A b. Power Adapter c. Product CD d. Location Sticker e. Warranty Card f. Screws bag g. Quick Guide...
  • Page 5 2. Device Description...
  • Page 6 3. System Requirements Operating System: Microsoft Windows XP Home Edition SP2 Microsoft Windows XP Professional SP2 Computer: IBM PC/AT Compatible CPU: Pentium 3GHz or faster Memory: 1024 MB or more Monitor: 1024 x 768 pixels or more, 24-bit True color or better Network Interface: 10/100Mbps Network interface card must be installed Web Browser:...
  • Page 7 4. Hardware Installation 4.1 Remove the dome cover from the camera device. For ceiling installation: 4.2 The user needs the two screws which are included in the product package and a screwdriver. Mount the camera on the desired location and use the screwdriver to tighten the screws clockwise through the two holes on each side of the device as shown below.
  • Page 8 For wall installation: 4.3 Chose the location on the wall to place the camera. Attach the location sticker to the desired spot. 4.4 Drill two holes through the center of the two location holes on the sticker. 4.5 Hammer the two plastic anchors which are provided in the product package into the two location holes.
  • Page 9 5. Camera Connection 5.1 Basic Connection (Without PoE) 5.1.1 Connect the power adaptor to the camera device. 5.1.2 Connect the camera to the Ethernet hub using a RJ45 Ethernet cable. 5.2 Power over Ethernet (PoE) Connection 5.2.1 Connect the camera to a PoE-enabled hub via single Ethernet cable.
  • Page 10 6. Adjust the Lens focus range and zoom viewing 6.1 How to adjust the Lens angle? 6.1.1 Release the pan screw and then rotate the lens to left or right. After completion, tighten the pan screw. 6.1.2 Release the tilt screw on both side of the device and then rotate the lens to up or down.
  • Page 11 6.2 How to adjust the view angle and focus range 6.2.1 Release the view angle controller and then moving the controller bar left or right to adjust the view angle. After completion, tighten the view angle controller. 6.2.2 Release the focus controller and then moving the controller bar left or right to adjust the focus range.
  • Page 12 7. Complete the Installation 7.1 Turn the visible dome cover slowly until it gets the best position. 7.2 Use the screwdriver and attached two dome screws to lock the dome cover with camera device securely.
  • Page 13 1. Insert the Installation CD into the CD-ROM driver. Run Auto-run Tool directly from the CD-ROM to start the installation. When installing the Brickcom software kit for the first time, select the desired language for the interface. The available languages are listed in the scroll box. Click “Install”...
  • Page 14 2. In the Install Shield Wizard dialog box, click <Next> to continue. 3. Read the End-User License Agreement and check the option “I accept the terms of the license agreement”. Click <Next> to continue.
  • Page 15 4. Select the appointed folder where setup will install files to. Click <Change> to modify the installation directory. Click <Next> to continue. 5. Select either “Complete” setup type or “Custom” setup type to install the system. a. If COMPLETE SETUP TYPE is selected: i.
  • Page 16 Select to create shortcuts. Click <Next> to continue. The installation information will be displayed. Click <Next> to continue.
  • Page 17 b. If CUSTOM SETUP TYPE is selected: i. This option is recommended for advanced users. It can be used to install the system to a preferred directory or to select specific program feature(s). ii. Check the option “Custom”, and then click <Next>. iii.
  • Page 18 Select the appointed folder where setup will install files to. Click <Change> to modify the installation directory. Click <Next> to continue. iv. Select to create shortcuts. Click <Next> to continue.
  • Page 19 v. The installation information will be displayed. Click <Next> to continue. 6. Select either EasyConfig or PC-NVR Standard to launch. If the PC-NVR program is launched, please refer to the PC-NVR user manual.
  • Page 20 If Custom setup type was used in software installation and an EasyConfig icon was not installed on the desktop, the program should be installed under C:\Program Files\Brickcom\EasyConfig unless the program was saved to a preferred directory. 1. Click <Start> to continue. The program will automatically search for the network camera in the intranet.
  • Page 22 2. The user can either select simple mode or professional mode for the network camera IP setting. If the simple mode is selected, the easy configuration program will set up the connection automatically. If the professional mode is selected, the user will need to configure the IP manually.
  • Page 23 3. There may be many Network Cameras in the local network. The user can differentiate the Network Cameras with the UPnP name. Double click on the desired Network Camera from the survey list to connect. 4. Enter the username and password of the camera. For first time use, the default username and password are “admin/admin.”...
  • Page 24 5. For selecting the IP address settings, the user can either select <Settings remains the same>, <Automatically obtain an IP Address (DHCP)> or <Set IP Address configuration manually>. The DHCP setting is recommended. If the user wants to set the IP address manually, please refer to the product user manual.
  • Page 26 6. If the network camera supports the EasyLink function, the following page will be displayed. Otherwise, this page will not be shown. *Click <Skip> to skip this setting. EasyLink enables network cameras to come with everything necessary to quickly add a surveillance camera to a home or small office network. To view what the camera is seeing, simply log on to mybrickcom.com, choose the device’s domain name which was created by the user, and start viewing.
  • Page 27 • For Refresh Time, select a desired amount of time from the drop-down menu to confirm the connection status. • When finished, click the arrow button to continue.
  • Page 28 7. When the IP address settings have been made, the screen will either display a successful or failed connection message. If the connection failed, the user can either try again or quit the installation. a. If the DHCP IP address setting was selected, the failure page will be displayed as below: b.
  • Page 29 c. If the connection was successful, the user will see the message: Congratulations. The installation of the camera is complete. When this window is displayed, the user can click <X> in the top right corner of the screen to close the installation window, click <PC-NVR> to start the PC-NVR program or, click <Live View>...
