Electrical Connections

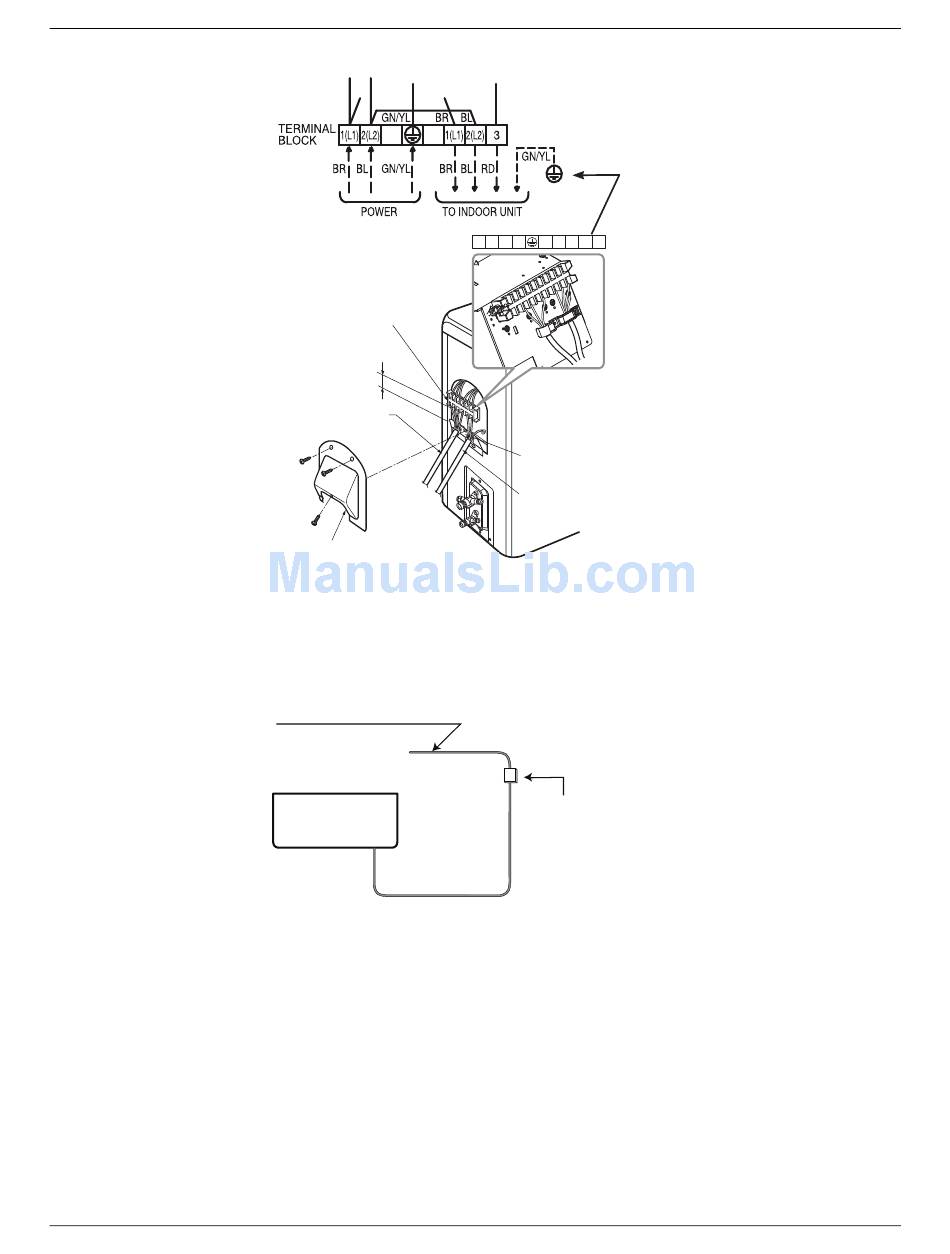

Figure 6-12 SRC24 and SRC36 outdoor-unit terminal-block connections

6. Use a recognized circuit breaker between the power source and the unit. A disconnecting device to
adequately disconnect all supply lines must be fitted.
Figure 6-13 shows an example of how a circuit breaker should be wired through the Liebert SRC system.

Figure 6-13 Circuit breaker wiring

® ™
Liebert SRC User Manual
Outdoor Unit
Terminal Block
Ov er 0.2"
Power Cord
Conduit Panel Cover
Main Power Source
Air
Conditioner
1(L1) 2(L2) 1(L1) 2(L2) 3
Conduit Panel
Connection/Communication
Cable (Leading to Indoor Unit)
Circuit Breaker
Use a circuit breaker
or time delay fuse
