EPSON Stylus Photo RX900

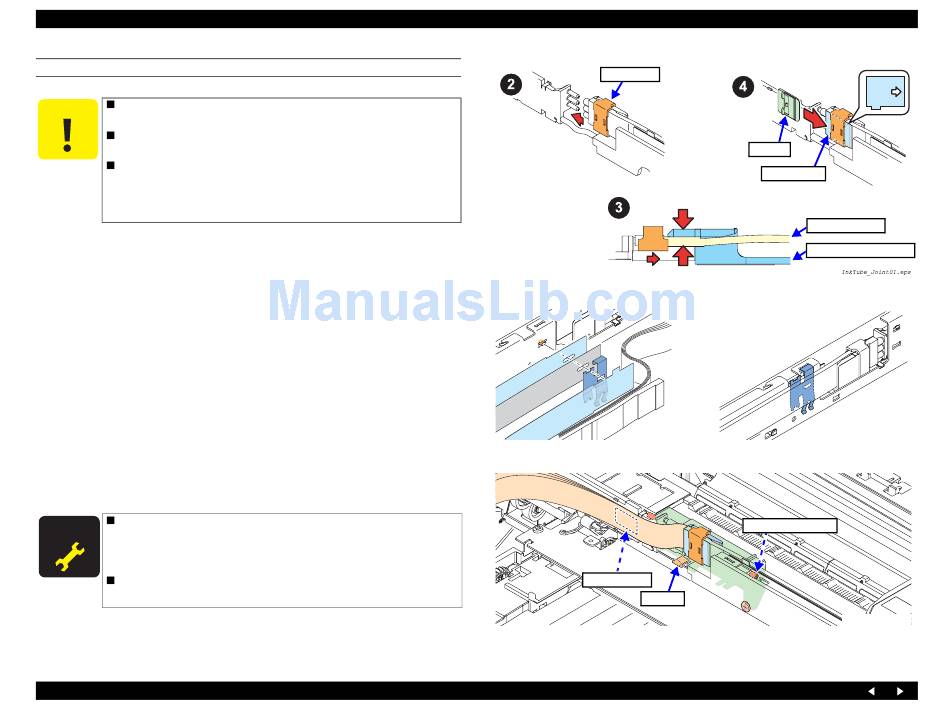

CONNECTION OF VALVE ASSY AND I/C HOLDER ASSY
In this process, there is a possibility of ink leakage. Take great
C A U T I O N
care not to stain any surrounding objects with ink.
The ink tubes are very delicate. Take due care not to bend or
whiten them by applying undue force.
The Joint Clamp, Spacer, Ink Joints (Black) x3, and Pressure
Tube (White) are likely to be damaged once they are removed.
Therefore, do not reuse them, but be sure to replace them with
new ones.
1. Engage the hooks (x2) of the Left I/C Holder Assy and hooks (x3) of the Right I/C
Holder Assy with the printer frame.
2. Put the Joint Clamp on the Ink Tube Assy and connect the ink tubes to the Left I/C
Holder Assy via the Ink Joints. (See Figure 4-25)
3. Connect the Ink Tube Assy to the Right I/C Holder Assy.
4. Set the Tube Spacer in place, and install the Spacer in the Joint Clamp.
5. Hang the Tube Guides 1 and 2 on the projection of the Right I/C Holder Assy.
6. Install the Tube Guide Ground Plate on the printer frame so as to hold the Tube Guides
1 and 2. (See Figure 4-26)
7. Insert the right and left shanks of the Tube Stopper into the printer frame, and engage
the hook and tighten the screw. (See Figure 4-27)
8. Fix the Head FFCs to the Left I/C Holder Assy with tape.
9. Elongate or contract the outermost Tube Guide made of Lumirror (polyester film)
around the area where it is installed, thus adjust its length to prevent the ink tubes from
being elongated or contracted excessively.
On the occasion of replacing the Valve Assy with a new one as
A D J U S T M E N T
R E Q U I R E D
required by a maintenance error, replace all the specified parts
with new ones and clear the counter value.
• 6.1.1 Maintenance Error (p.147)
Be sure to carry out Step 9 above so that the ink tubes are not
elongated or contracted excessively.
Disassembly and Assembly
(See Figure 4-23)
Connect the ink tubes to
the Left I/C Holder
Assy.
Connect the Ink Tube
Assy to the Right I/C
Holder Assy.
Figure 4-26. Installing the Tube Guide Ground Plate
Fix with tape
Removal of Exterior Parts
Joint Clamp
After connecting the
tubes, insert the Tube
Spacer and install the
Spacer.
Spacer
Tube Spacer
Install with the projection down
Figure 4-25. Connecting the Ink Tubes
Shank (right and left)
Hook
Figure 4-27. Installing the Tube Stopper
Revision A
Ink Tube Assy
Right I/C Holder Assy
