When installing the Middle Housing, lead out the connectors
and FFCs through the respective areas shown below in the
Middle Housing.
White (Relay Connector)
Yellow (PE Sensor Assy Connector)
Blue (CD-R Sensor 2 Connector)
White (APG Sensor Connector)
White (TPU Harness Connector)
FFC (PF Encoder)
FFC (Left I/C Holder)
Route the lead wires of the following
connectors under this hook:
• Yellow (PE Sensor Assy Connector)
• Blue (CD-R Sensor 2 Connector)
• White (APG Sensor Connector)
• Black (CD-R Sensor 1 Connector)
Disassembly and Assembly
FFCx4 (Head FFC)
FFC (CR Encoder Board)
Black (CD-R Sensor 1 Connector)
Red (Tray Cover Sensor Connector)
Install the ferrite core for the
CR Encoder FFC (CN3)

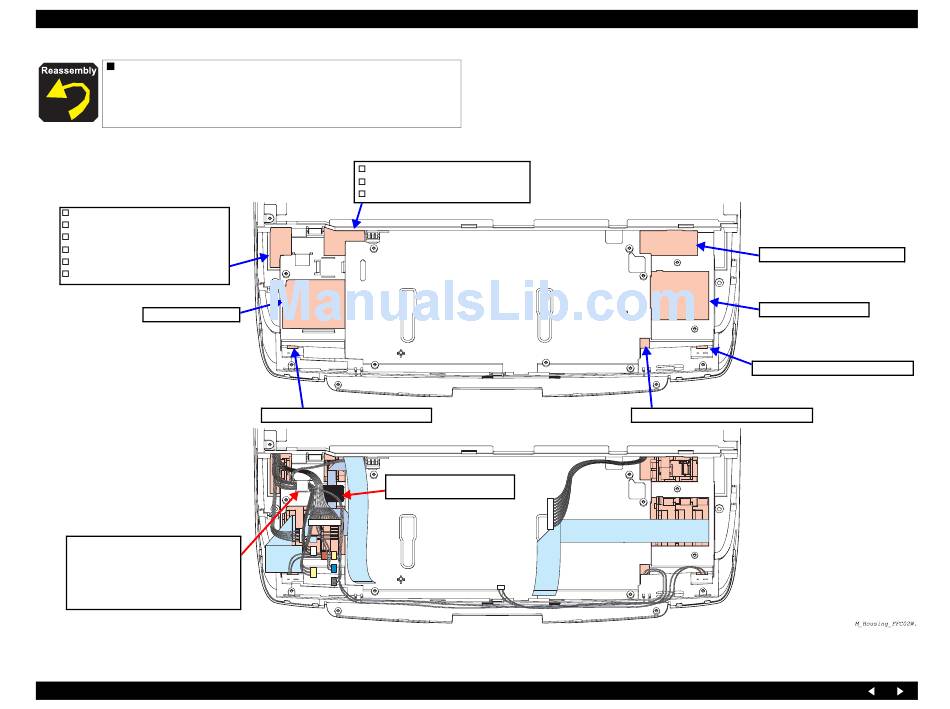

Figure 4-18. Routing of Lead Wires and FFCs
Removal of Exterior Parts
White (Power Supply Connector)
FFC (Right I/C Holder)
White (I/C Cover Sensor Connector)
Yellow (Tray Cover Sensor Connector)
