EPSON Stylus Photo RX900

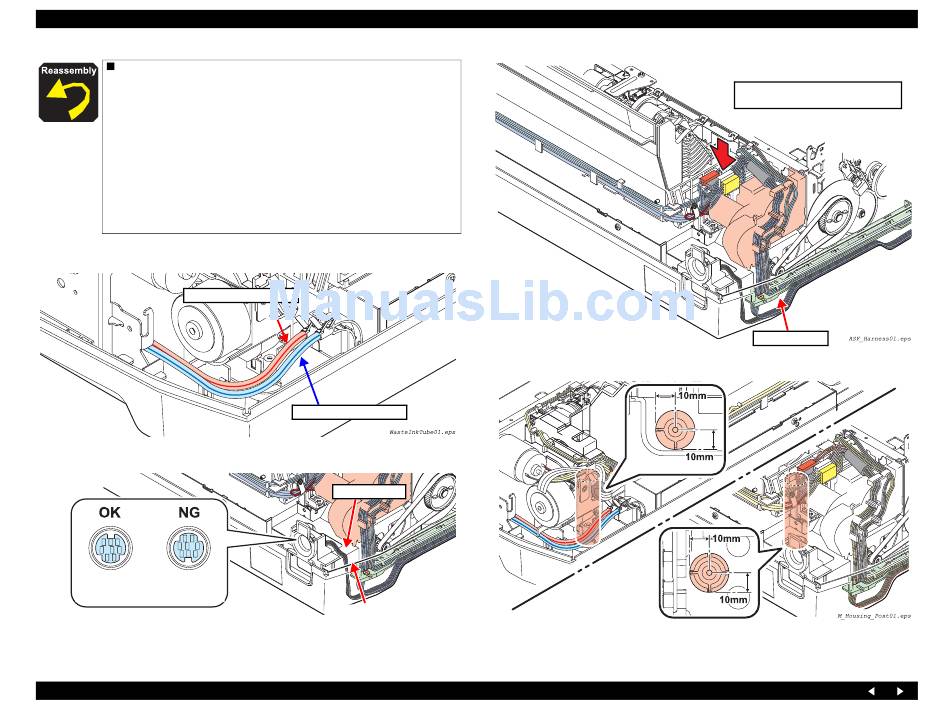

Before installing the Middle Housing, check the following
conditions for properness:
•
Connection of each Waste Ink Tube (x2) (See Figure 4-14)
•
Connector orientation and routing of TPU Harness
(See Figure 4-15)
•
Clearance around each post on the rear of the Middle
Housing (x2) (See Figure 4-17)
•
Placing of Relay Connectors (See Figure 4-16)
•
Use of Harness Clamp and fastening of lead wires
(See Figure 4-16)
•
Installation of Linear Scale
(Continued to next page)
Waste Ink Tube (Red)
Figure 4-14. Connection of the Waste Ink Tubes
Confirm the orientation of the
connector of the TPU Harness
Figure 4-15. Checking the TPU Harness
Disassembly and Assembly
Waste Ink Tube (Blue)
TPU Harness
Lead it out through here
Removal of Exterior Parts
Figure 4-16. Placing of Relay Connectors
Figure 4-17. Clearance around the Posts on the Middle Housing
Revision A
Push the Relay Connectors adequately
so that they will not rise.
Harness Clamp
