EPSON Stylus Photo RX900

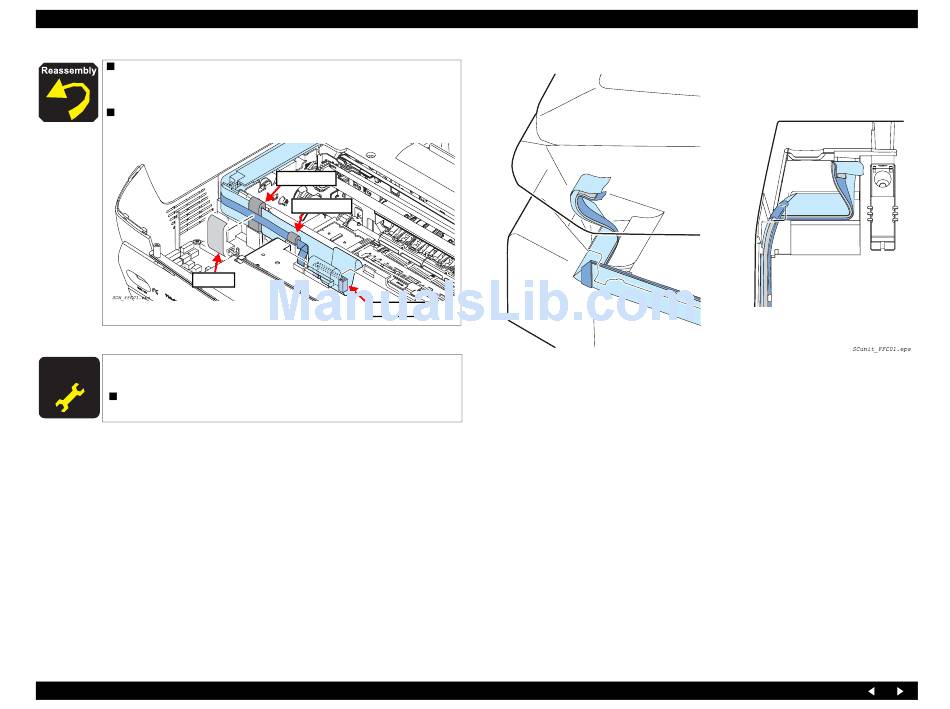

Locate the FFCs (x2) of the Scanner Unit as shown at right in
the Middle Housing so that the Scanner Unit can be opened
smoothly without folding the FFCs.
Install the ferrite cores (x2) and the FFC Clamp at the locations
shown below:
Tape
A D J U S T M E N T
Refer to the following section and perform the necessary
R E Q U I R E D
adjustments.
5.1.1 Adjustment Items (p.134)
Disassembly and Assembly
Ferrite Core
Ferrite Core
FFC Clamp
Removal of Exterior Parts
Figure 4-6. Placing the Scanner Unit FFCs
Revision A
84
