Tools; Preparation Before Disassembly - Epson Stylus Photo RX700 Service Manual

EPSON Stylus Photo RX900
Use only recommended tools for disassembling, assembling or
C A U T I O N
adjusting the Stylus Photo RX700.
Observe the specified torque when tightening screws.
Make the specified adjustments when you disassemble the
Stylus Photo RX700. (See Chapter 5 for details.)
Use the special package for transportation.
Prior to disassembly and reassembly, remove the accessories,
such as memory cards.
When removing or installing exterior parts, take great care that
no coated surface is scratched and no coating is peeled off.
When disconnecting an FPC, unlock the connector beforehand
and take care not to touch the FPC terminal face. If you have
touched the terminal face with bare hand or if the terminal
face is found soiled, wipe it with the specified solvent.
For disconnecting an FPC, unlock the connector first and then
pull it off. For connection, insert the FPC to the depths
properly first and then lock the connector.

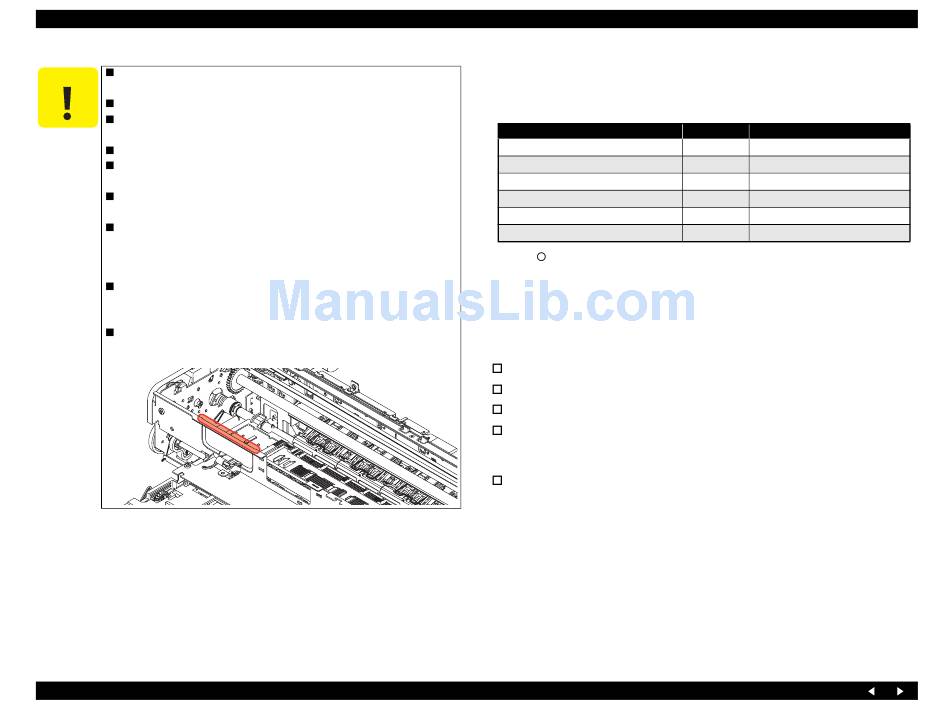

The portion of the printer frame shown below has a sharp edge.
Take due care not to hurt your hand with the edge.
Disassembly and Assembly

4.1.2 Tools

Use only specified tools to avoid damaging the Stylus Photo RX700.
Name
Phillips precision screwdriver
Phillips precision screwdriver
Tweezers
Tension gauge (2000cN)
Sonic Tension meter
Note : " " : available on the market
"EPSON" : available from EPSON

4.1.3 Preparation before Disassembly

Make the following preparations before disassembling the Stylus Photo RX700:
Make sure that no memory card has been inserted in the Stylus Photo RX700.
Unplug the power cable from the wall outlet.
When the Main Board is to be replaced, make a copy of the EEPROM data.
When the Carriage Assy is to be moved out of its home position, locate it at a
position other than the home position before starting disassembly by turning the
power ON and turning it OFF timely.
As soon as the repaired product has been returned to the user, there may be a case
a maintenance call occurs because of the expiration of the life of a service part.
Avoid such a case, if possible, as follows: Check the maintenance counter for
regularly replaced parts before disassembly. If the life of any part is found almost
expired, communicate with the user to that effect. If the user's consent is obtained,
replace also the relevant service parts with new ones.
Overview
Table 4-1. Tools
Availability Tool Code
EPSON 1080530
EPSON 1080532
EPSON 1080561
EPSON 1213123
EPSON 1231678
Revision A
78
