EPSON Stylus Photo RX900

4.4.11 CR Motor

1. Remove the Printer Mechanism. (p.107)
2. Remove the tension spring of the Driven Pulley Assy at the rear of the printer.
3. Remove the two screws, and remove the CR Motor from the printer frame.
Lubrication is necessary. Refer to the following section and
lubricate the specified points:
Lubrication of Driven Pulley Assy (p.154)
A D J U S T M E N T
Once the CR Motor has been replaced with a new one, refer to the
R E Q U I R E D
following section and perform the necessary adjustments.
5.1.1 Adjustment Items (p.134)
Disassembly and Assembly Disassembly and Assembly of Major Parts of Printer
Tension spring
Screws (x2)
⋅
Driven Pulley Assy
Torque: 0.x ± 0.xN m

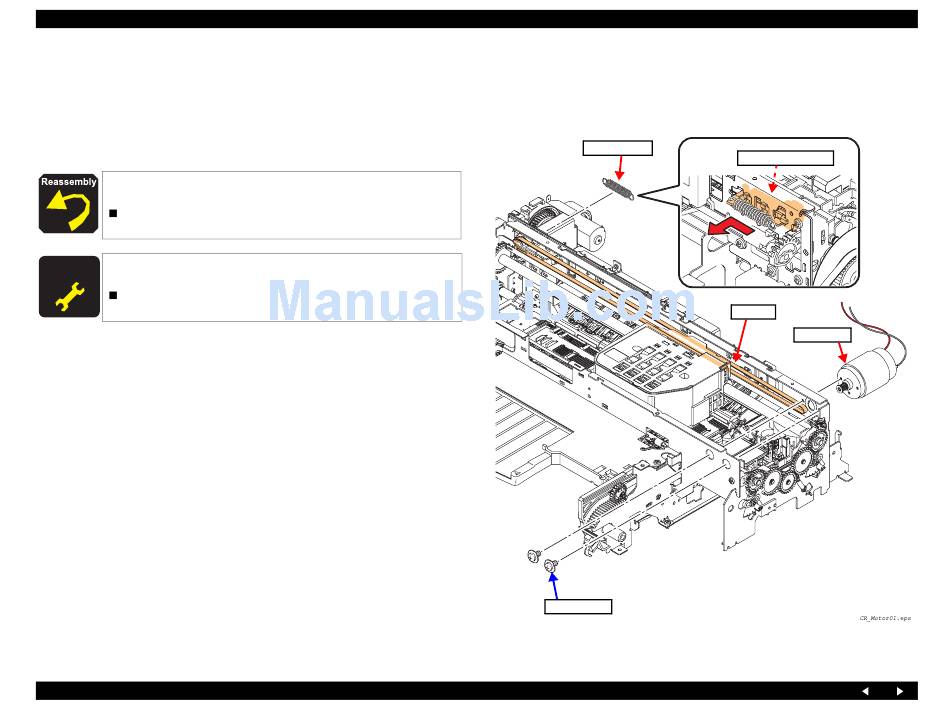

Figure 4-52. Removing the CR Motor
Revision A
Driven Pulley Assy
CR Belt
CR Motor
115
