EPSON Stylus Photo RX900

4.4.9 ASF Drive Assy

1. Remove the Printer Mechanism. (p.107)
2. Remove the Ink System Assy. (p.112)
3. Remove the screws (x2) at the right side of the printer, and remove the ASF Motor.
4. Remove the screws (x3), and remove the Paper Path Switching Assy.
Locate the ASF Drive Assy (ASF Motor & Paper Path Switching
Assy) as shown below:
Disassembly and Assembly
Paper Path Switching Assy
Torque: 0.6 ± 0.1N
C.B.P-Tite 3x8 F/ZN-3C (x2)
Disassembly and Assembly of Major Parts of Printer
ASF Motor
⋅
m
C.B.S-Tite 3x6 F/ZN-3C (x3)

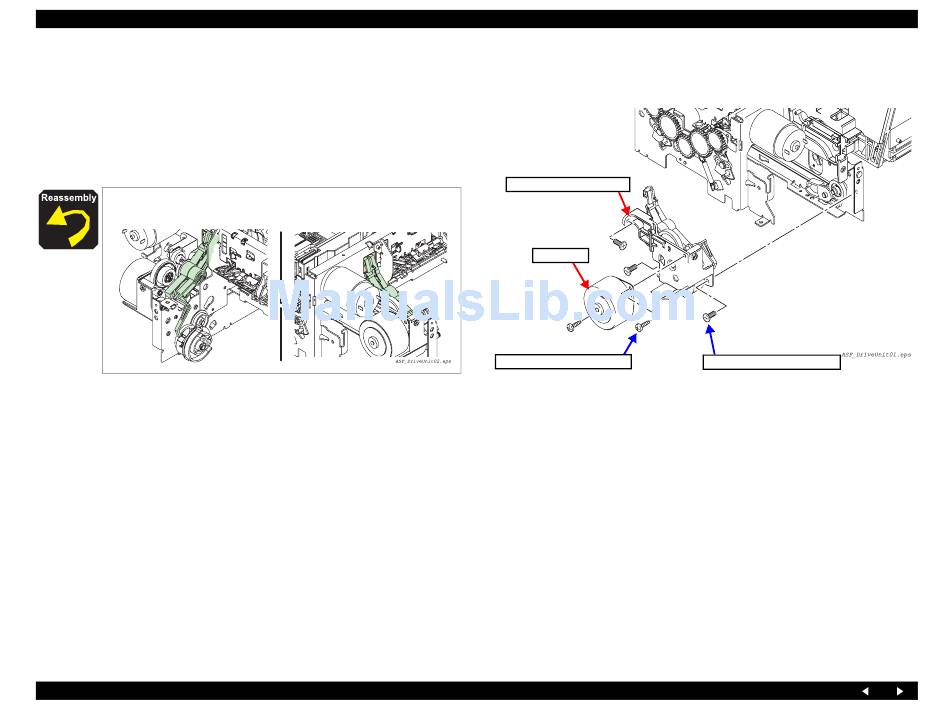

Figure 4-49. Removing the Paper Path Switching Assy
Revision A
⋅
Torque: 0.8 ± 0.1N m
113
