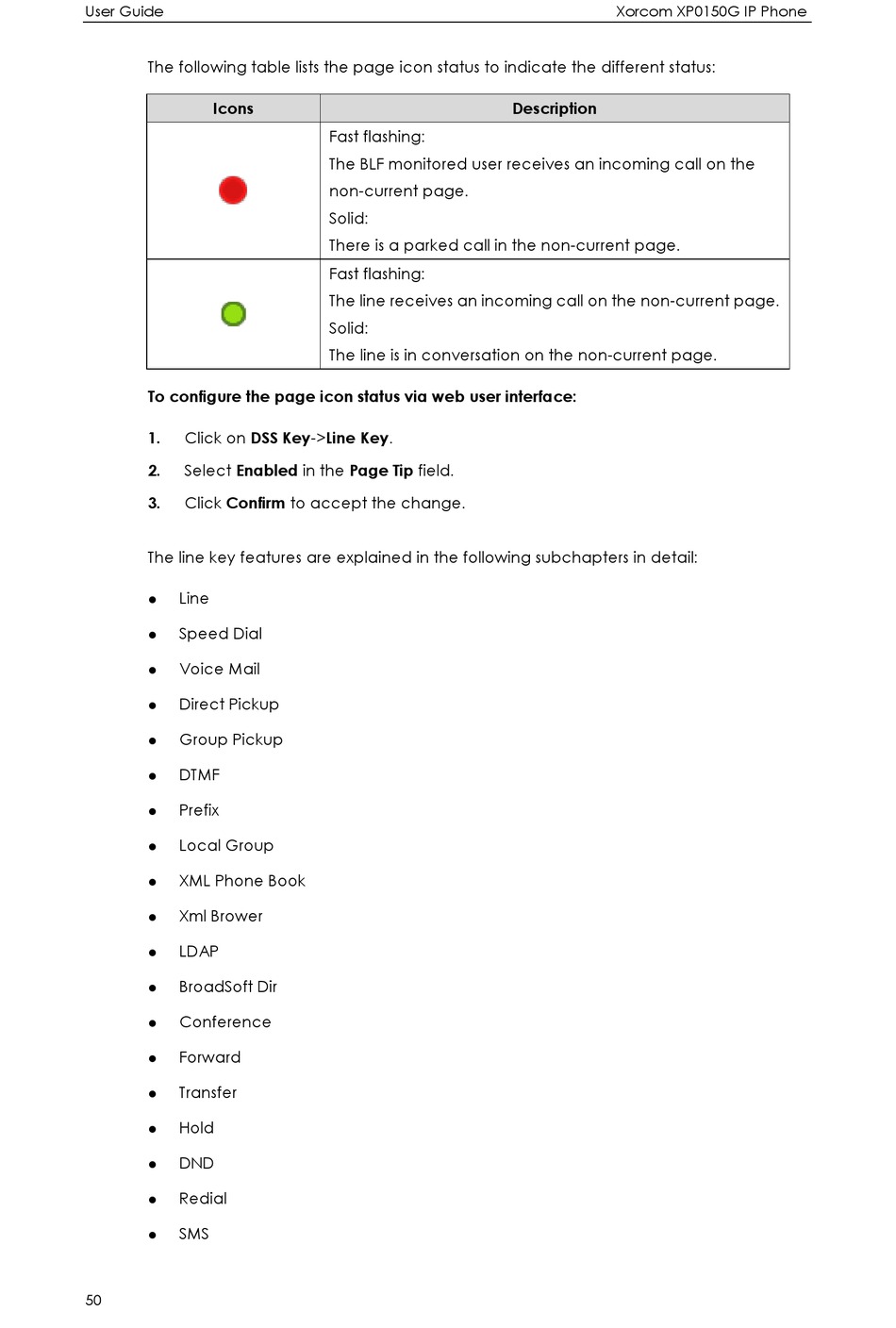

Xorcom XP0150G User Manual page 56

User Guide
The following table lists the page icon status to indicate the different status:
Icons
To configure the page icon status via web user interface:
1. Click on DSS Key->Line Key.
2. Select Enabled in the Page Tip field.
3. Click Confirm to accept the change.
The line key features are explained in the following subchapters in detail:
Line

Speed Dial

Voice Mail

Direct Pickup

Group Pickup

DTMF

Prefix

Local Group

XML Phone Book

Xml Brower

LDAP

BroadSoft Dir

Conference

Forward

Transfer

Hold

DND

Redial

SMS

50
Fast flashing:
The BLF monitored user receives an incoming call on the
non-current page.
Solid:
There is a parked call in the non-current page.
Fast flashing:
The line receives an incoming call on the non-current page.
Solid:
The line is in conversation on the non-current page.
Xorcom XP0150G IP Phone
Description
