2.

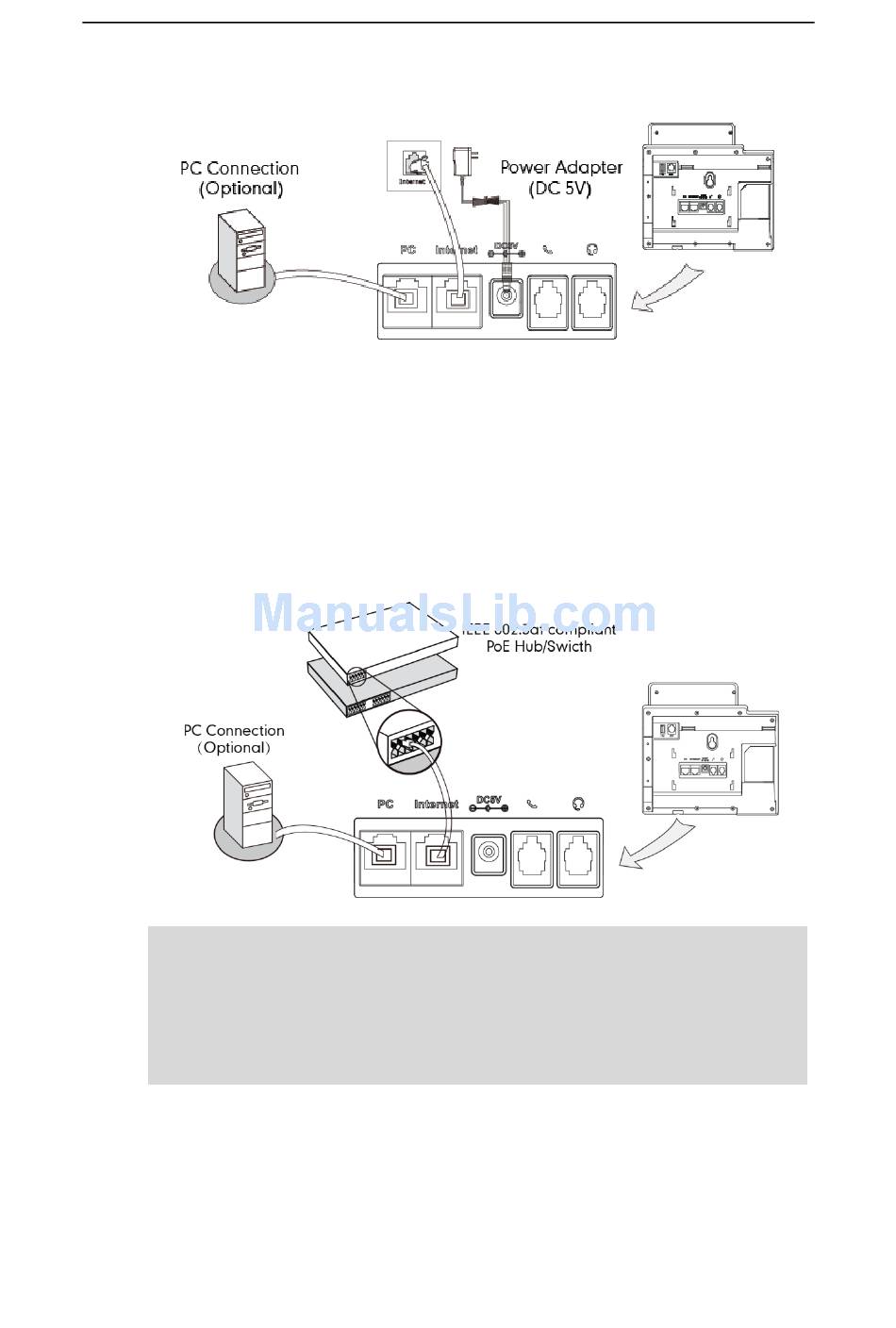

Connect the supplied Ethernet cable between the Internet port on the phone and
the Internet port in your network or switch/hub device port.
Power over Ethernet
Using a regular Ethernet cable, the Xorcom XP0150G IP phone can be powered from a
PoE (IEEE 802.3af) compliant switch or hub.
To connect the PoE:
1.
Connect the Ethernet cable between the Internet port on the phone and an
available port on the in-line power switch/hub.
Note
If in-line power is provided, you don't need to connect the AC adapter. Make sure the
Ethernet cable and switch/hub is PoE compliant.
The phone can also share the network with other network device such as a PC (personal
computer). It is an optional connection.
Important! Do not unplug or remove power to the phone while it is updating firmware
and configurations.
Phone Initialization
After your phone has been powered up, the system boots up and performs the
following steps:
Getting Started
15
