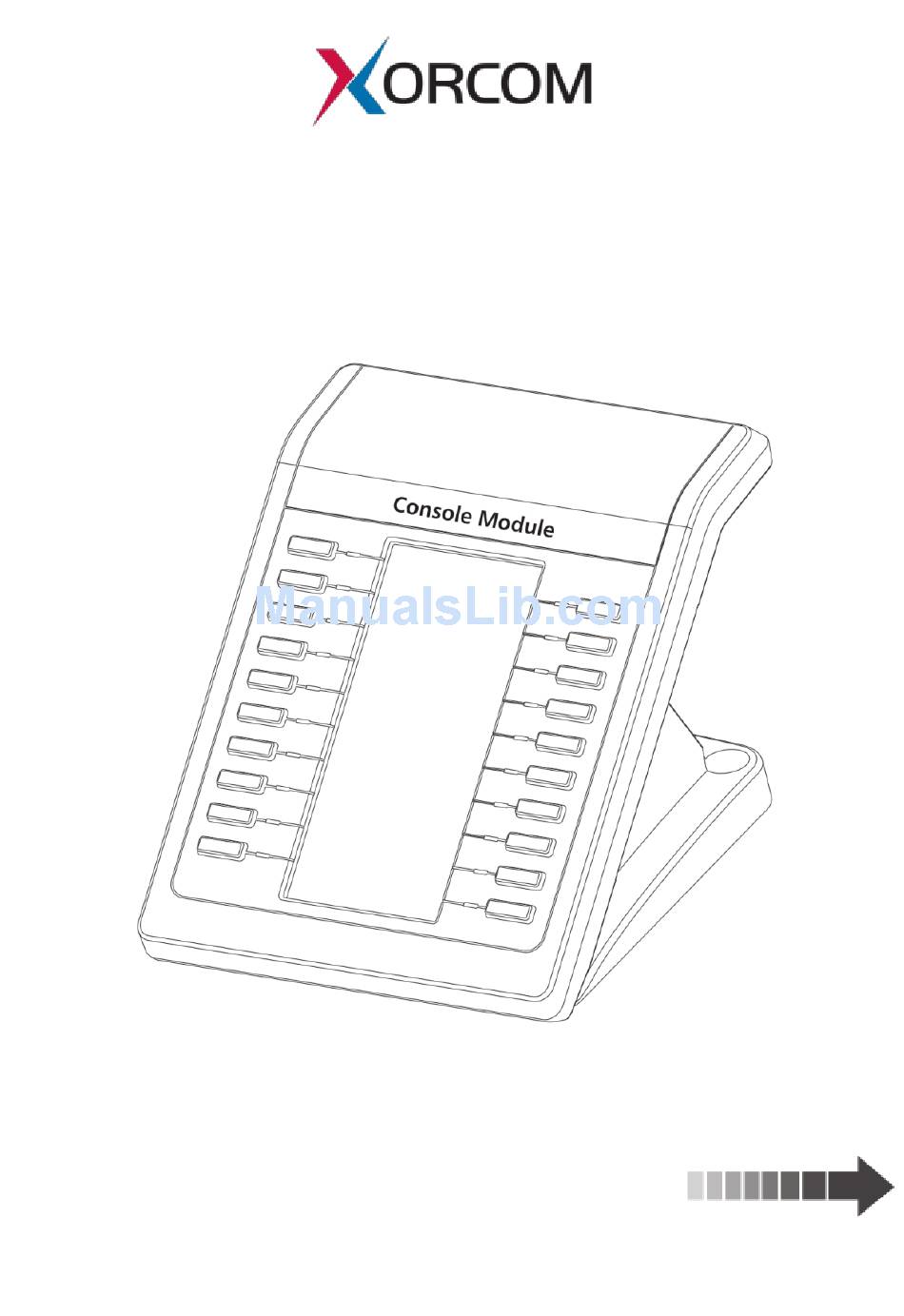

- Page 1 Console Module XP0020 Quick Start Guide (V1.0)
- Page 2 Quick Reference Connect to the Phone Use the connecting sheet and spiral shell to connect the console module to the IP phone, as shown below: The phone and the console module are connected as shown below: XP0020 Quick Start Guide...
- Page 3 Attach the Stand Attach the stand, as shown below: Connect to the Next Console Module Use the connecting sheet and spiral shell to connect the next console module, as shown below: The phone and the two console modules are connected as shown below: Note: The IP phone supports up to two console modules.
- Page 4 Web browser interface or the phone user interface. For more information on how to use your new console module(s), refer to the Quick Reference guide in the package. XP0020 Quick Start Guide...
