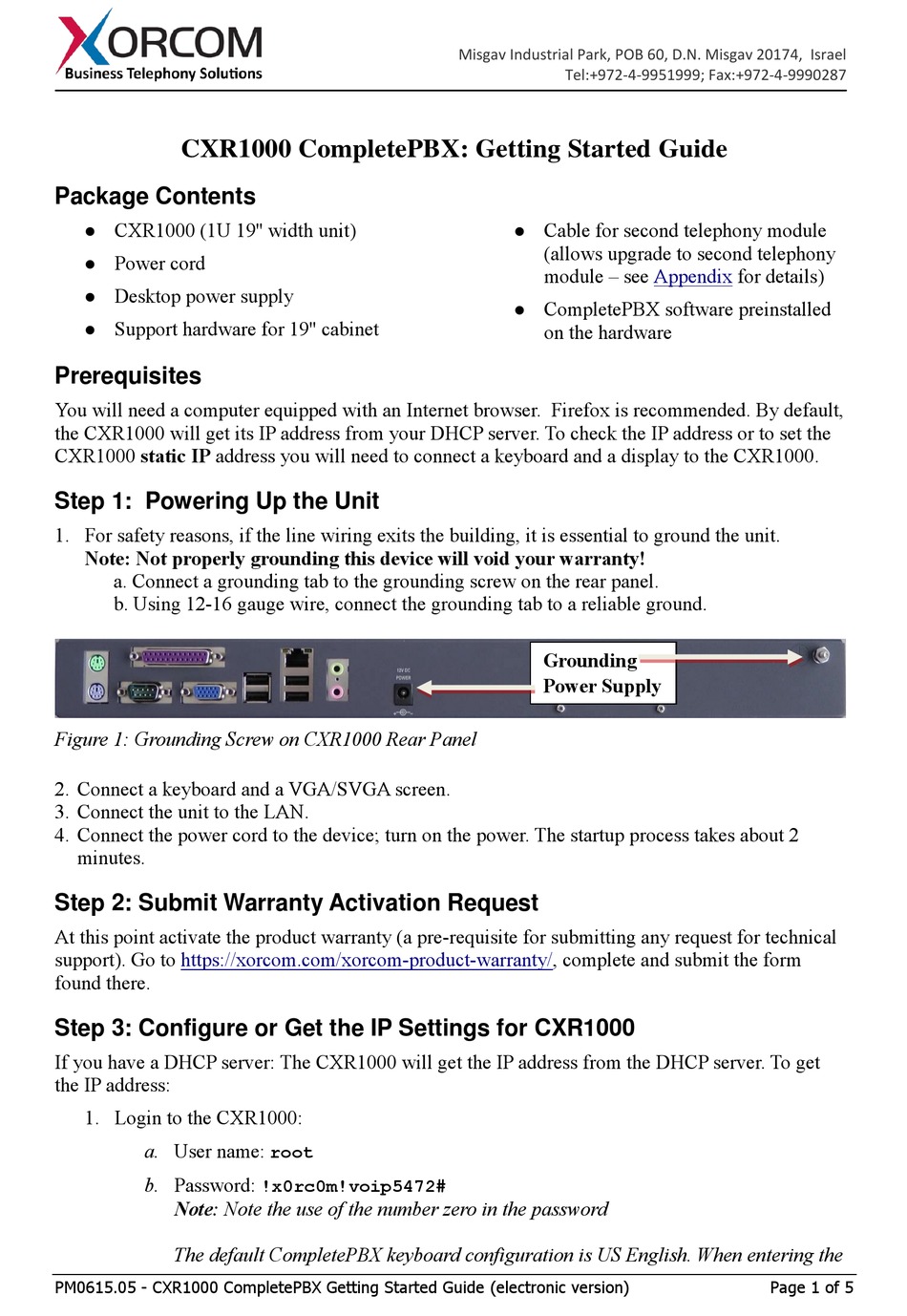

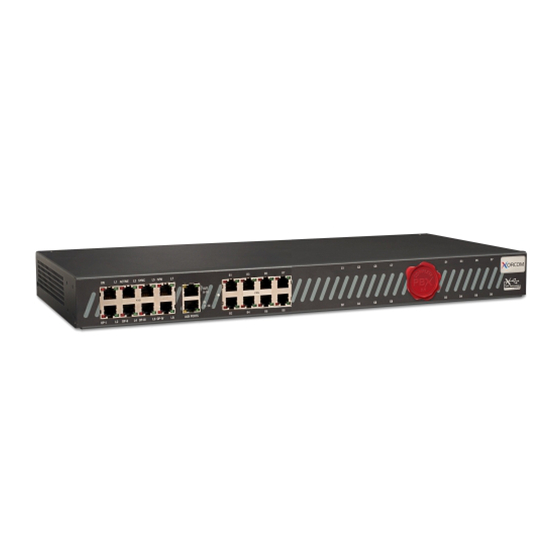

CXR1000 CompletePBX: Getting Started Guide
Package Contents
CXR1000 (1U 19'' width unit)
Power cord
Desktop power supply
Support hardware for 19'' cabinet
Prerequisites
You will need a computer equipped with an Internet browser. Firefox is recommended. By default,
the CXR1000 will get its IP address from your DHCP server. To check the IP address or to set the
CXR1000 static IP address you will need to connect a keyboard and a display to the CXR1000.
Step 1: Powering Up the Unit
1. For safety reasons, if the line wiring exits the building, it is essential to ground the unit.
Note: Not properly grounding this device will void your warranty!
a. Connect a grounding tab to the grounding screw on the rear panel.
b. Using 12-16 gauge wire, connect the grounding tab to a reliable ground.
Figure 1: Grounding Screw on CXR1000 Rear Panel
2. Connect a keyboard and a VGA/SVGA screen.
3. Connect the unit to the LAN.
4. Connect the power cord to the device; turn on the power. The startup process takes about 2
minutes.
Step 2: Submit Warranty Activation Request
At this point activate the product warranty (a pre-requisite for submitting any request for technical
support). Go to https://xorcom.com/xorcom-product-warranty/, complete and submit the form
found there.
Step 3: Configure or Get the IP Settings for CXR1000
If you have a DHCP server: The CXR1000 will get the IP address from the DHCP server. To get
the IP address:
1. Login to the CXR1000:
a. User name:
b. Password:
Note: Note the use of the number zero in the password
The default CompletePBX keyboard configuration is US English. When entering the
PM0615.05 - CXR1000 CompletePBX Getting Started Guide (electronic version)
root
!x0rc0m!voip5472#
Misgav Industrial Park, POB 60, D.N. Misgav 20174, Israel
Tel:+972-4-9951999; Fax:+972-4-9990287
Cable for second telephony module
(allows upgrade to second telephony
module – see
CompletePBX software preinstalled
on the hardware
Grounding
Power Supply
Appendix
for details)
Page 1 of 5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Xorcom CXR1000
Summary of Contents for Xorcom CXR1000
-
Page 1: Package Contents
You will need a computer equipped with an Internet browser. Firefox is recommended. By default, the CXR1000 will get its IP address from your DHCP server. To check the IP address or to set the CXR1000 static IP address you will need to connect a keyboard and a display to the CXR1000. - Page 2 125725sec preferred_lft 125725sec inet6 fe80::222:4dff:feab:188c/64 scope link valid_lft forever preferred_lft forever In this example the CXR1000 IP address is 192.168.0.64. Method 1: Set up a static IP address via command line. 1. Login into your system as root, as described above 2.
- Page 3 Digital (BRI ISDN) CXR1000 Models Digital CXR1000 models (models that have at least one digital ISDN BRI PSTN port) have a vertical array of four status indicators on the left side of the front panel (Fig 2). Fig. 2 – BRI Panel (allows additional 8 FXS or 8 FXO ports)
- Page 4 Xorcom Web site: www.xorcom.com Scan the QR code on the front panel of the CXR1000 for easy access to all relevant product info for this specific product, including detailed technical documentation, “how to” videos, and more. PM0615.05 - CXR1000 CompletePBX Getting Started Guide (electronic version)
- Page 5 Tel:+972-4-9951999; Fax:+972-4-9990287 Appendix For pre-assembled CXR1000 models that contain only one telephony module, the unit is supplied with only the first telephony module cable connected to the main board. For units in which a second telephony module is to be installed, use the second cable suppliedin the original packaging and connect it to the right-most slot on the main board, as indicated by the arrow: PM0615.05 - CXR1000 CompletePBX Getting Started Guide (electronic version)
