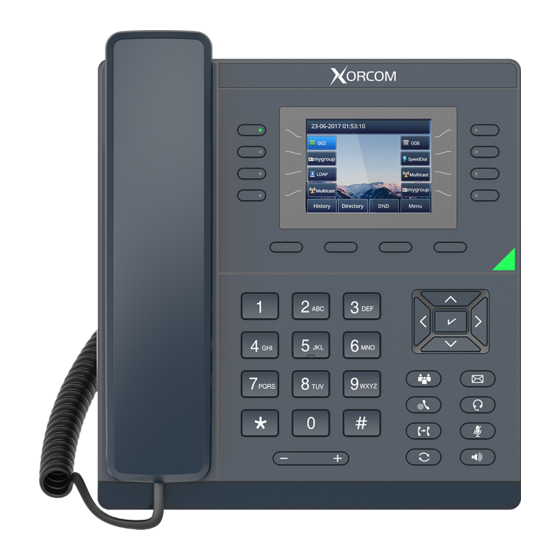

Xorcom UC505U Quick Start Manual

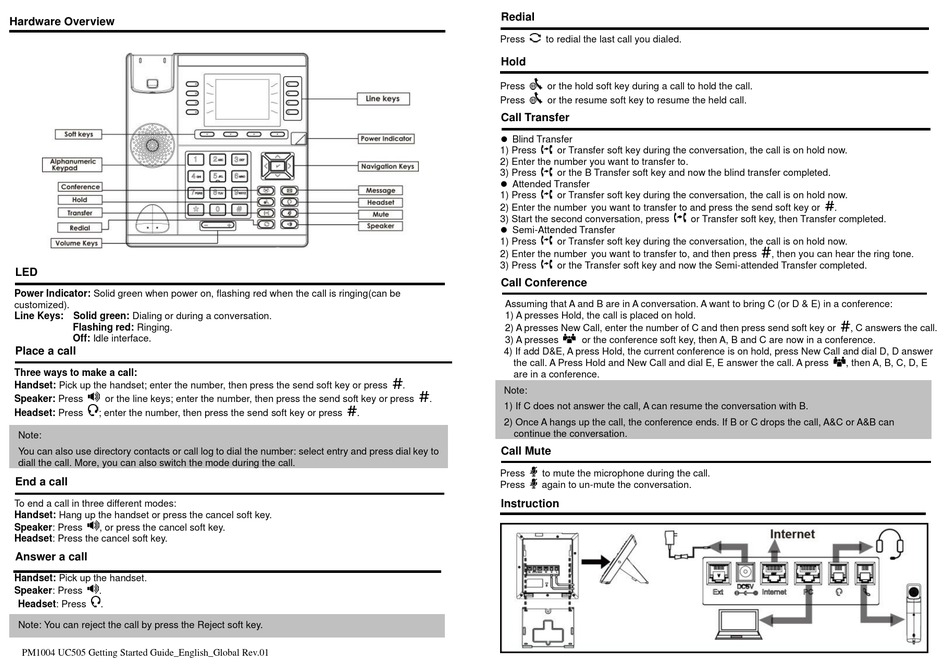

Hardware Overview
LED
Power Indicator: Solid green when power on, flashing red when the call is ringing(can be
customized).
Line Keys: Solid green: Dialing or during a conversation.
Flashing red: Ringing.
Off: Idle interface.
Place a call
Three ways to make a call:
Handset: Pick up the handset; enter the number, then press the send soft key or press
Speaker: Press or the line keys; enter the number, then press the send soft key or press
Headset: Press ; enter the number, then press the send soft key or press
Note:
You can also use directory contacts or call log to dial the number: select entry and press dial key to
diall the call. More, you can also switch the mode during the call.
End a call
To end a call in three different modes:
Handset: Hang up the handset or press the cancel soft key.
Speaker: Press , or press the cancel soft key.
Headset: Press the cancel soft key.
Answer a call
Handset: Pick up the handset.
Speaker: Press .
Headset: Press .
Note: You can reject the call by press the Reject soft key.
PM1004 UC505 Getting Started Guide_English_Global Rev.01
Redial
Press
Hold
Press
Press
Call Transfer
⚫ Blind Transfer
1) Press
2) Enter the number you want to transfer to.
3) Press
⚫ Attended Transfer
1) Press
2) Enter the number you want to transfer to and press the send soft key or
3) Start the second conversation, press
⚫ Semi-Attended Transfer
1) Press
2) Enter the number you want to transfer to, and then press
3) Press
Call Conference
Assuming that A and B are in A conversation. A want to bring C (or D & E) in a conference:
1) A presses Hold, the call is placed on hold.
2) A presses New Call, enter the number of C and then press send soft key or
3) A presses
4) If add D&E, A press Hold, the current conference is on hold, press New Call and dial D, D answer
the call. A Press Hold and New Call and dial E, E answer the call. A press
are in a conference.
.
Note:
.
1) If C does not answer the call, A can resume the conversation with B.
.
2) Once A hangs up the call, the conference ends. If B or C drops the call, A&C or A&B can
continue the conversation.
Call Mute
Press
Press
Instruction
to redial the last call you dialed.
or the hold soft key during a call to hold the call.
or the resume soft key to resume the held call.
or Transfer soft key during the conversation, the call is on hold now.
or the B Transfer soft key and now the blind transfer completed.
or Transfer soft key during the conversation, the call is on hold now.
or Transfer soft key, then Transfer completed.
or Transfer soft key during the conversation, the call is on hold now.
or the Transfer soft key and now the Semi-attended Transfer completed.
or the conference soft key, then A, B and C are now in a conference.
to mute the microphone during the call.
again to un-mute the conversation.
.
, then you can hear the ring tone.
, C answers the call.
, then A, B, C, D, E
