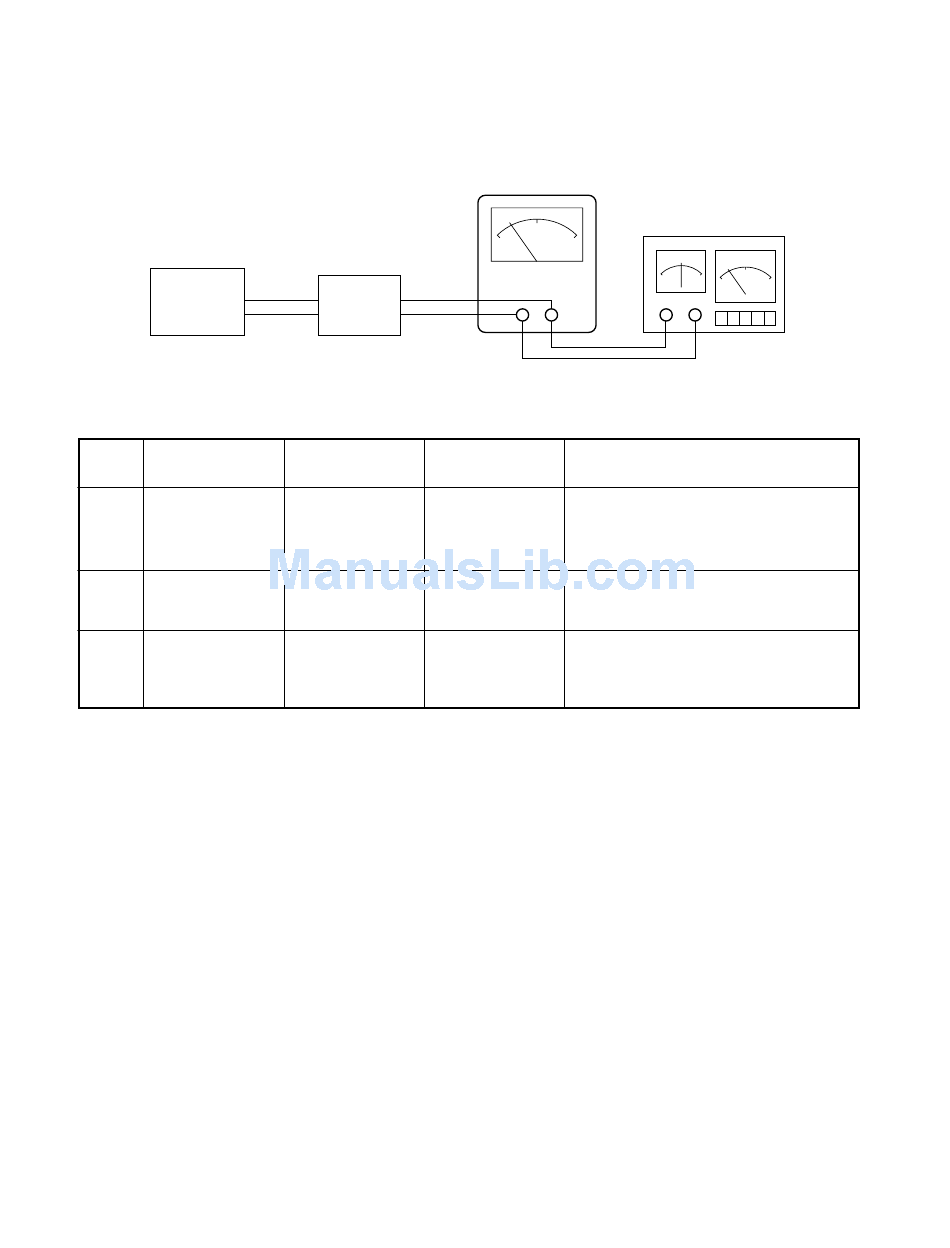

ALIGNMENT OF CASSETTE PLAYER
See the wow/flutter meter for JIS/WRMS function.
SET
MODULATION
STEP
FREQUENCY
1
Head Azimuth
2
Wow/Flutter
3
Tape Speed
(See Fig. 1.3)
DUMMY
LOAD &
SW BOX
Fig. 4
OUTPUT
TEST TAPE
INDICATOR
MTT-257E
VOLTMETER
MTT-111N
Wow/Flutter Meter
(3kHz)
MTT-111N
Tape Speed Drift
(3kHz)
Meter
— 4 —
AC VOLTMETER
WOW/FLUTTER METER
Align azimuth (on Head) for maximum
output 10 kHz as well as baiance on 1 kHz
between Left and Right channel output.
Check the display less than 0.3%
(JIS/WRMS).
Check the display within -1% and +3%.
(with drift meter)
REMARKS
