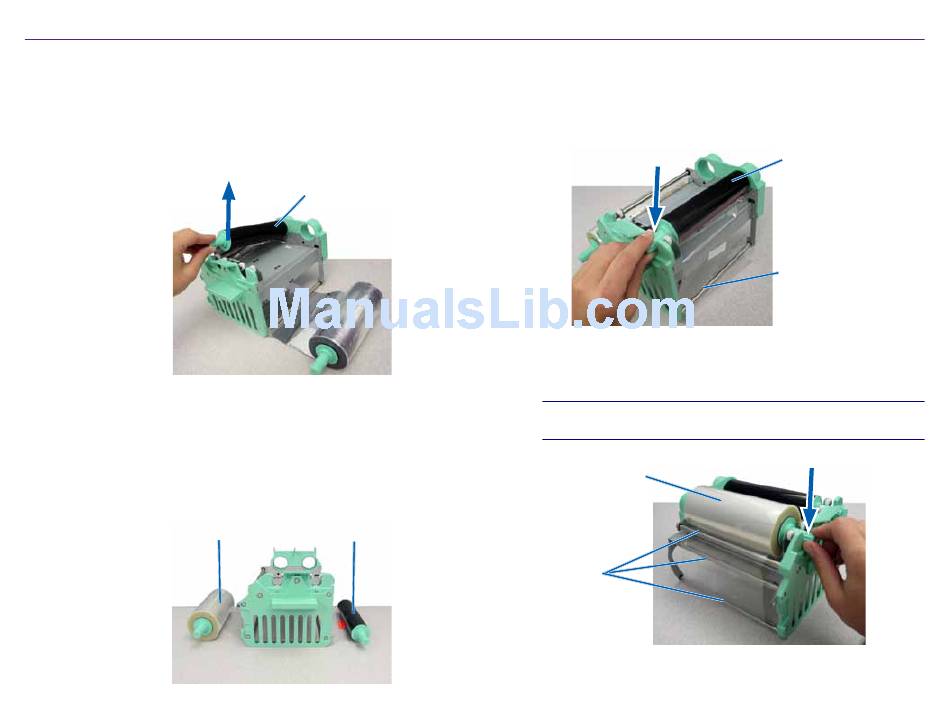

Change the Print and Retransfer Ribbons
c. Lift up on the supply roll to remove it from the left side of the
carrier.
d. Set the supply roll aside.
e. Lift the retransfer ribbon carrier off of the used retransfer ribbon
and set it aside.
f. Discard the used retransfer ribbon.

Install the Retransfer Ribbon

1. Remove the new retransfer ribbon from the packaging.
2. Position the retransfer ribbon on the retransfer ribbon carrier.
a. With the supply roll on the left side, unwind several inches of the
retransfer ribbon.
b. Place the retransfer ribbon on a clean, flat surface.
c. Place the retransfer ribbon carrier on top of the retransfer ribbon.
New Supply Roll
2002552_A
Used Supply Roll
New Take-Up Roll
For more information visit
3. Install the retransfer ribbon.
a. Bring the take-up roll up and around the guide roller on the right
side of the carrier.
b. Press down to install the take-up roll, as shown.
c. Bring the supply roll up and around the guide rollers on the left side
of the carrier.
d. Press down to install the supply roll, as shown.
Tip: Make sure that the retransfer ribbon winds underneath the
supply roll.
Supply Roll
Guide Rollers
rimage.com/support
Take-Up Roll
Guide Roller
23
