Identify the Parts of the Professional 3410 and 5410N
Parts Information

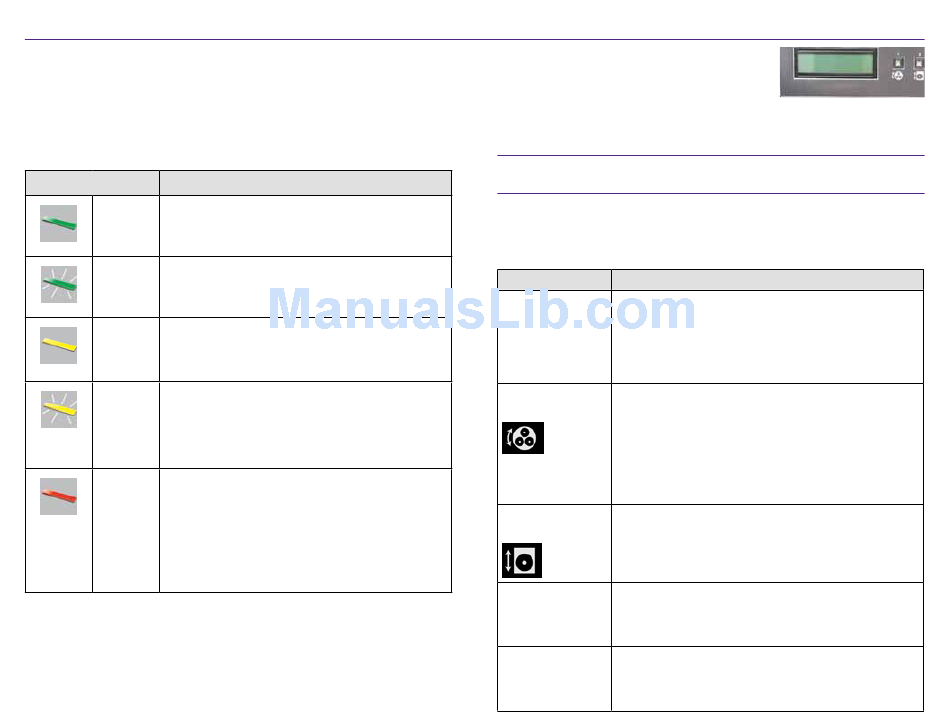

Status Light
The Professional 3410 and 5410N is equipped with a built-in status light that
indicates various conditions. The table below illustrates status light states
and explains the conditions indicated by each state.
Light State System Condition
Green light The system is operating properly. No jobs are currently
on processing.
Green light The system is operating properly. Jobs are currently
blinking processing.
Yellow The autoloader is waiting for the software to start. If
light on the control center is not started, power on the control
center. Check the cable connections on the autoloader
and control center.
Yellow The front door may be open. Close the front door to
light allow jobs to process.
blinking
The print ribbon or media may be running low. Read
the operator panel to determine which supply is
running low.
Red light The carousel is out of blank discs. Fill the bins with the
on appropriate media type.
A system error requires operator intervention. Check
the client workstation or control center for a message.
An equipment error occurred at initial start up, such
as a missing carousel. Check the client workstation or
control center for a message.
Control Panel
The control panel is located on the front of the
3410 and 5410N. It includes the operator panel,
the rotate carousel button (button 1), and the printer tray button (button
2). The control panel allows you to monitor and control the system.
Important! You must open the front door of the autoloader to access the
control panel. You can view the display without opening the door.
The table below identifies the name and function of all parts of the control
panel.
Control Panel Indicators
Name
Operator
panel
Rotate carousel
button (button 1)
Printer tray button
(button 2)
Printer indicator
light (on the printer
tray button)
Rotate carousel
indicator light (on
the rotate carousel
button)
For more information visit rimage.com/support
Function
The operator panel has a two-line display that informs
you of operations or conditions that require operator
intervention. This includes the consumable status. The
5400N displays the name of the embedded PC after
Operate Gemini Utilities
initialization. Refer to the
on page 30 to see other options.
Press the rotate carousel button to
• Rotate the carousel and position a bin to load and
unload discs. Each time you press the rotate carousel
button, the carousel rotates to the next bin.
Refer to the Diagnostic Test
• Enter diagnostic test mode.
Instructions on the documentation disc that shipped
with your system.
Press the printer tray button to:
• Open and close the printer tray
• Reset after an error
The printer indicator light illuminates when the printer is
powered on and has completed initialization.
The printer indicator light flashes when the Everest 400
printer is receiving data from the host.
The rotate carousel indicator light illuminates when you
rotate the carousel.
The rotate carousel indicator light flashes when the
autoloader is receiving data from the host.
