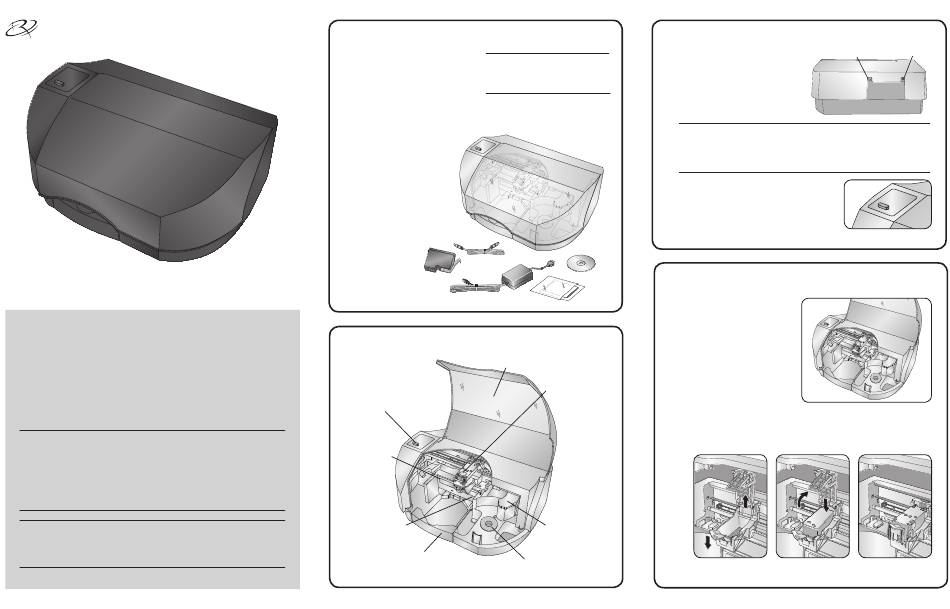

Rimage Allegro™ 20 Setup and Installation Guide
®
Thank you for selecting the Rimage Allegro 20
disc publishing system.
Before you begin:
This document describes how to set up your Rimage Allegro™ 20 disc
publishing system. It is intended for people who are familiar with hardware
setup, software installation, and Windows operating systems. If you do not
understand the procedures in this document, ask your computer technician
for help.
Documents referenced in this procedure shipped with your system and
are also available online at
www.rimage.com/support
Printer Support.
Important!
• Read all setup instructions thoroughly before you begin.
• Save all packing boxes and packing materials.
• Refer to the PC Specifications document at www.rimage.com/support for
minimum PC requirements.
• Do not plug in any cables until you are instructed to do so.
Notes:
• Your system may not look exactly like the system pictured.
• You must have administrative privileges to install the Rimage Software Suite.
4001940_A
1
Unpack the accessory kit
As you unpack your system,
remove any tape or cardboard
restraints from the system. The
accessory kit contains:
• Allegro Setup and Installation
Guide (this document)
• Rimage Product Warranty/
Guarantee
• A/C cord
• USB cable
• All-in-one ink cartridge
• Rimage Allegro User
Guide disc
• Rimage Software
Suite disc
2
Get to know your Rimage Allegro 20
Power/Ink
Power/Ink
under Autoloader &
Button
Button
CD/DVD
CD/DVD
Recorder Dirve
Recorder
Drive
Recorder Tray
Recorder Tray
Button
Button
Note:
Your Allegro system may come
with an extra power cord. Please use
the correct power cord for your region.
Cover
Cover
Ink Cartridge
Ink Cartridge
Carrier
Carrier
Robotic Arm Robotic Arm
Extendable Extendable
Input Bin
Output Bin Output Bin Input Bin
Copyright © 2016 Rimage
3
Connect the power cable and power on the system
USB 3.0 Port
USB 3.0 Port
Connect the power cord to the
a.
power input port on the back of
the Allegro 20.
b. Plug the other end of the power
cord into an electrical outlet.
Important!
• Do not connect the USB cable at this time.
• The outlet must be an earth-grounded outlet.
Press the power/ink button on the top of
c.
the Rimage Allegro 20 system. The power
indicator light illuminates solid blue.
d. Power on the external PC that will send
content to the Allegro 20 for output.
4
Install the all-in-one ink cartridge
a. Lift the printer cover.
b. Push the power/ink button.
The ink cartridge cradle moves
from the left to the center of
the printer.
c. When the ink cartridge cradle is stationary, lift the cartridge latch
(see below).
d. Slide the all-in-one ink cartridge into the cradle as shown.
e. Close the cartridge latch.
f. Close the printer cover. The Allegro 20 system initializes.
Power Input Port Power Input Port
USB 3.0 Port
