1
ACCESSORIES
D

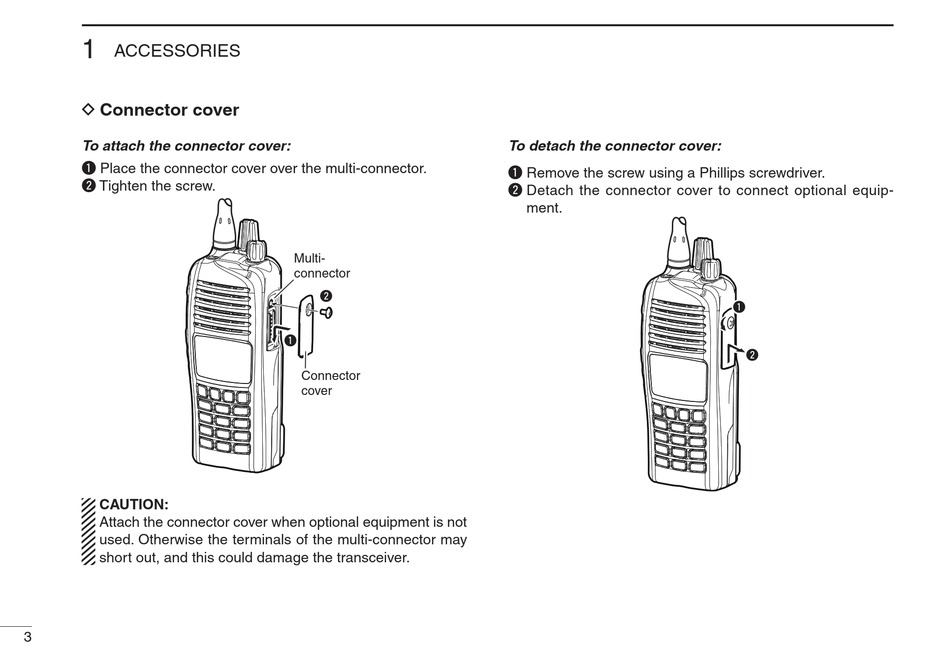

Connector cover
To attach the connector cover:
q Place the connector cover over the multi-connector.
w Tighten the screw.
CAUTION:
Attach the connector cover when optional equipment is not
used. Otherwise the terminals of the multi-connector may
short out, and this could damage the transceiver.
3
Multi-
connector
w
q
Connector
cover
To detach the connector cover:
q Remove the screw using a Phillips screwdriver.
w Detach the connector cover to connect optional equip-
ment.
