2

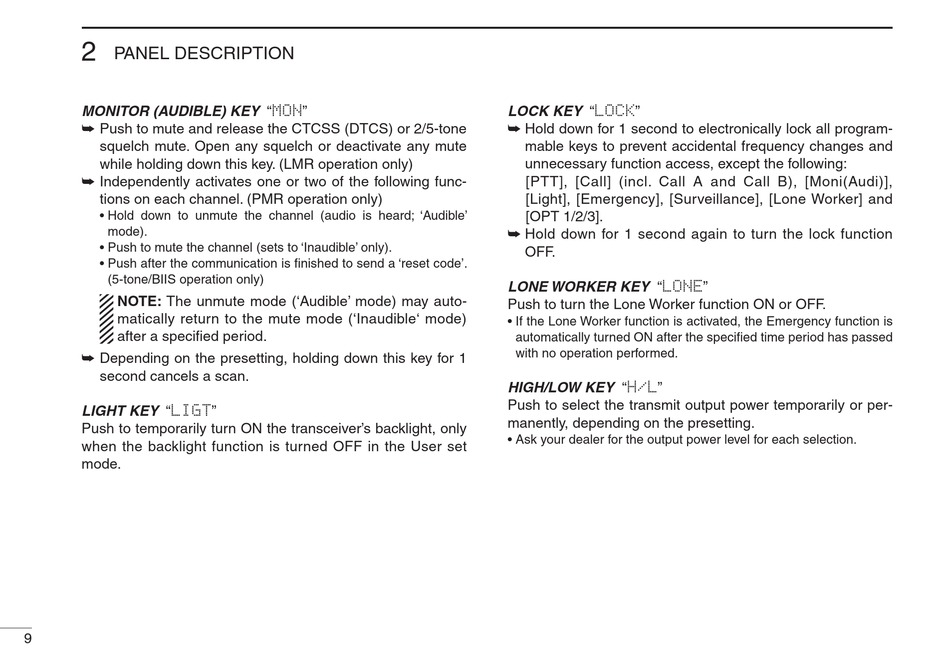

PANEL DESCRIPTION
MONITOR (AUDIBLE) KEY "MON"
Push to mute and release the CTCSS (DTCS) or 2/5-tone
➥
squelch mute. Open any squelch or deactivate any mute
while holding down this key. (LMR operation only)
Independently activates one or two of the following func-
➥
tions on each channel. (PMR operation only)
• Hold down to unmute the channel (audio is heard; 'Audible'
mode).
• Push to mute the channel (sets to 'Inaudible' only).
• Push after the communication is finished to send a 'reset code'.
(5-tone/BIIS operation only)
NOTE: The unmute mode ('Audible' mode) may auto-
matically return to the mute mode ('Inaudible' mode)
after a specified period.
Depending on the presetting, holding down this key for 1
➥
second cancels a scan.
LIGHT KEY "LIGT"
Push to temporarily turn ON the transceiver's backlight, only
when the backlight function is turned OFF in the User set
mode.
9
LOCK KEY "LOCK"
➥ Hold down for 1 second to electronically lock all program-
mable keys to prevent accidental frequency changes and
unnecessary function access, except the following:
[PTT], [Call] (incl. Call A and Call B), [Moni(Audi)],
[Light], [Emergency], [Surveillance], [Lone Worker] and
[OPT 1/2/3].
➥ Hold down for 1 second again to turn the lock function
OFF.
LONE WORKER KEY "LONE"
Push to turn the Lone Worker function ON or OFF.
• If the Lone Worker function is activated, the Emergency function is
automatically turned ON after the specified time period has passed
with no operation performed.
HIGH/LOW KEY "H/L"
Push to select the transmit output power temporarily or per-
manently, depending on the presetting.
• Ask your dealer for the output power level for each selection.
