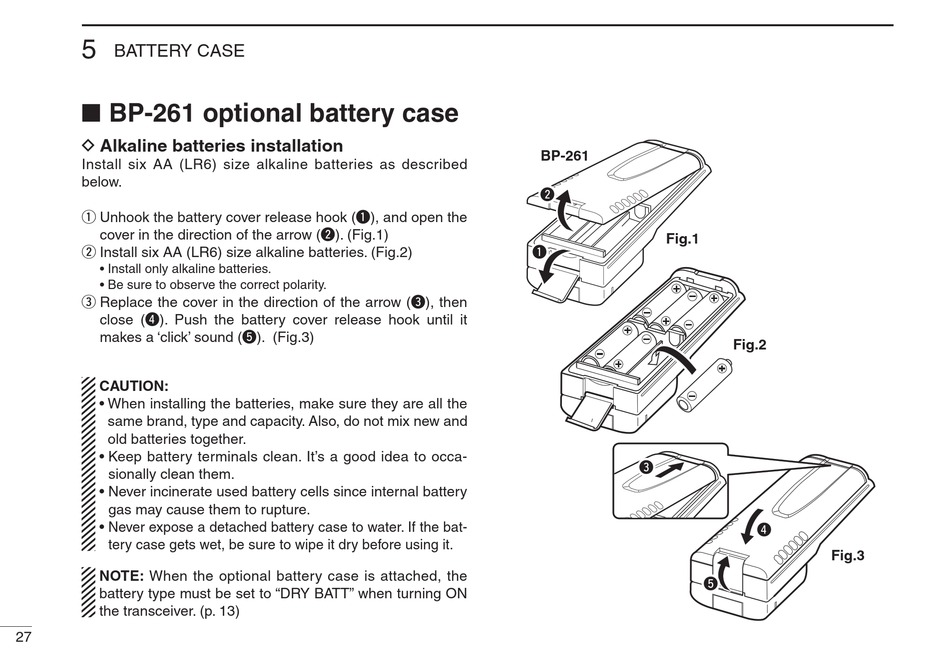

Bp-261 Optional Battery Case - Icom ic-F3262DT Instruction Manual

5
BATTERY CASE

BP-261 optional battery case

■
D Alkaline batteries installation
Install six AA (LR6) size alkaline batteries as described
below.
Unhook the battery cover release hook (
q
cover in the direction of the arrow (w). (Fig.1)
Install six AA (LR6) size alkaline batteries. (Fig.2)
w
• Install only alkaline batteries.
• Be sure to observe the correct polarity.
Replace the cover in the direction of the arrow (
e
close (r). Push the battery cover release hook until it
makes a 'click' sound (t). (Fig.3)
CAUTION:
• When installing the batteries, make sure they are all the
same brand, type and capacity. Also, do not mix new and
old batteries together.
• Keep battery terminals clean. It's a good idea to occa-
sionally clean them.
• Never incinerate used battery cells since internal battery
gas may cause them to rupture.
• Never expose a detached battery case to water. If the bat-
tery case gets wet, be sure to wipe it dry before using it.
NOTE: When the optional battery case is attached, the
battery type must be set to "DRY BATT" when turning ON
the transceiver. (p. 13)
27
q), and open the
q
e), then
BP-261
w
Fig.1
e
t
Fig.2
r
Fig.3
