Design Guide - Standard Installation

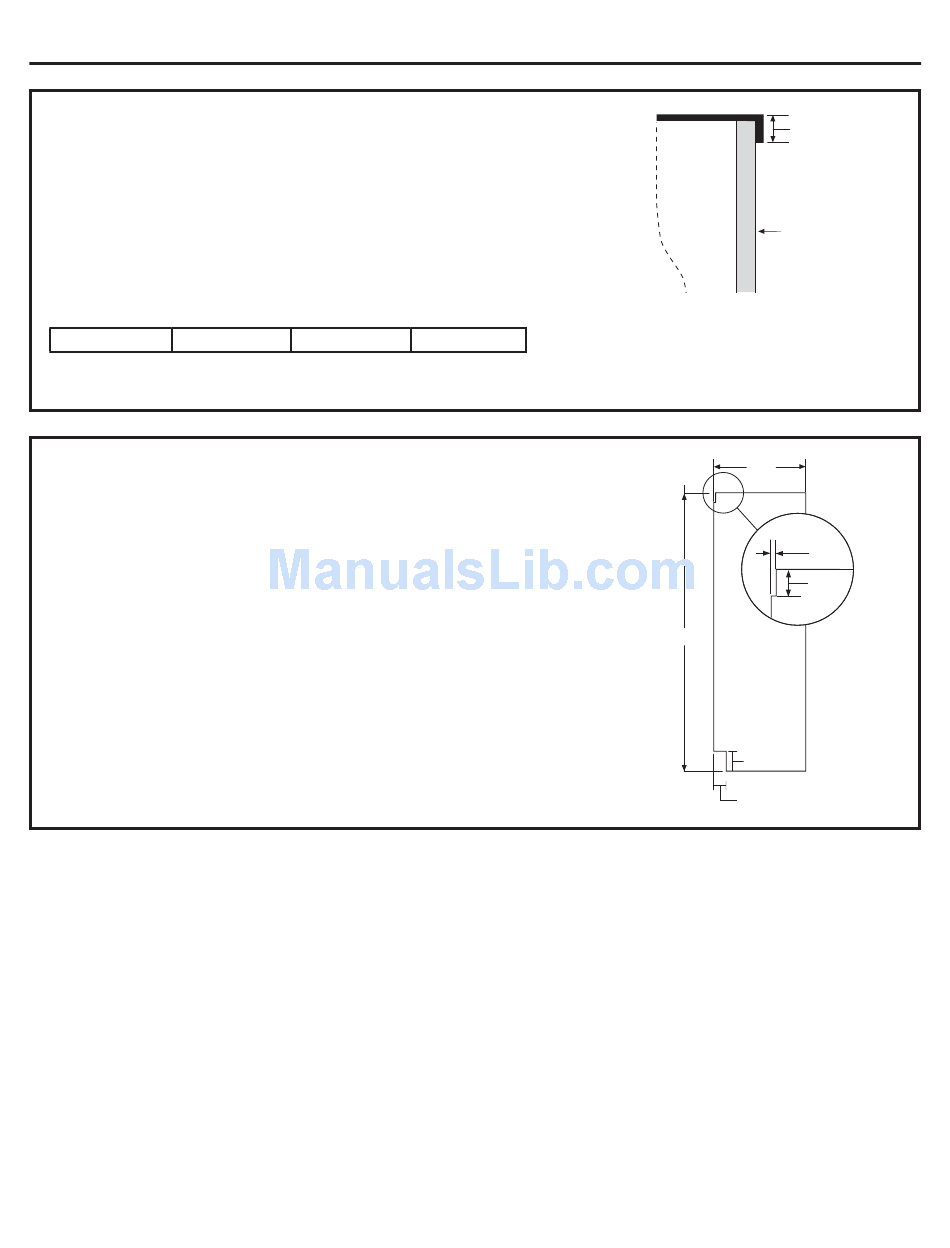

1/4" FRAMED PANEL DIMENSIONS

If you choose to install framed panels, they must be cut
to the dimensions shown. The panels will slide into the
frame on the door, drawer and grille.
If the custom panel is less than 1/4" thick and if it fits
loosely in the door frame, it can be backed up with a
piece of filler material or foam tape to improve the fit.
Panel Dimensions
1/4" Framed Panel
46-1/16" x 16-1/2"

SIDE PANELS

Side panels must be used whenever the sides of the
refrigerator will be exposed. The 1/4
slip into the side case trim. Secure the panels to the
refrigerator with stick-on hook and loop fastener strips.
Order the side panels from the cabinet manufacturer.
• Cut a notch in the top front corner as shown to allow
clearance for corner keys in the front side trim.
33-7/8" x 21-7/8"
33-7/8" x 8-7/8"
* Depending on
side panels will
"
9
NOTE: Maximum total panel weight:
• Fresh food door panels – 30 lbs.
• Freezer drawer panel – 28 lbs.
• Grille Panel – 11 lbs.
installation height.
5/16"
Trim
Door
Reveal
1/4"
Panel
24"
3/16"
1-7/8"
*84"
*3" to 4"
2-9/16"
