Design Guide - Standard Installation

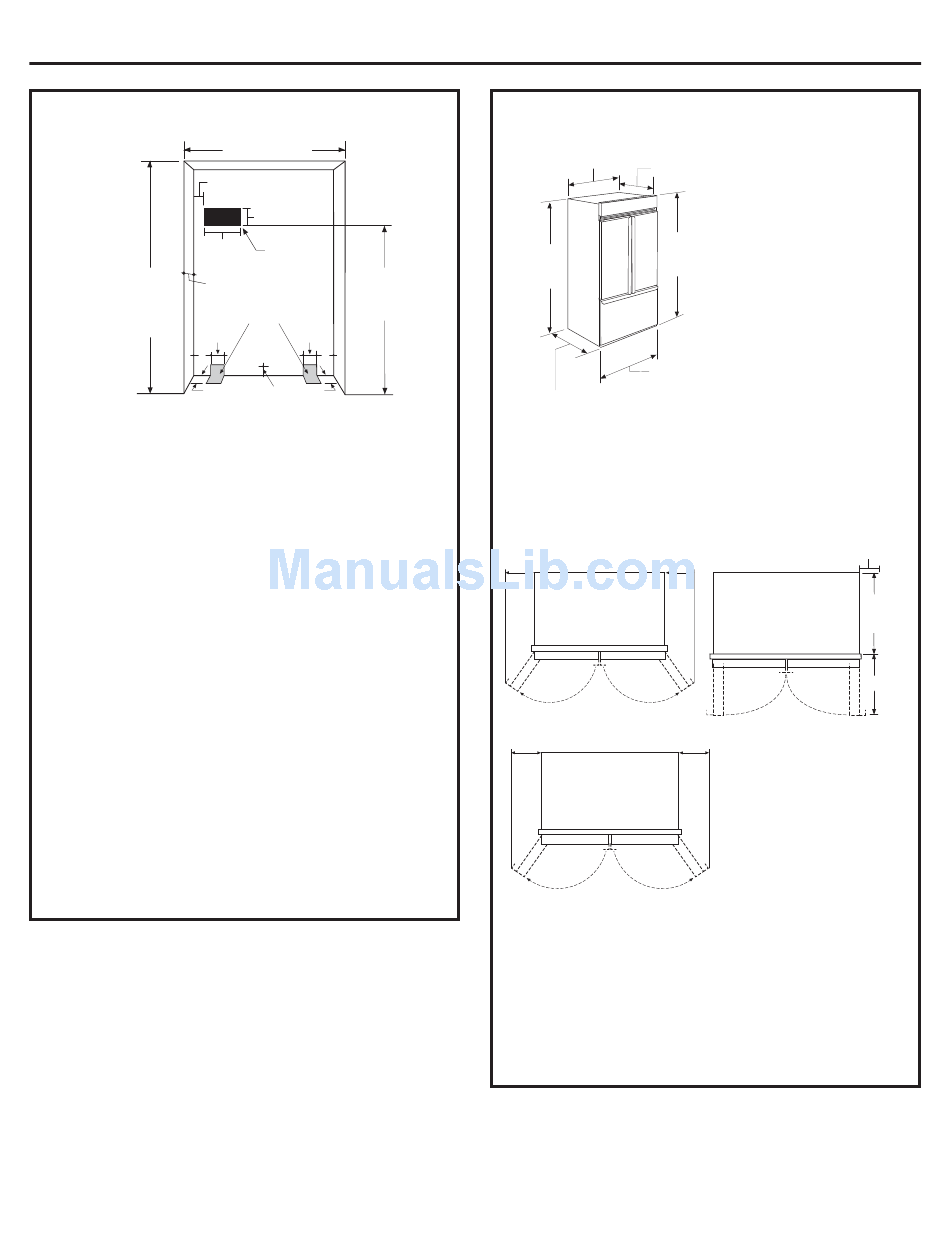

THE INSTALLATION SPACE

Finished Width
The finished
cutout width
2-5/16"
must be
35-1/2".
10"
84-1/2" max
24" Cutout Depth
Finished
Opening
3-1/2"
5"
10"
Water And Electrical Locations
Electrical and water supply must be located as shown.
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond
adjacent cabinetry, depending on your installation.
Allow minimum 1/8" air gap between case back & wall.
Cutout depth beneath a soffit:
When installed beneath a soffit, the soffit cannot exceed
the 24" installation depth shown. The top case trim
overlaps the bottom of the soffit.
Additional Specifications
• A 115 volt 60Hz., 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install
a properly grounded 3-prong electrical receptacle
recessed into the back wall. Electrical must be located
on rear wall as shown.
NOTE: GFI (ground fault interrupter) is not recommended.
• Water line can enter the opening through the floor
or back wall. Route GE SmartConnect
copper tubing between the cold water line and the
water connection location. The tubing should be
long enough to extend to the front of the refrigerator.
Installation of an easily accessible shut-off valve in the
water line is required.
35-1/2"
Wall View
6"
Electrical
Area
75" From
Floor to Bottom
Water Supply of Electrical Area
3-1/2"
5"
10"
3-1/2"
kit or 1/4" O.D.
™

DIMENSIONS AND CLEARANCES

35"
Case Width
*83 1/2"
at
Rear
Depth Including
Handles: 27-1/2"
Product Clearances
These refrigerators are equipped with a 3-position door
stop. The factory set 115° door swing can be adjusted to
90° if clearance to adjacent cabinets or walls is restricted.
8"
Min. to
Wall
115°
115°
12-1/8"
Min. to
Wall
130°
130°
Allow 12-1/8" minimum clearance for a full 130° door
swing.
For a 90° door swing, allow 4" min. clearance to
adjacent wall from cutout. If the 90° door stop position
is used, pan access is maintained, but pan removal is
restricted.
See illustrations pages 10 and 11 to determine door
swing interaction with adjacent cabinets or countertops.
6
25-3/8"
Case Depth
* Shipping height. The
refrigerator can be
adjusted to fit into a
cutout that is 83-1/2
*84" From
"
min. to 84-1/2
Floor to
height. Note that the top
Top Frame
case trim at the front is
"
1/2 higher and will
overlap upper cabinetry
or soffit. Use leveling
legs and wheels for a
"
maximum 1 height
36" Frame to
adjustment.
Frame Width
8"
Min. to
Wall
90° 90°
12-1/8"
Min. to
Wall
"
max.
4" Min. Distance
to Adjacent Wall
from Cutout
23-7/8"
Behind
Frame
18-3/16"
